Page 8-7 TEACHING 8 Board Recognition T eaching 1 1. Press UNLOCK + Recog test . • Ensure that the recognition is performed properly . 12 . Press . T o the next page 4H4C-EEn-DmPtBr-002 4H4C-E-OMA08-A01-02 NOTICE The dis…
Page 8-6
Board Recognition Teaching
8. Press Complete .
9. Press
UNLOCK
+ Next point .
• The screen moves to the next board recogni-
tion mark and the recognition automatically
starts.
10. Press Complete .
• Data are automatically saved.
• When you have selected ABC point at the
board recognition, repeat steps 10 and 11 and
carry out teaching for C point.
To the next page
4H4C-E-OMA08-A01-03

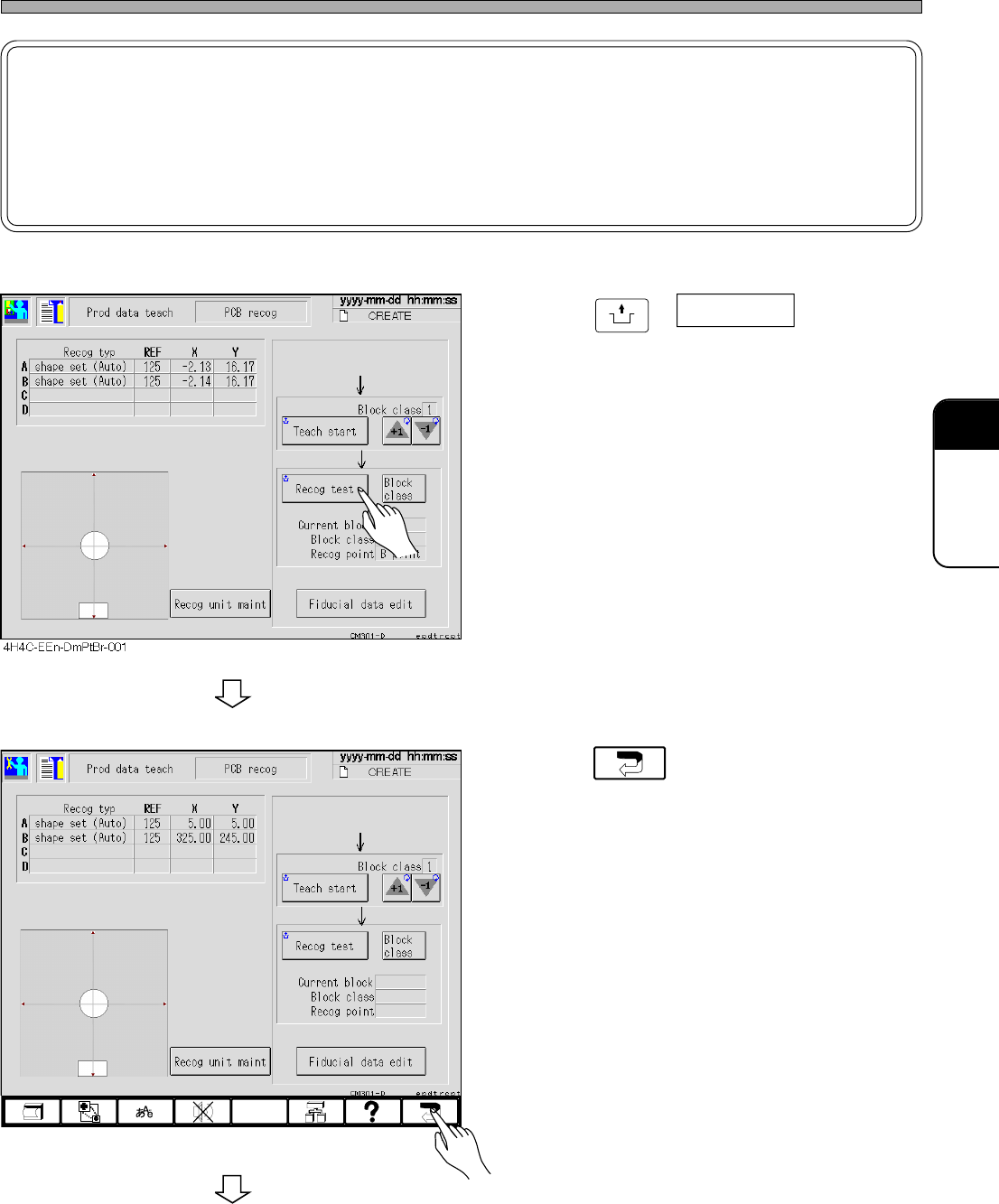

Page 8-7
TEACHING
8
Board Recognition Teaching
11. Press
UNLOCK
+ Recog test .
• Ensure that the recognition is performed
properly.
12. Press .
To the next page
4H4C-EEn-DmPtBr-002
4H4C-E-OMA08-A01-02
NOTICE
The displayed value of X and Y is the reference data.
Even if the board recognition data is modified by using this value, the mount
accuracy worsens as the correlation between the board recognition data and the
mount coordinate data is not guaranteed.
Page 8-8
Board Recognition Teaching
13. Press
UNLOCK
+ Yes .
• The board is discharged and teaching ends.
4H4C-E-OMA08-A01-02
