Peeling Section Every week Cleaning Notice If the cover tape is set while it has any debris of cover tape on it, then it might cause suppressor deformation or pick-up error . Lift the suppressor and clean it with a Cotto…

7.4.2 Suppressor Section

Upper Surface of Suppressor

Every Day Cleaning

Remove dirt and dust with a vacuum cleaner

and wipe the surface clean with a rag.

Remove dust such as paper fiber accumulated

in the tape peeling section, using a toothbrush.

Fig. G2

Chute

Every week Cleaning

Lift the suppressor and clean it with a rag

soaked in alcohol.

(a) When the chute is cleaned,

remove the Magnetic Plate.

(b)

Notice

If the tape is set with any foreign

substance attached, it might

cause a suppressor deformation

or pick-up error.

Fig. G3

Suppressor (Rear Side)

Every week Cleaning

Notice

Lift the suppressor and clean it with rag soaked

in alcohol or cotton swab.

If the tape is set with any foreign

substance attached, it might cause

a suppressor deformation or

pick-up error.

Fig. G4

1209-001

7.4 Maintenance Spots

OM-1743

7-6

Peeling Section

Every week Cleaning

Notice

If the cover tape is set while it has

any debris of cover tape on it,

then it might cause suppressor

deformation or pick-up error.

Lift the suppressor and clean it with a Cotton

swab or toothbrush.

Fig. G5

Pick-up Position

Every Three Months Check, Adjustment

Check the pick-up position, using the feeder adjusting jig

JG-0209 (Purchase separately).

If the pick-up position is not correct, adjust it.

Fig. G6

1209-001

7.4 Maintenance Spots

OM-1743

7-7

7.4.3 Cover Tape Take-up Section

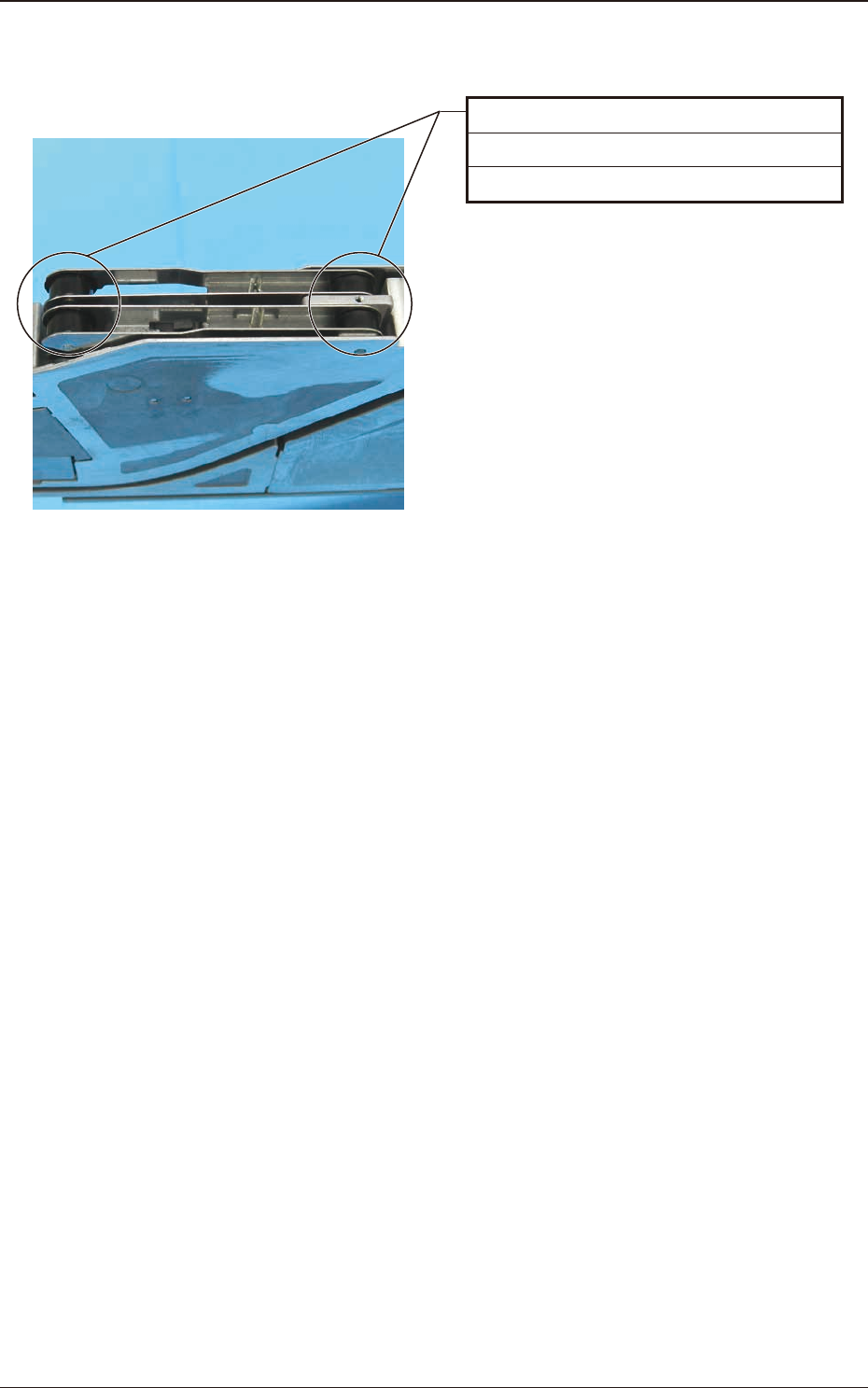

Tape Guide Roller

Every week Cleaning

Clean it with a rag soaked in alcohol.

Fig. G7
