1.2 Name and Function of Each Section
It is described in GD-38080 (8 mm Dual Tape Feeder)

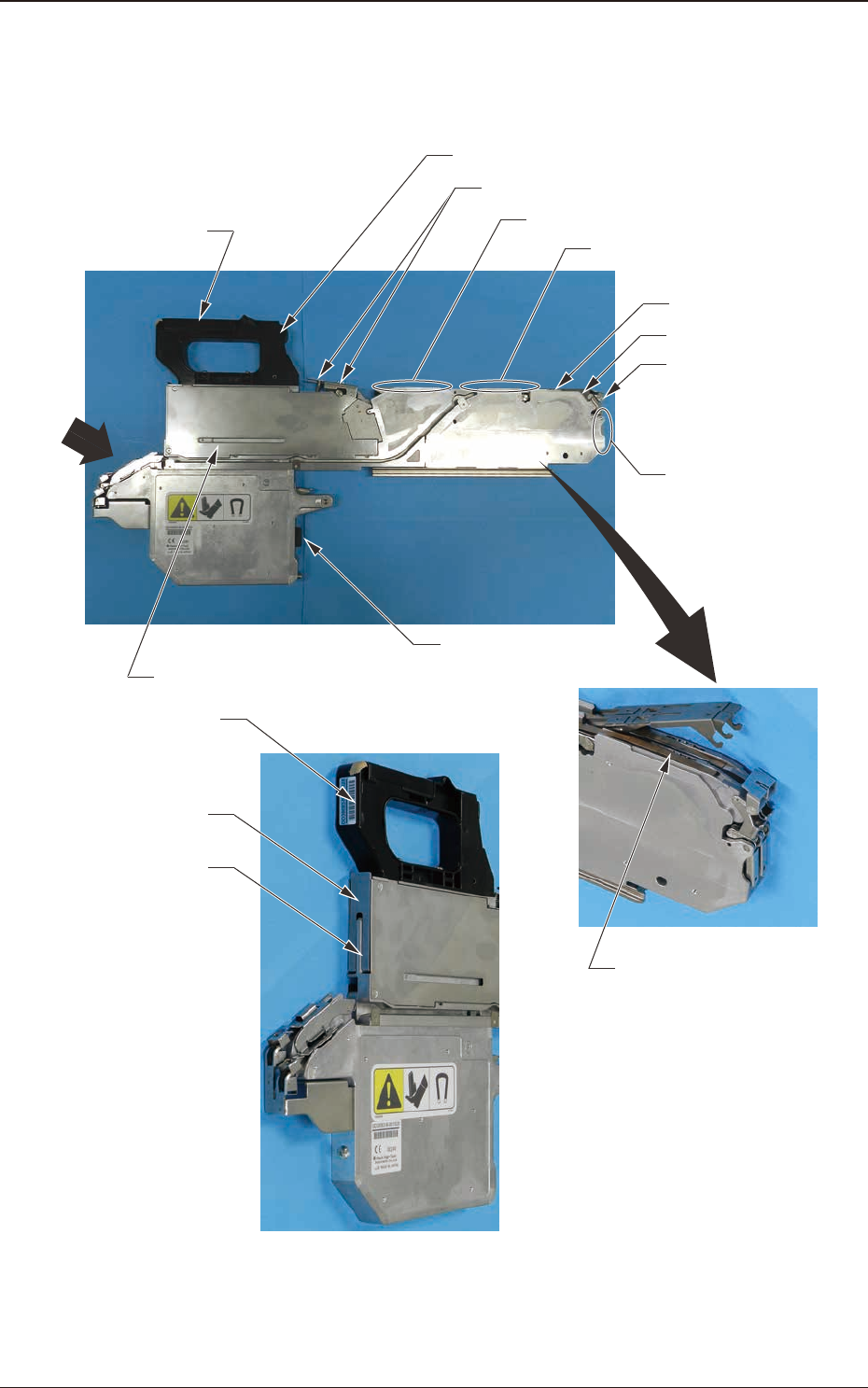

View
[13] Cutter
[12] Cover Tape
Outlet Cover
[11] Barcode Label
[1] Suppressor
[4] Sprocket
[7] Cover Tape Tale-up Release Lever
[8] Clamp Release Lever
[9] Operation Panel
[14] Magnetic Plate
[6] Cover Tape Tension Lever
[5] Chute
[3] Front Hook
[2] Tape Outlet Guide
[15] Magnetic Plate Housing Section
[10] Connector
Fig. A2
1209-001
1.2 Name and Function of Each Section
OM-1743
1-3
1209-001
[1] Suppressor
Feeding of the tape and releasing of the cover tape are performed smoothly
by pressing the cover tape against the chute.
During the operation, take care so that no foreign substance (chip component
or debris) is attached.
[2] Tape Outlet Guide
This guide discharges the tape.
[3] Front Hook
This hook holds the suppressor.
[4] Sprocket
This engages with the sprocket hole on the tape to feed the specied pitches
of the tape.
[5] Chute
This is the tape running surface close to pick-up position.
During the operation, take care so that no foreign substance (chip component
or debris) is attached.
[6] Cover Tape Tension Lever
Guides the released cover tape to the cover tape housing section.
[7] Cover Tape Tale-up Release Lever
This button is pressed when the cover tape is set to or taken from the cover
tape housing section.
[8] Clamp Release Lever
This button is pressed when the tape feeder is removed from the bank feeder
change cart.
[9] Operation Panel
Shows the various settings or status of the tape feeder.
Reference
Refer to "4. Operation Panel" for details.
[10] Connector
This connector conducts electricity and electrical signals.
[11] Barcode Label
Barcodes are printed for tape feeder model, serial No. and ACV system.
1.2 Name and Function of Each Section
OM-1743
1-4
1209-001
[12] Cover Tape Outlet Cover
This is the cover on the cover tape housing section.
This cover is opened when the cover tape is taken out from the cover tape
housing section.
[13] Cutter
This cutter cuts off the cover tape taken from the cover tape housing section.
[14] Magnetic Plate
It is attached to the chute section.
Using magnetic force, the component pick-up operation is stabilized.
[15] Magnetic Plate Housing Section
When the Magnetic Plate is not to be used, it is stored in this housing space.
