9.9 Style and Dimensions of Reel 2.0 ± 0.5 13.0 ± 0.2 21 ± 0.8 R 1.0 N A W 1 W 2 Unit : mm Fig. I8 T able I2 Classication Symbol of Reel Applicable T ape Width A N W 1 W 2 R 08 □ 8 178 to 382 60 or more 8.4 +2 0 14.4 or…
9.6 Strength of Carrier and Cover Tapes
Carrier Tape
When a tensile force of 10 N (1.02 kgf) is applied in the direction of unreeling
the tape, the tape shall withstand this force.
Cover Tape
When a tensile force of 10 N (1.02 kgf) is applied to the tape, the tape shall
withstand this force.
9.7 Peel Strength of Cover Tape
The direction of the cover tape peeling force should be maintained at an angle of
165 to 180 degrees.
When the cover tape is peeled off at the speed of 300 mm/min ± 10 mm/min, the
cover tape peeling force should be 0.1 to 0.7 N (10.2 to 71.4 gf).
Rectangle Hole Punched Carrier Type Taping Embossed Carrier Type Taping
Cover Tape
Direction of Peel off
Rectangle Hole
Punched Carrier Tape
Bottom Cover Tape
Direction of Unreeling
165° to 180°
Cover Tape
Direction of Peel off
Direction of Unreeling
Embossed Carrier Tape
165° to 180°
Fig. I5 Angle in Peel Test Fig. I6 Angle in Peel Test
9.8 Minimum Bending Radius
1209-001
Fig. I7 Minimum Bending Radius
Width of Tape and Minimum Bending Radius
Table I1
Width of Tape
(mm)
Minimum Bending
Radius (mm)
8 30
When the tape is bent with the minimum bending radius, the tape shall not be
damaged, the components shall maintain their position and direction in the tape
and shall be free from abnormalities such as damage.
Minimum Bending
Radius (R)
9.6 Strength of Carrier and Cover Tapes
OM-1743
9-3
9.9 Style and Dimensions of Reel
2.0 ± 0.5
13.0 ± 0.2
21 ± 0.8
R 1.0
N A
W1
W2
Unit : mm
Fig. I8
Table I2
Classication
Symbol of Reel
Applicable
Tape Width
A N W
1
W
2
R 08 □
8
178 to 382 60 or more 8.4
+2
0
14.4 or less
Unit : mm
Note
(a) An English capital letter given below which corresponds to nominal value
of dimension A is entered into □ in classication symbol of reel.
A:178 B:180 C:254 D:330 E:360 F:370 G:382
(b) Dimension W
2
means overall thickness of the reel.
1209-001
9.9 Style and Dimensions of Reel
OM-1743
9-4
1209-001 A(M804WW---3001)
10. Electrical Circuit Diagrams

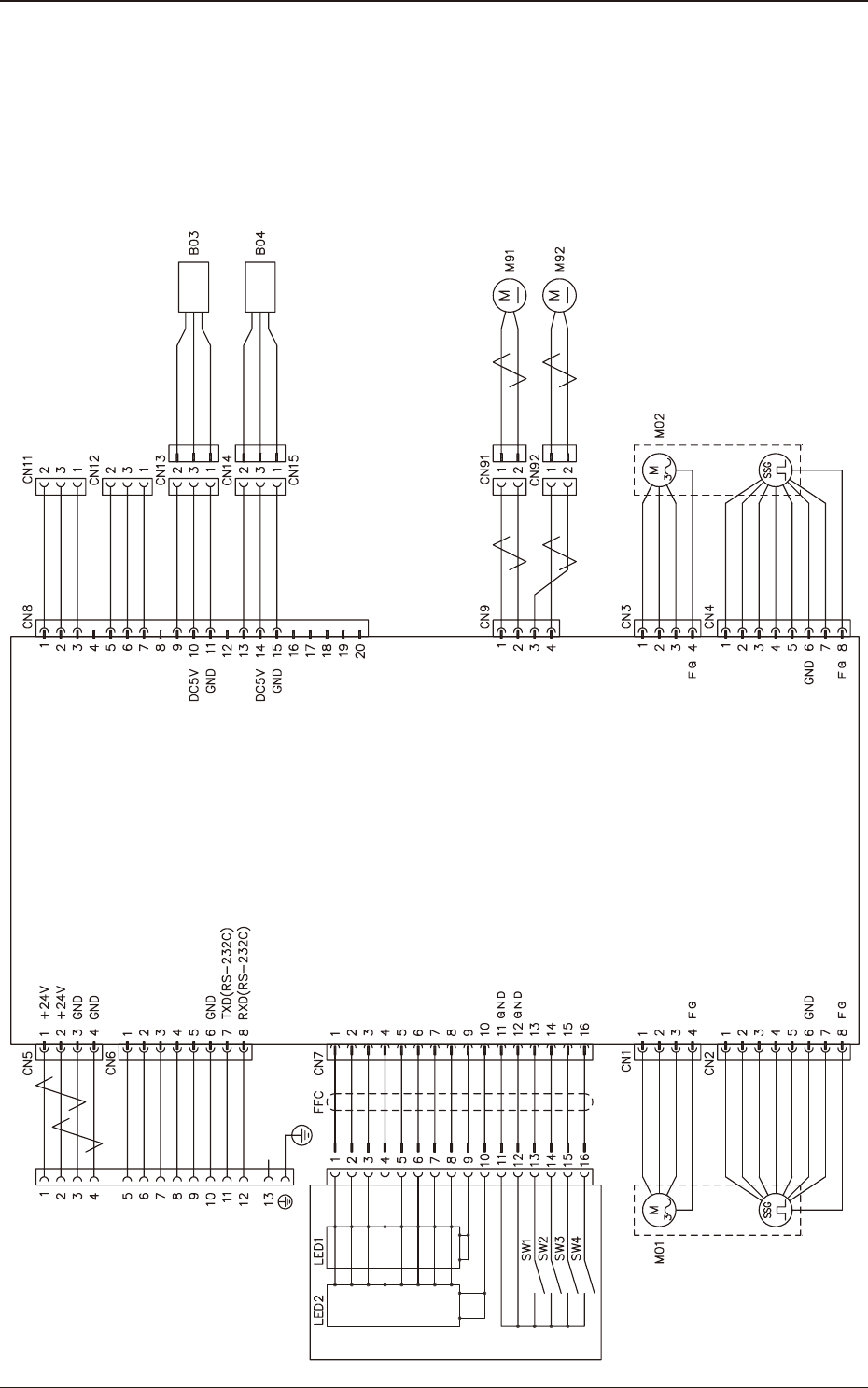

10.1 Feeder Control Circuit Diagram
(GT-38080)
Drawer Connector
Connection Confirmation Signal
Lane 1 Feed Command
Lane 2 Feed Command
READY Signal
Connection Confirmation Signal
Lane 2 Tension Detection Sensor
Lane 1 Tension Detection Sensor
White
Brown
Blue
White
Brown
Blue
Blue
Black
Blue
Black
Blue
Black
Blue
Black
Blue
Black
Blue
Blue
Black
Blue
Blue
Black
Blue
Blue
Black
Blue
Operation Panel
Cover Tape Take-up Key
7-Segment LED is turned ON (a)
7-Segment LED is turned ON (b)
7-Segment LED is turned ON (c)
7-Segment LED is turned ON (d)
7-Segment LED is turned ON (e)
7-Segment LED is turned ON (f)
7-Segment LED is turned ON (g)
7-Segment LED is turned ON (D.P)
For Dynamic Light ON (first figure)
For Dynamic Light ON (second figure)
Lane Selection Key
Forward Key
Backward Key
DC Motor No. 2 Power Supply
DC Motor No. 1
DC Motor No. 1 Power Supply
DC Motor No. 2
Lane 1 Take-up Motor
Lane 2 Take-up Motor
Lane 1 Servo Motor
Motor No. 1 Phase W
Motor No. 1 Phase U
Motor No. 1 Phase V
Reserve
Encoder No. 1 Phase A
/Encoder No. 1 Phase A
Encoder No. 1 Phase B
Power Supply (DC5V)
/Encoder No. 1 Phase B
Motor No. 2 Phase W
Motor No. 2 Phase U
Motor No. 2 Phase V
Lane 2 Servo Motor
Reserve
Encoder No. 2 Phase A
/Encoder No. 2 Phase A
Encoder No. 2 Phase B
/Encoder No. 2 Phase B
Power Supply (DC5V)
Feeder Control Amplifier
10. Electrical Circuit Diagrams
OM-1743
10-1
