6.3 Indication of "Alarm for Splicing" on the Machine Information Window 6.3.1 Characteristics of the T ape Feeders applicable to the Splicing Operation Fig. F4 "Alarm for Splicing" Display Procedure …
1209-001
(4) Set the timing to indicate the "Splicing Warning".
•
Specied with [Tape Length (mm)]
Note
The "Splicing Warning" is not indicated with a remaining tape length of
900 mm or less.
(4.1) Select "Tape Length" in the Warning Mode "90 mm + Condition"
text box.
(4.2) Press the [Count] button.
(The "Count" input window will appear.)

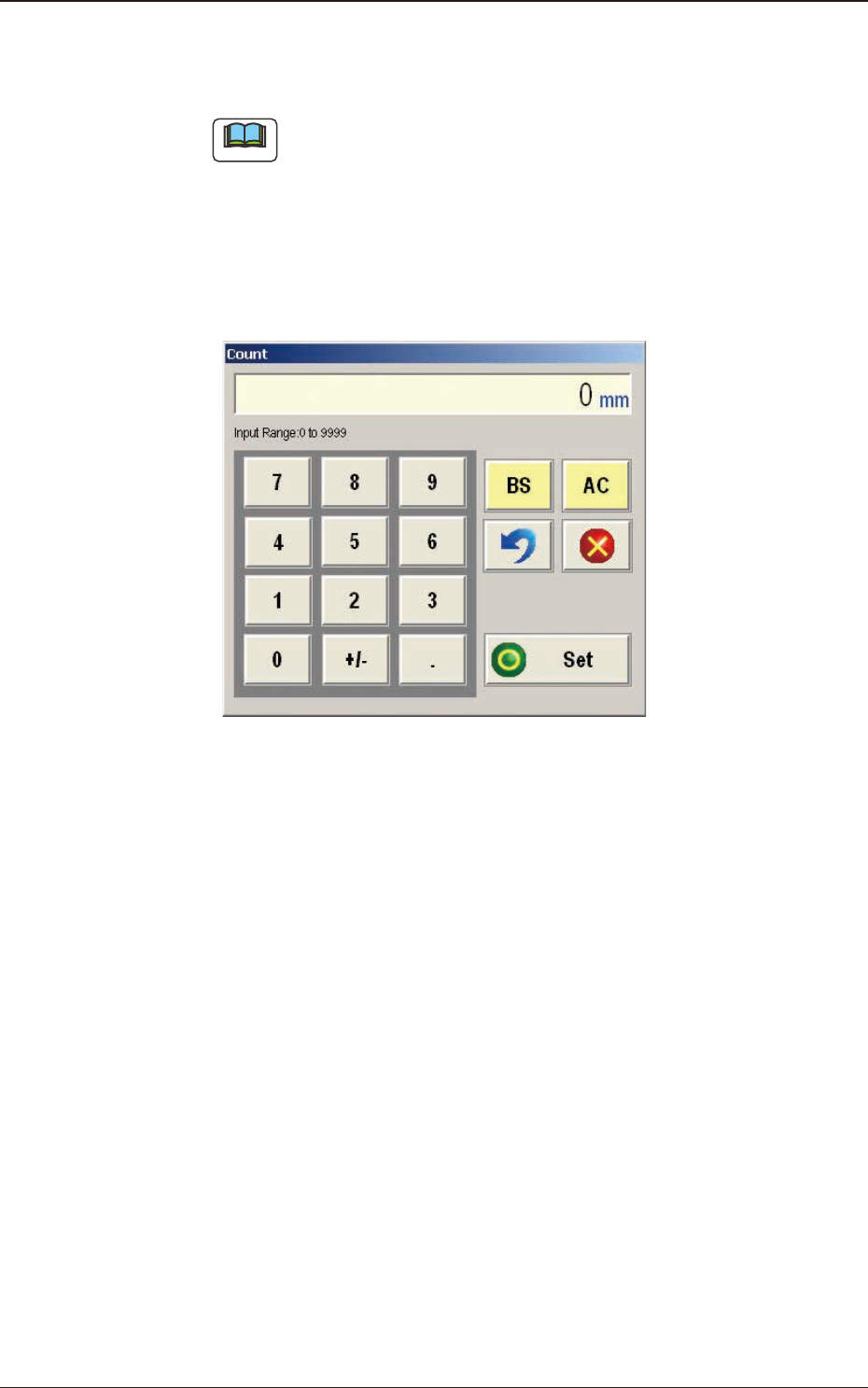

FF3 "Count" Input Window
(4.3) Enter the tape length.
Input Range
: 0 to 9999 mm
(4.4) Press the [Set] button to dene the entered values.
•
Specied with [PCB Count]
(4.1) Select "PCB Count" in the Warning Mode "90 mm + Condition" text
box.
(4.2) Press the [Count] button.
(The "Count" input window will appear.)
(4.3) Enter the number of PCBs to be produced.
Input Range
: 0 to 9999 PCBs
(4.4) Press the [Set] button to dened the entered values.
(5) Press the [Apply] button.
(The entered values will be applied.
When the [Cancel] button is pressed, the set values are cancelled.)
6.2. Setting in the Main Machine before Splicing Operation
OM-1743
6-3
6.3 Indication of "Alarm for Splicing" on the Machine
Information Window
6.3.1 Characteristics of the Tape Feeders applicable to the Splicing
Operation

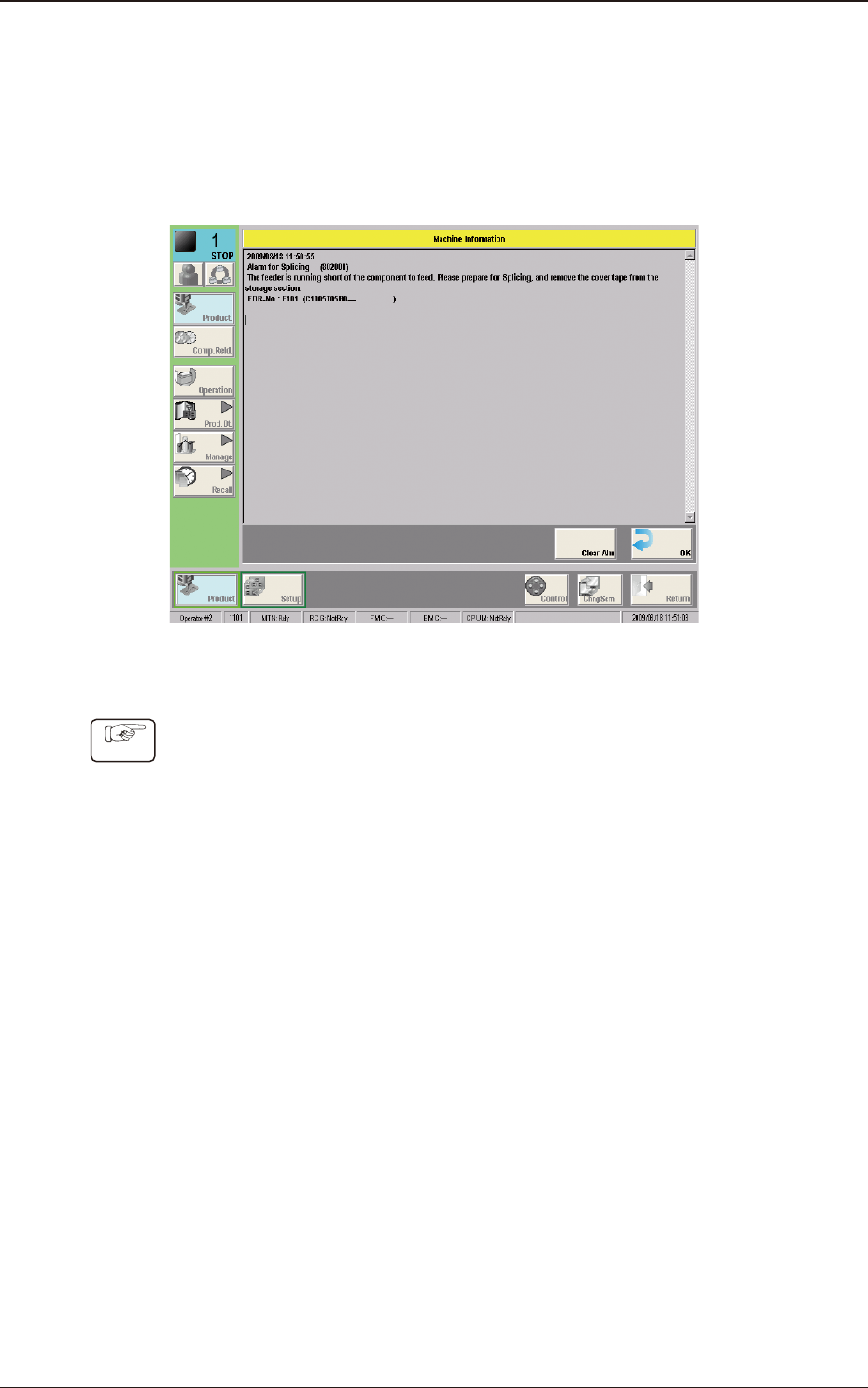

Fig. F4 "Alarm for Splicing" Display
Procedure
(1) Conrm the contents on the machine information window and press the [OK]
button.
(The "Machine Information" window will be closed.)
1209-001
6.3 Indication of "Alarm for Splicing" on the Machine Information Window
OM-1743
6-4
(2) Press the [Comp. Reld.] button in the AUTO. OPN. submenu window.
(The "Comp. Reload" window will appear.)

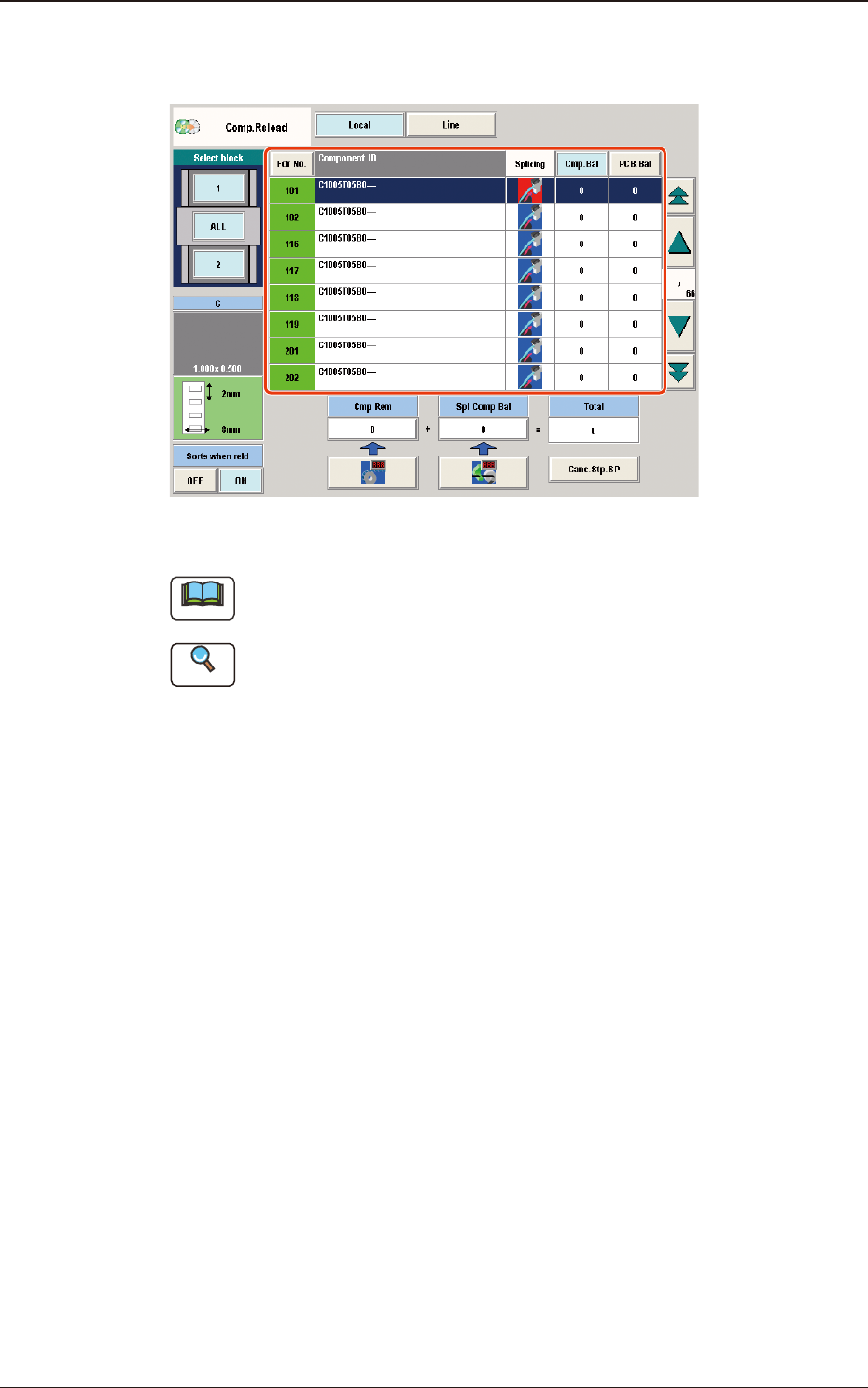

Fig. F5 Example of "Comp. Reload" Window
Note
The displayed contents will differ depending on selection of the options.
Reference
Refer to SIGMA-F8 main machine instruction manual, "Volume 2, Chapter 1, 3.
Comp. Reload" for details.
(3) Conrm the tape feeder where the splicing operation is required.
(3.1) Press each block button in the "Select block" section or the [ALL]
button.
(The feeder data items will be displayed in the Feeder List.)
(3.2) Press the appropriate Fdr. No. and conrm the contents in the [4]
Component type.
1209-001
6.3 Indication of "Alarm for Splicing" on the Machine Information Window
OM-1743
6-5
