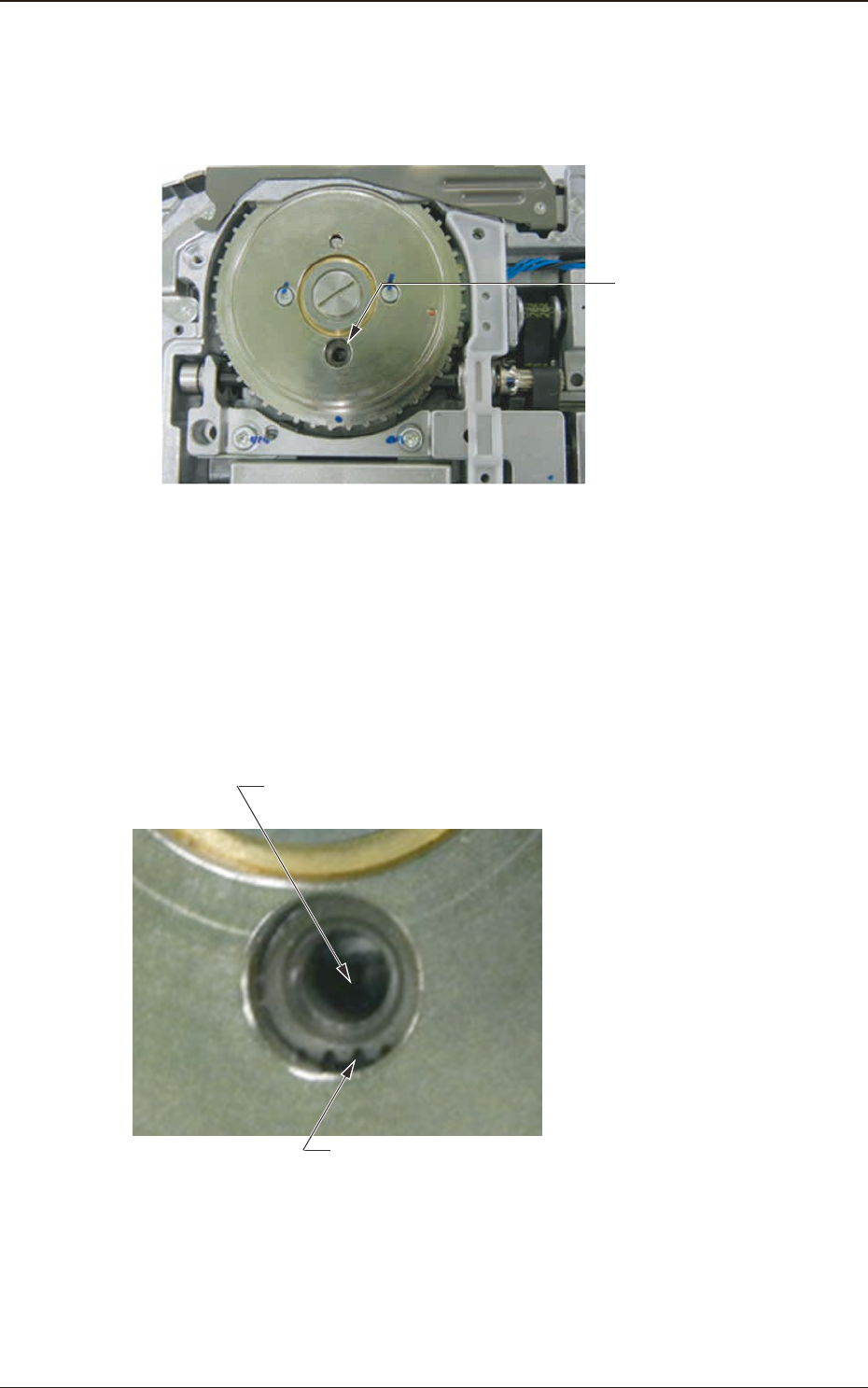

(3) Removing the oiling cap
Remove the oiling cap to open the oiling port.
Because the cap has been screwed in to x, turn it with a slotted screwdriver
to remove.
Oiling Port
Fig. G31
(4) Aligning the right sprocket position
Turn the right timing pulley so that the oil section of right sprocket locates
the same position as the oil section of left sprocket while seeing the oil
section of left sprocket.
If it is difcult to see the oil section, use a light or insert the lubricating jig to
check the oil section of right sprocket.
Oiling Section on the Right Sprocket Driving Gear.
(At the back of the screw hole)
Oiling Section on the Left Sprocket Driving Gear.
Fig. G32 Oiling Port Enlarged View
1901-005
7.5 Maintenance Method
OM-1743
7-22

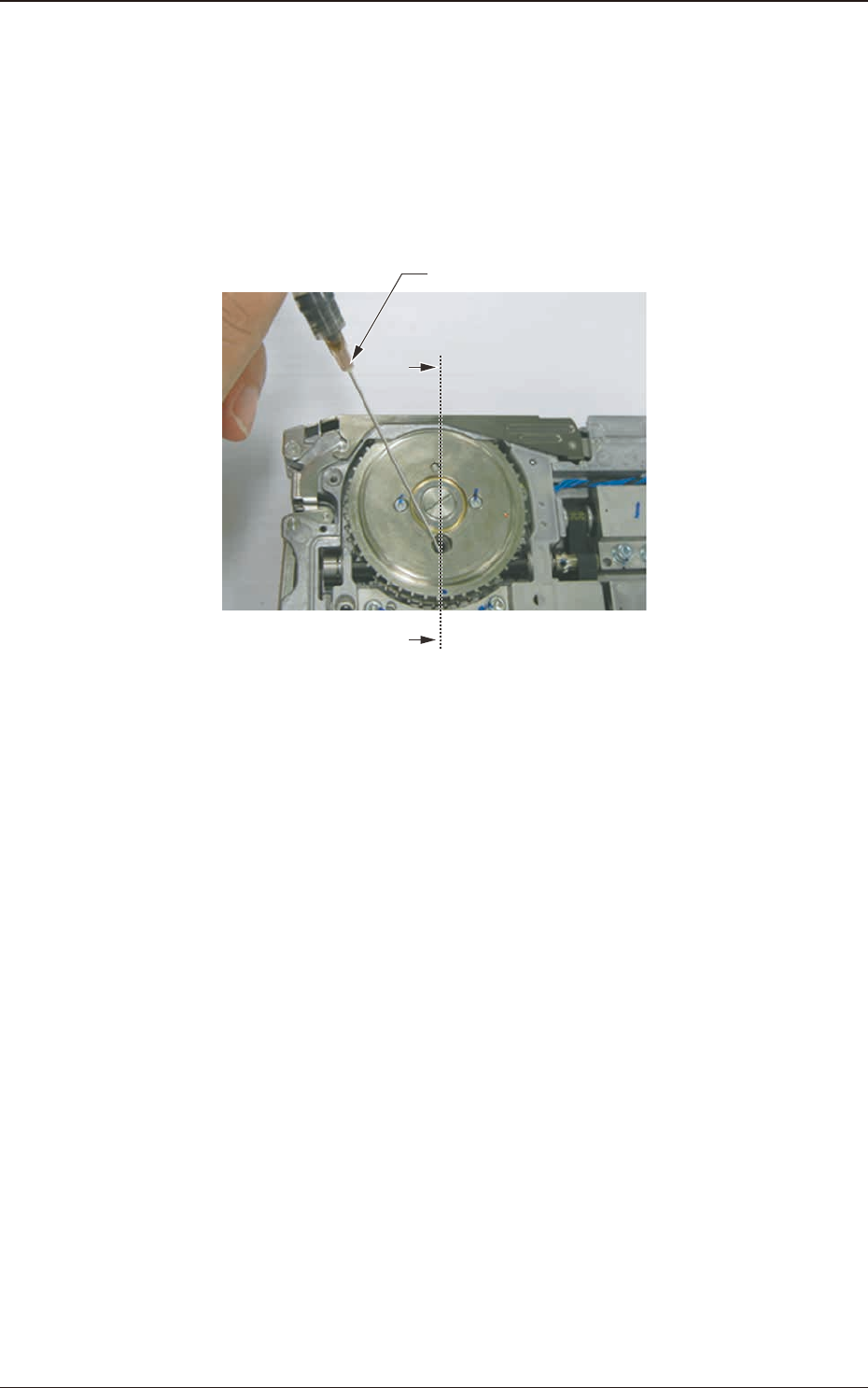

(5) Oiling Work
Using the specially designed oiling jig, apply grease onto the left and right
gears.
The amount of grease to be applied, is about 0.2ml each for right and left
gears (as much as 2 divisions of the jig scale).
When grease has been applied on the left the right gears, turn the sprocket to
smooth the grease entire on the gears.
Oiling Jig
A
A`
Fig. G33
1209-001
7.5 Maintenance Method
OM-1743
7-23
•

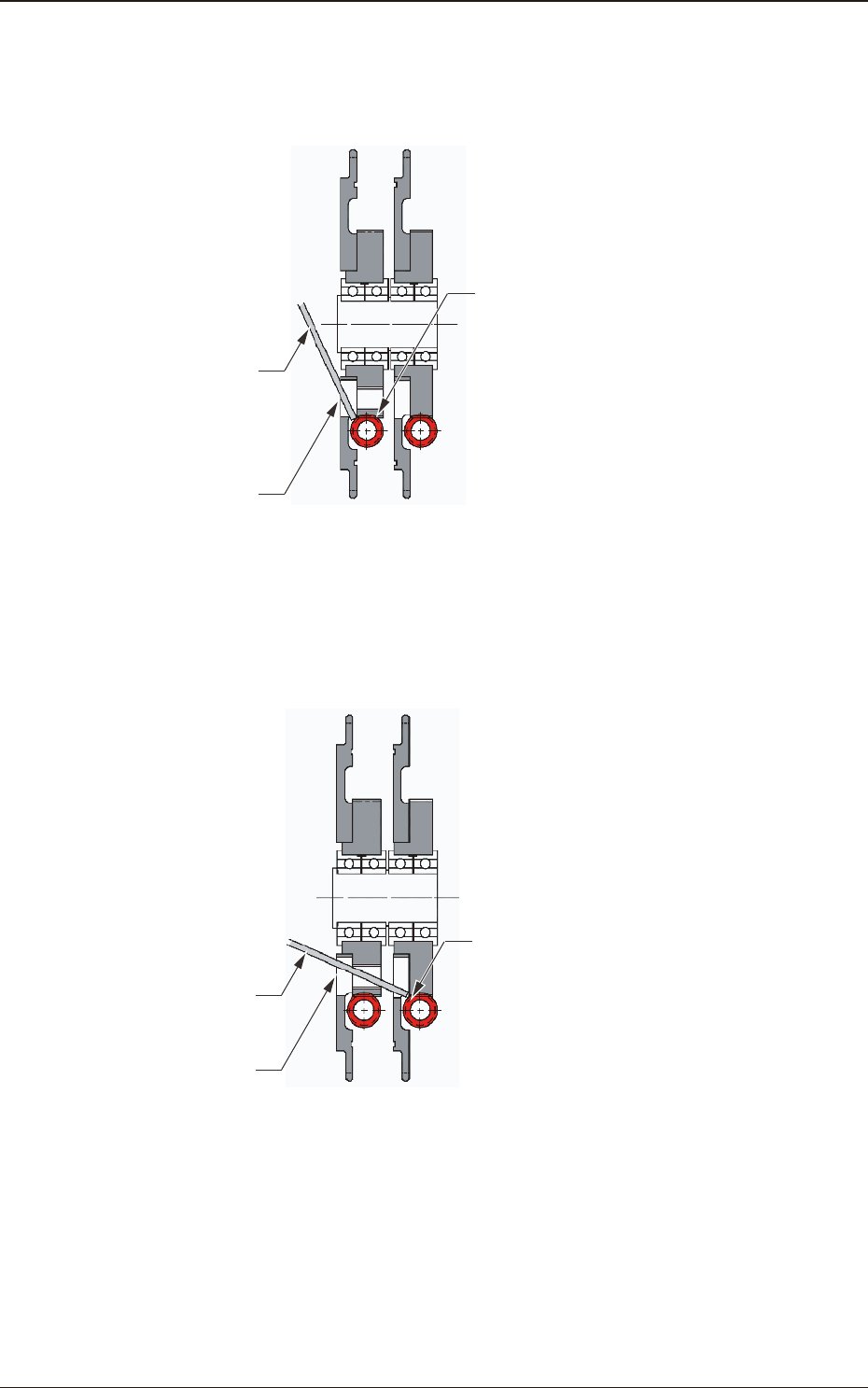

Left Sprocket Driving Gear Oiling Procedure
Insert the tip of the oiling jig into the oiling port to apply grease to the driving
gear located in the sprocket rear (refer to the sectional view).
Oiling Jig
Oiling Port
Left Sprocket Driving Gear
Fig. G34 Sprocket Unit Sectional View (A – A’)
•
Right Sprocket Gear Oiling Procedure
Insert the tip of the oiling jig into the oiling port to apply grease to the right
sprocket driving gear located at the back of the screw hole on the left sprocket.
Oiling Jig
Oiling Port
Right Sprocket Driving Gear
Fig. G35 Sprocket Unit Sectional View (A – A’)
(5) When the oiling is completed, fasten the oiling cap securely. When the side
cover is closed, the procedure is completed.
