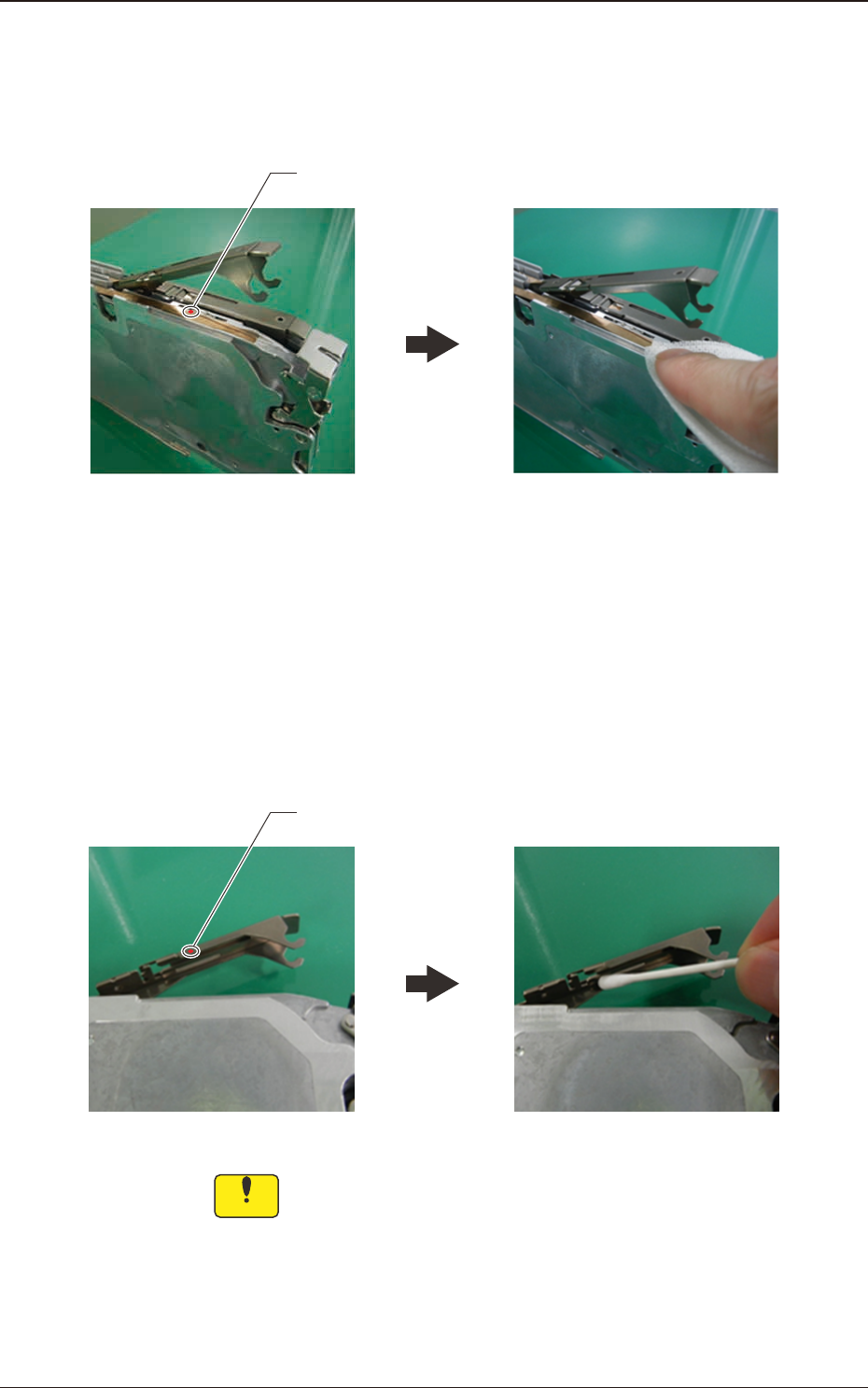

(2) Make sure there is no foreign substance (chip component or dust) on the

chute surface.

If there is any foreign substance on the chute surface, then remove it, using a

rag or air-blow.

Chip Component

Fig. B3

When the Magnetic Plate is used, clean it, because a component might be

attached to the magnetic plate.

(3) Make sure there is no foreign substance on the rear surface of the suppressor.

It is very easy for foreign substances to enter the corner section. Therefore,

check it carefully.

If any foreign substance, etc., is attached to the rear surface of the suppressor,

remove it with air-blow, tweezers, or thin bar.

Chip Component

Fig. B4

Notice

If the taping component is mounted with any foreign substance

attached, the suppresser might be deformed or a pick-up error

occur.

Therefore, clean it.

1209-001

2.1 Attachment of Paper or Embossed Tape

OM-1743

2-2

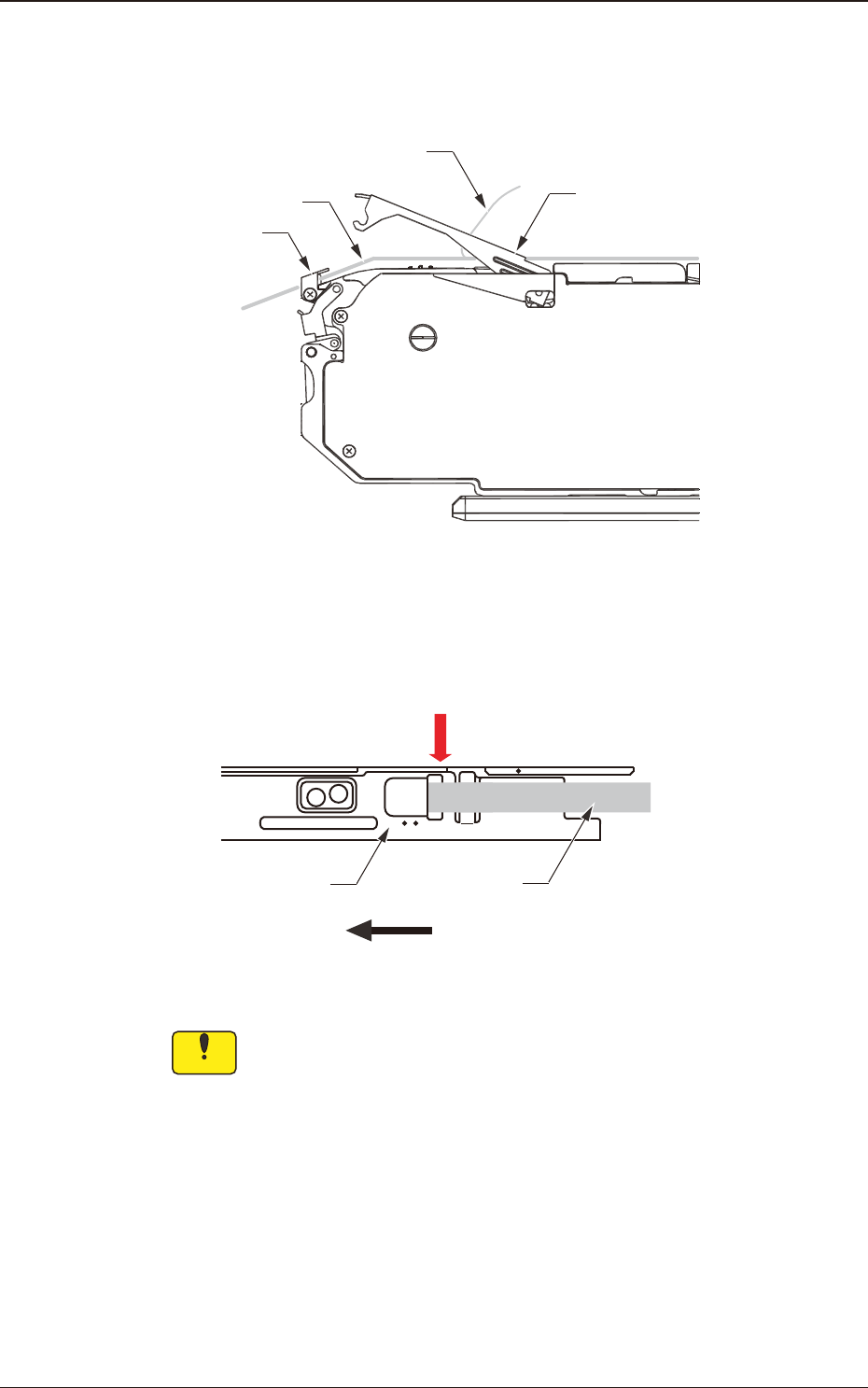

(4) Set the tape along the groove.

Tape

Fig. B5

Notice

(a) After removing the adhesive tape xing the cover tape, set the

tape.

(b) Set the tape along the groove after inserting the tape into the

guide of the joint detection unit.

Reference

Refer to "2.5 Joint Detection Unit" for details.

1305-003

2.1 Attachment of Paper or Embossed Tape

OM-1743

2-3

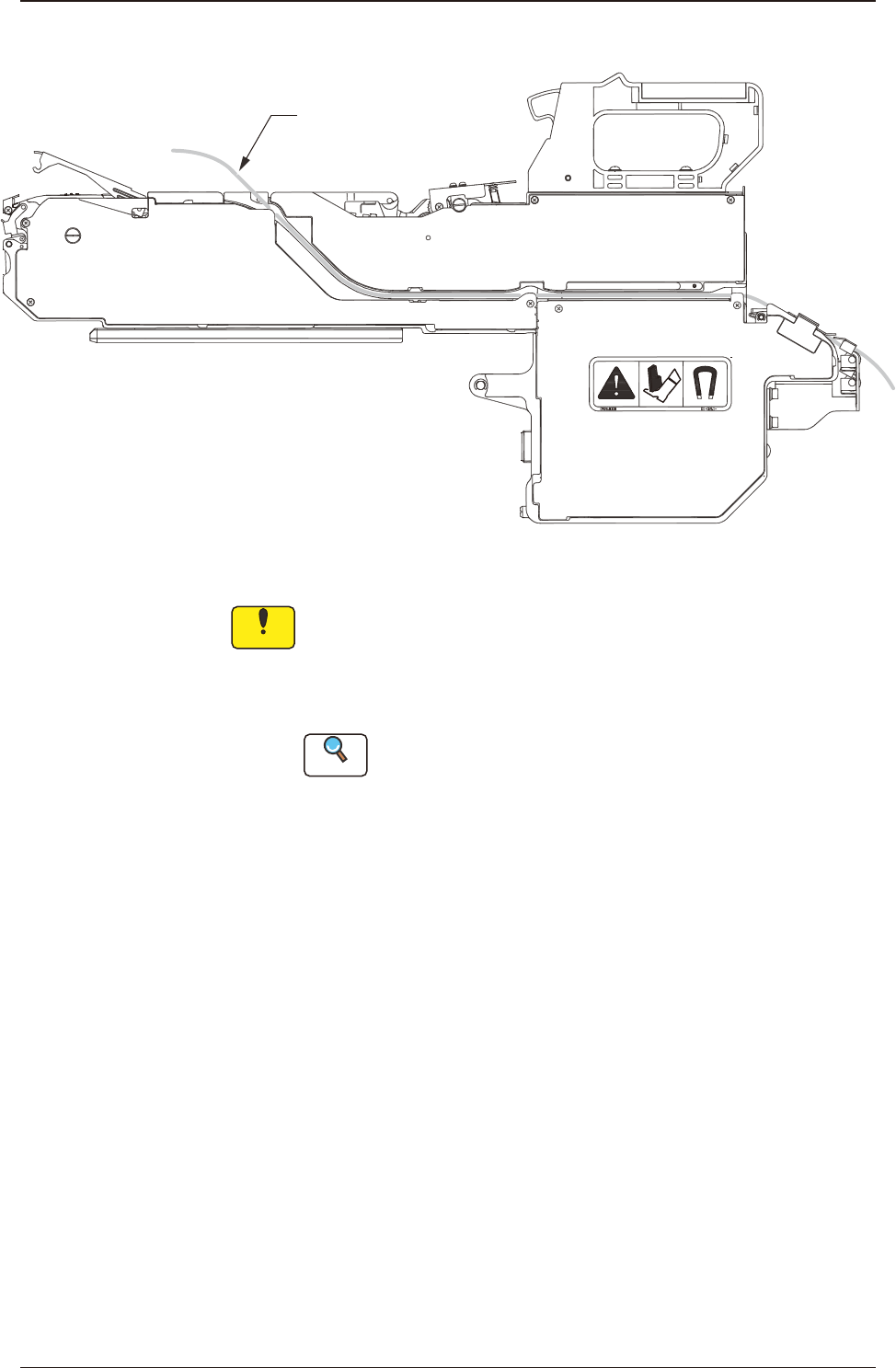

(5) Insert the tape into the tape outlet guide.

(This work is to be performed only for the dual tape feeder with 8 mm

width.)

Cover Tape

Suppressor Peeling

Section

Carrier Tape

Tape Outlet Guide

Fig. B6

(6) Pass the cover tape through the slit in the peeling section.

Cover Tape

Direction of Feed

Suppressor

Through

Fig. B7

Notice

Do not forcibly pull the cover tape.

1305-003

2.1 Attachment of Paper or Embossed Tape

OM-1743
