2.2 Cover Tape Tension Loosening Procedure
In the case that there is any joint of the splicing tapes in the cover tape take-up
route and the cover tape is tensed for a long time, the joint of the splicing tapes
deviates and the cover tape easily peels off. In such cases, loosen the cover tape
tension using the following procedure.
(1) Hold the roller section on the tension lever.
(2) Press the take-up releasing lever and return the tape.
(3) When the tape is begins to return,
return the tension lever.
Fig. B14
Procedure

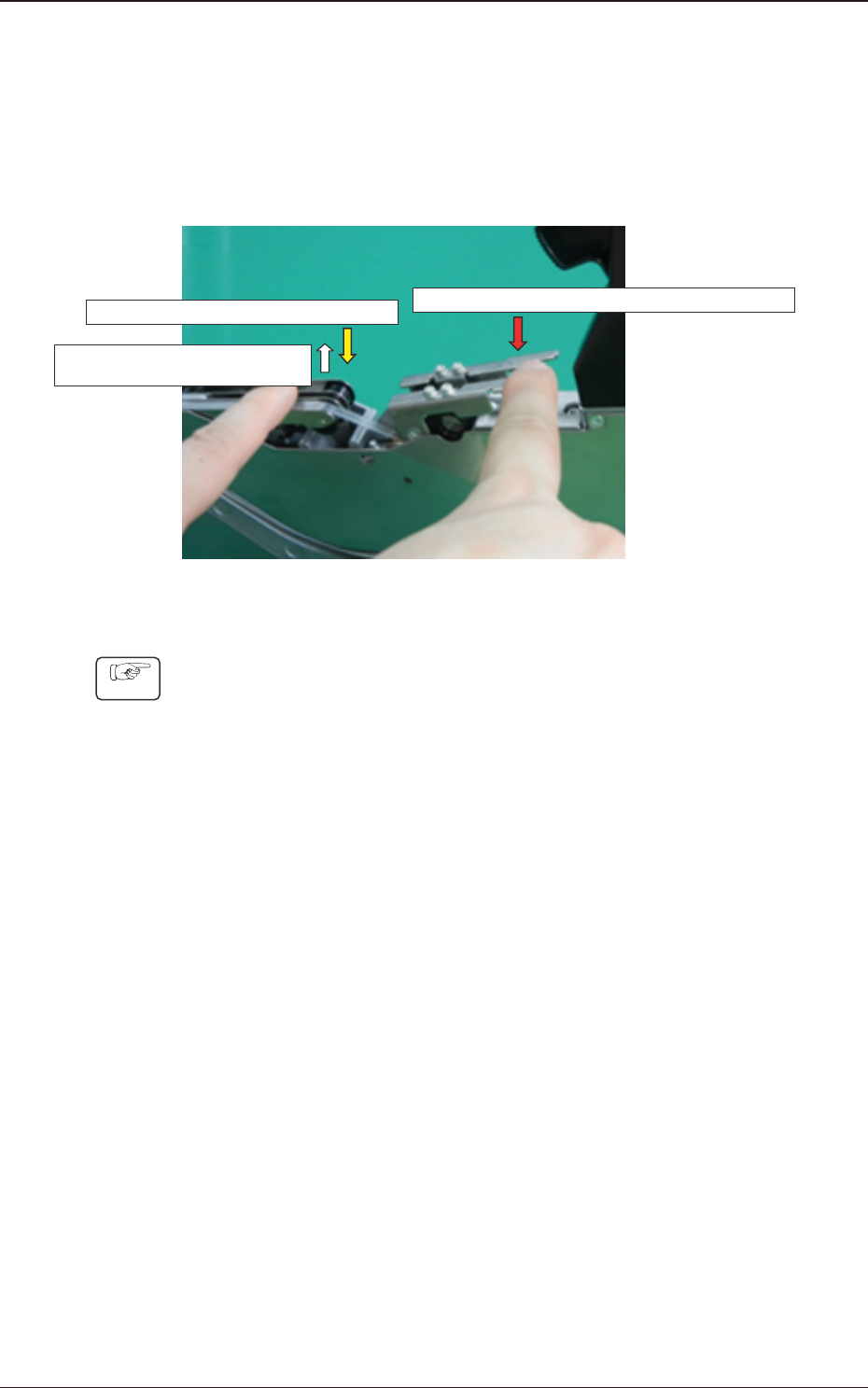

(1) Hold the roller section (on the rear side) of the tension lever lightly from the
upper direction with your nger.
(2) Press down the take-up releasing lever and return the taken up cover tape.
(3) Return the stopper of the tension lever so that the cover tape is not loosened
too much, and return the cover tape.
2.2 Cover Tape Tension Loosening Procedure
OM-1743
2-11
1209-001
2.2.1 Check and Points after Cover Tape Tension Loosening
Check the following items so that the cover tape is not loosened too much.
•
Tension Lever Position Check
After loosening the cover tape tension, make sure that the tension lever angle is
horizontal.
After Tension
Loosening Work
Status where the cover tape is tensed
Status where the cover tape tension is loosened
Fig.B15
•

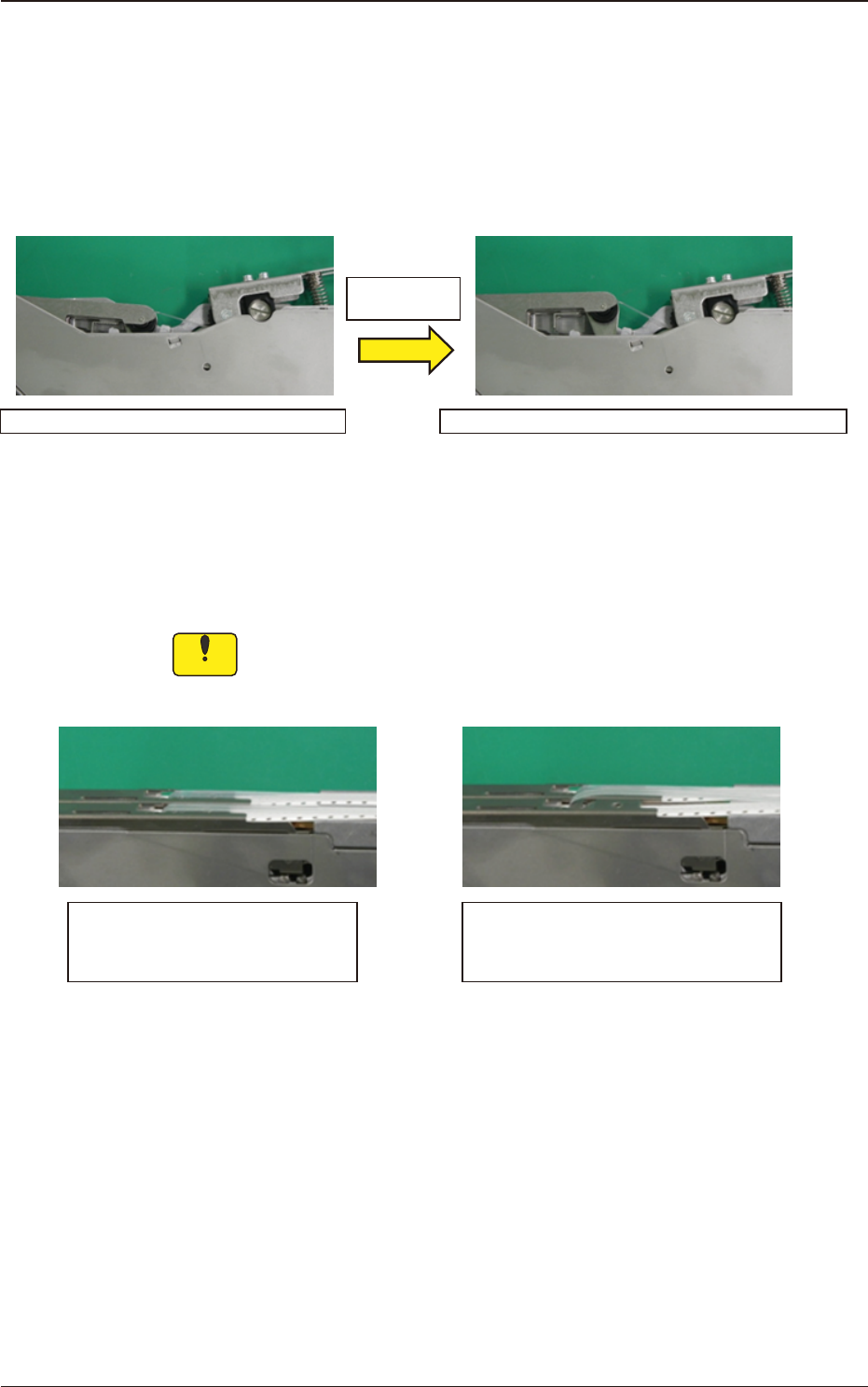

Cover Tape Status Check on the Suppressor Upper Side
Make sure that the cover tape does not rise over the suppressor upper side due
to being too loose.
Notice
In the case that the tape feeder is attached to the machine body with the
cover tape too loose, the cover tape might contact the head and cause
an operation error.
OK Status :
The cover tape does not rise after
the tension is loosened.
NG Status :
The cover tape rises because the
tension has been loosened too much.
Fig. B16
2.2 Cover Tape Tension Loosening Procedure
OM-1743
2-12
2.3 Detachment of Paper or Embossed Tape
Procedure

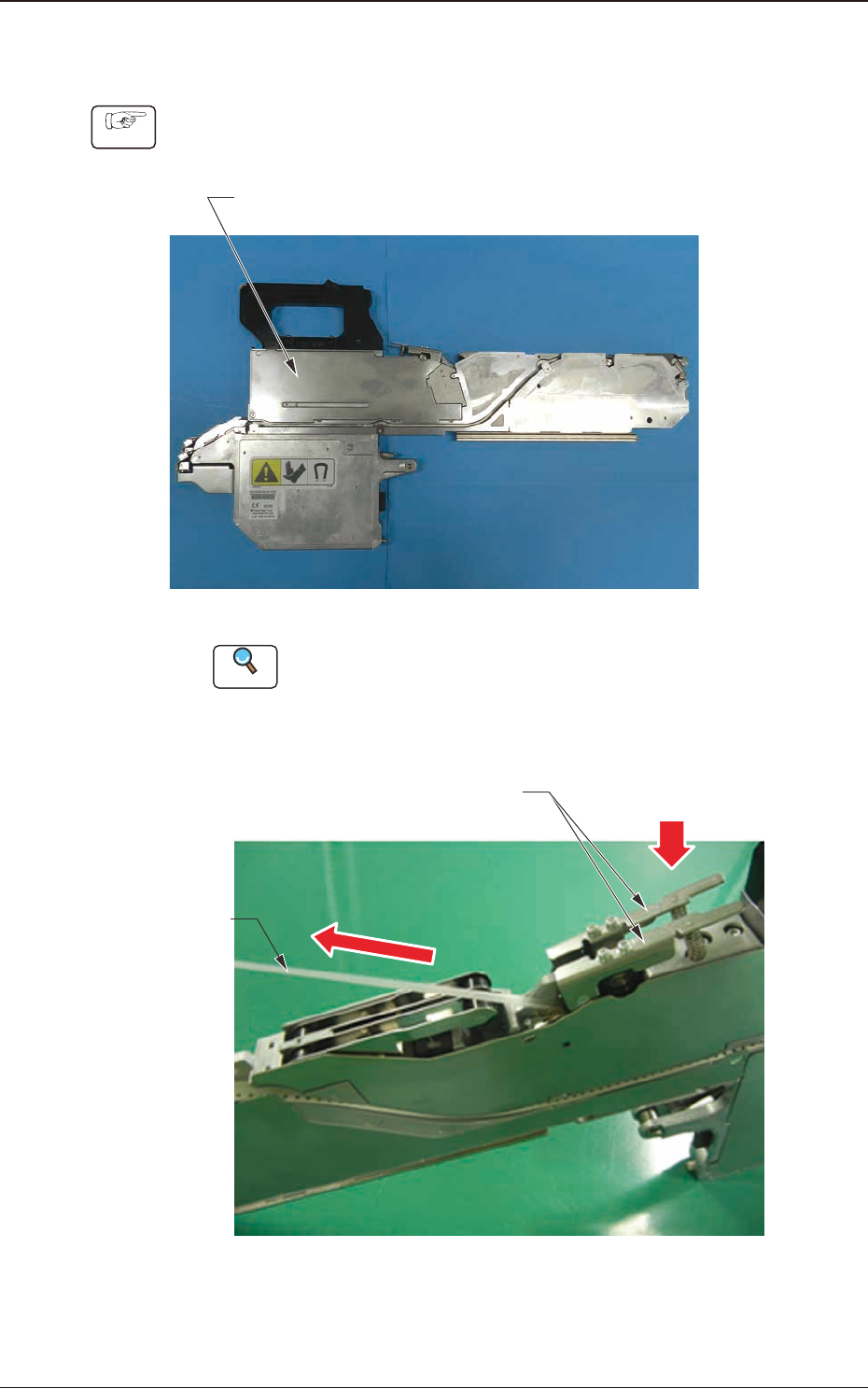

(1) Take out the cover tape from the cover tape housing section.
Cover Tape Housing Section
Fig. B17
Reference
Refer to "2.4 Remove the Cover Tape" for details.
(2) Press down the cover tape take-up release lever and remove the cover tape.
Cover Tape
Cover Tape Take-up Release Lever
Fig. B18
(3) While gently pressing the end of the suppressor with your nger, press the
lower side of the end hook to lift the suppressor.
1209-001
2.3 Detachment of Paper or Embossed Tape
OM-1743
2-13
