3.1 T ape Feeder Attachment Procedure CAUTION Do not drop the tape feeder , when attaching or detaching. Some tape feeder models are rather heavy . In the case that the feeder is removed with one hand, your hand might no…
1209-001
3. Tape Feeder Attachment and Detachment
Procedures
Notice
Before setting the tape feeder onto the bank feeder change cart, follow
the instructions below.
•
Lock the caster brake (2 locations) of the bank feeder change cart.
•
If the tape feeder rises, it might cause breakdown to the pick-up nozzle
or machine (SIGMA-F8) or pick-up error.
Set the tape feeder correctly.
•
After the suppressor has been moved up and down, for tape setting
or replacement, make sure that the tape feeder front hook is securely
caught, and that the suppressor does not rise.
With the dual tape feeder, make sure that the suppressor on the other
side does not rise either.
•
Make sure that the cover tape is not caught at the peeling section on
the suppressor.
•
Make sure that the excess tape section is appropriate (5 to 10 mm)
and that the tape end is not folded.
•
Make sure that the cover tape passes correctly onto the roller section
and that it has been inserted into the cover tape housing section.
Also, make sure that there is no sag in the cover tape.
CAUTION
•
When the bank feeder change cart is to be
moved, hold the handle and move it.
•
When the bank feeder change cart is to be
moved, take care that the cart does not hit your
foot.
•
In particular, in the case that the oor is not even
or the cart is caught due to a stage difference or
slacken carpet, the cart movement resistance
might be increased suddenly.
3. Tape Feeder Attachment and Detachment Procedures
OM-1743
3-1

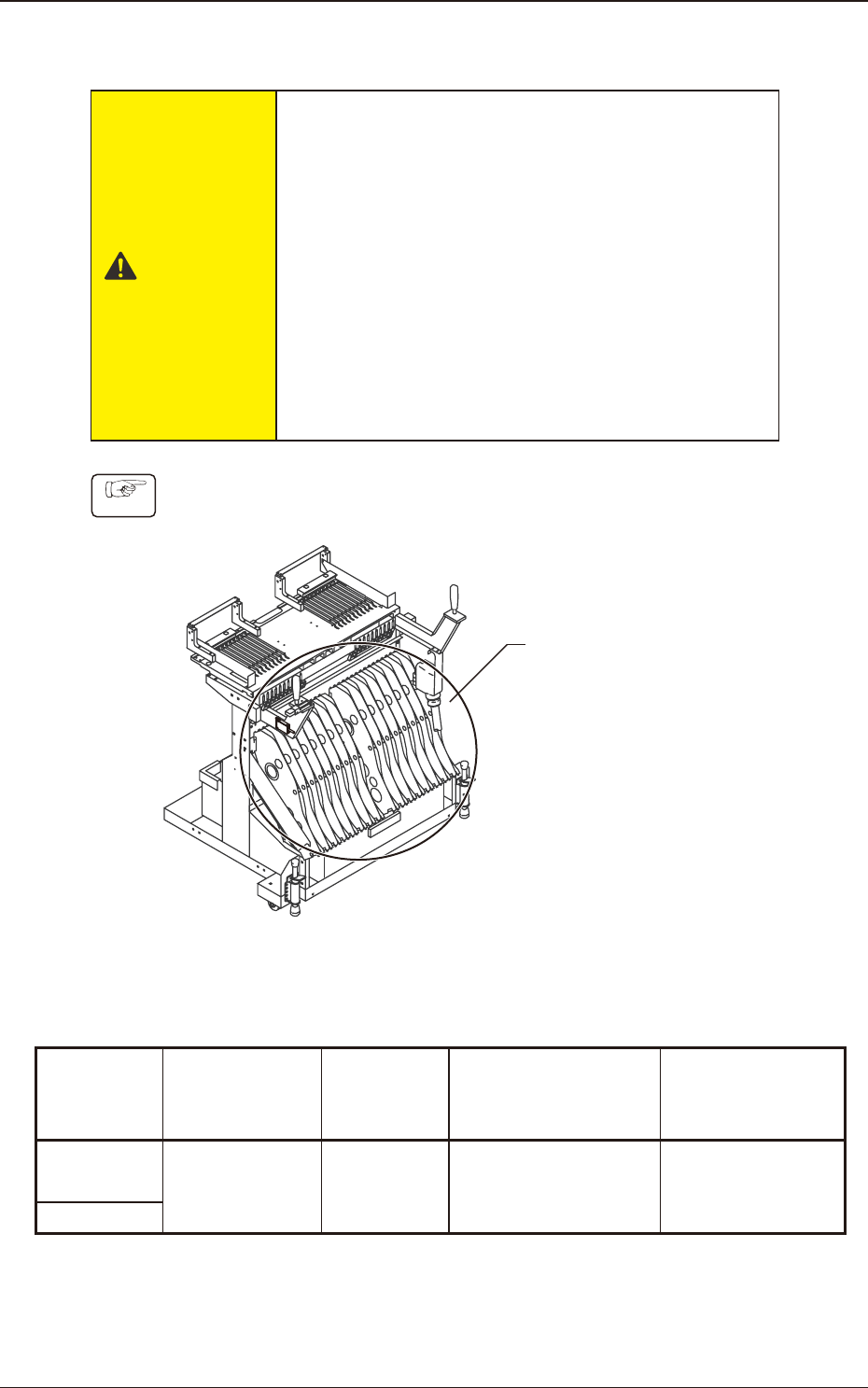

3.1 Tape Feeder Attachment Procedure
CAUTION
Do not drop the tape feeder, when attaching or
detaching.
Some tape feeder models are rather heavy.
In the case that the feeder is removed with one hand, your
hand might not be able to support the feeder weight when
it is removed from the base, which might cause a fall of
the feeder.
Falling of a tape feeder might cause an injury on your feet
or damage to the feeder.
Hold such feeder with your both hands one by one and
take care not to drop it.
Procedure
(1) Set the reel onto the reel receiving bay in the reel holding section on the bank
feeder change cart.
Reel Holding Section
Fig. C1
Feeder Size and Conditions
Table C1
Model
No. of Feeder
Bases to be
mounted (pcs.)
Feeder
Width
(mm)
Max. Reel Width
(mm)
Pitch to be used
GT-38080
GD-38080
20 20.2 14.4 1
GD-38083
1209-001
3.1 Tape Feeder Attachment Procedure
OM-1743
3-2

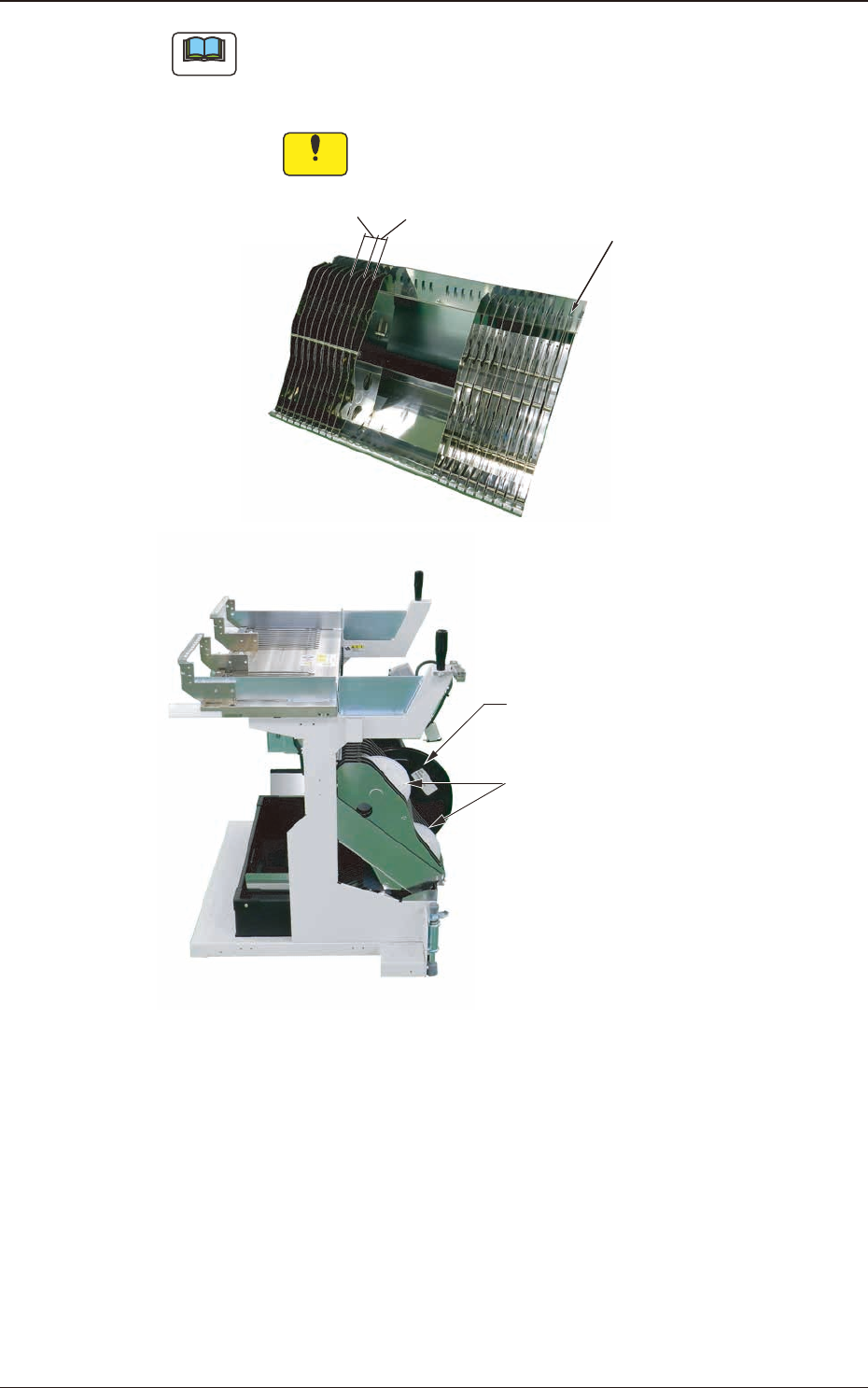

Note
(a) The partition panel pitch (bay) should be 21 mm in the reel holding section
and the thickness of the partition panel should be 0.8 mm.
(b) When 2 pitches or more are used, remove the partition panel.
Notice
When removing or setting the partition panel, take care not
to hurt your ngers.
リール保持部
2 Pitch
1 Pitch
Partition Panel
Reel Holding Section
Large Reel Set Position
Small Reel Set Position
Fig. C2
1209-001
3.1 Tape Feeder Attachment Procedure
OM-1743
3-3
