7.4.6 T ape Feed Gear Section Worm Gear Every 5 million times of operation or every Three Months Cleaning, Lubrication Remove the cover and remove dust and debris using a cloth or bamboo probe. Then, apply MOLYNOC Grease…

7.4.5 Joint Detection Unit

In the case of GD-38080 or GD-38083

Sensor Section

Tape Guide on the Joint Detection Unit

(Only for GD-38080 and GD-38083)

Every week Cleaning

• For GD-38080 or GD-38083, lift the cover and

remove any alien substance using the applicator

or bamboo probe.

If any foreign substance is attached

when the tape is passed through,

it might damage the joint detection

sensor or cause a tape feeding error.

Refer to "7.5.4 8 mm Dual Feeder

Joint Detection Unit Sensor Section

Cleaning (For GD-38080, or GD-38083)

for details.

Reference

Notice

Fig. G9

1209-001

7.4 Maintenance Spots

OM-1743

7-10

7.4.6 Tape Feed Gear Section

Worm Gear

Every 5 million times of operation or every Three Months Cleaning, Lubrication

Remove the cover and remove dust and debris using a cloth or bamboo probe.

Then, apply MOLYNOC Grease AP1 using the greasing jig.

Refer to "7.5.2 How to Apply Grease to the Sprocket Driving Gear

Unit" for details.

Reference

Fig. G10

7.4.7 Cover Tape Take-up Gear Section

Flat End Wheel, Worm Gear, Worm Wheel (Right Side, Left Side)

Every 5 million times of operation or every Three Months Cleaning, Lubrication

Remove the cover and remove dust and debris using a cloth or bamboo probe.

Then, apply MOLYNOC Grease AP1 using the greasing jig.

Flat End Wheel

Worm Gear

Worm Wheel

Flat End Wheel

Fig. G11

1209-001

7.4 Maintenance Spots

OM-1743

7-11

7.5 Maintenance Method

7.5.1 Cover Removal and Attachment

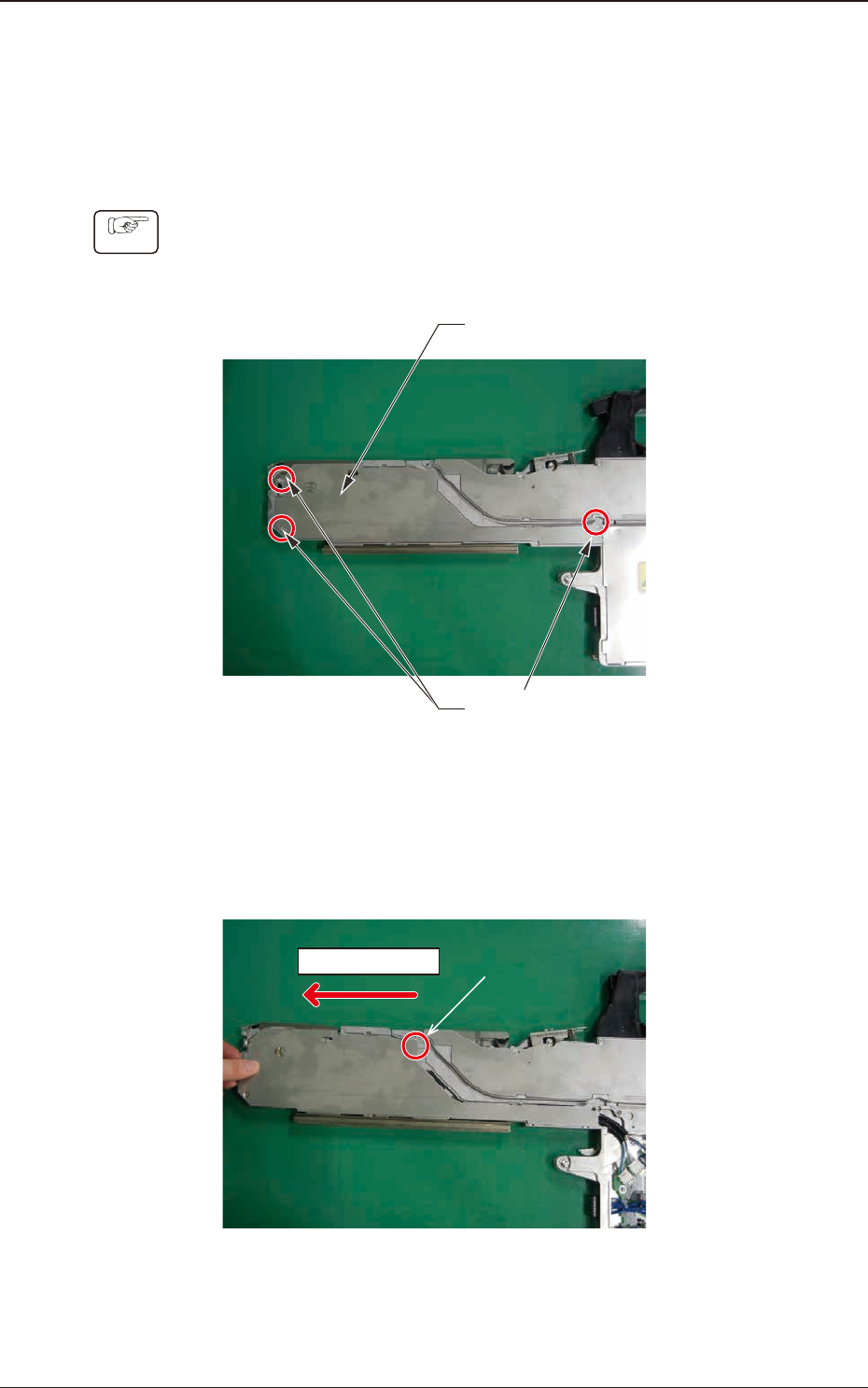

7.5.1.1 Left Side Cover #1 Removal Procedure

Procedure

(1) Remove the three set screws for the Left Side Cover #1.

Cover Set Screws

Left Side Cover #1

Fig. G12

(2) Hold the left side of the Left Side Cover #1 and slide it in the arrow direction

to remove.

It is easier to remove the cover by raising the part A and sliding the cover.

Sliding Direction

Fig. G13

1209-001

7.5 Maintenance Method

OM-1743

7-12
