1209-001 7.5.1.3 Left Side Cover #2 Removal Procedure Procedure (1) Remove the three set screws for the Left Side Cover #2. Left Side Cover #2 Cover Set Screws Fig. G16 (2) Hold the upper side of the Left Side Cover #2 a…

1209-001

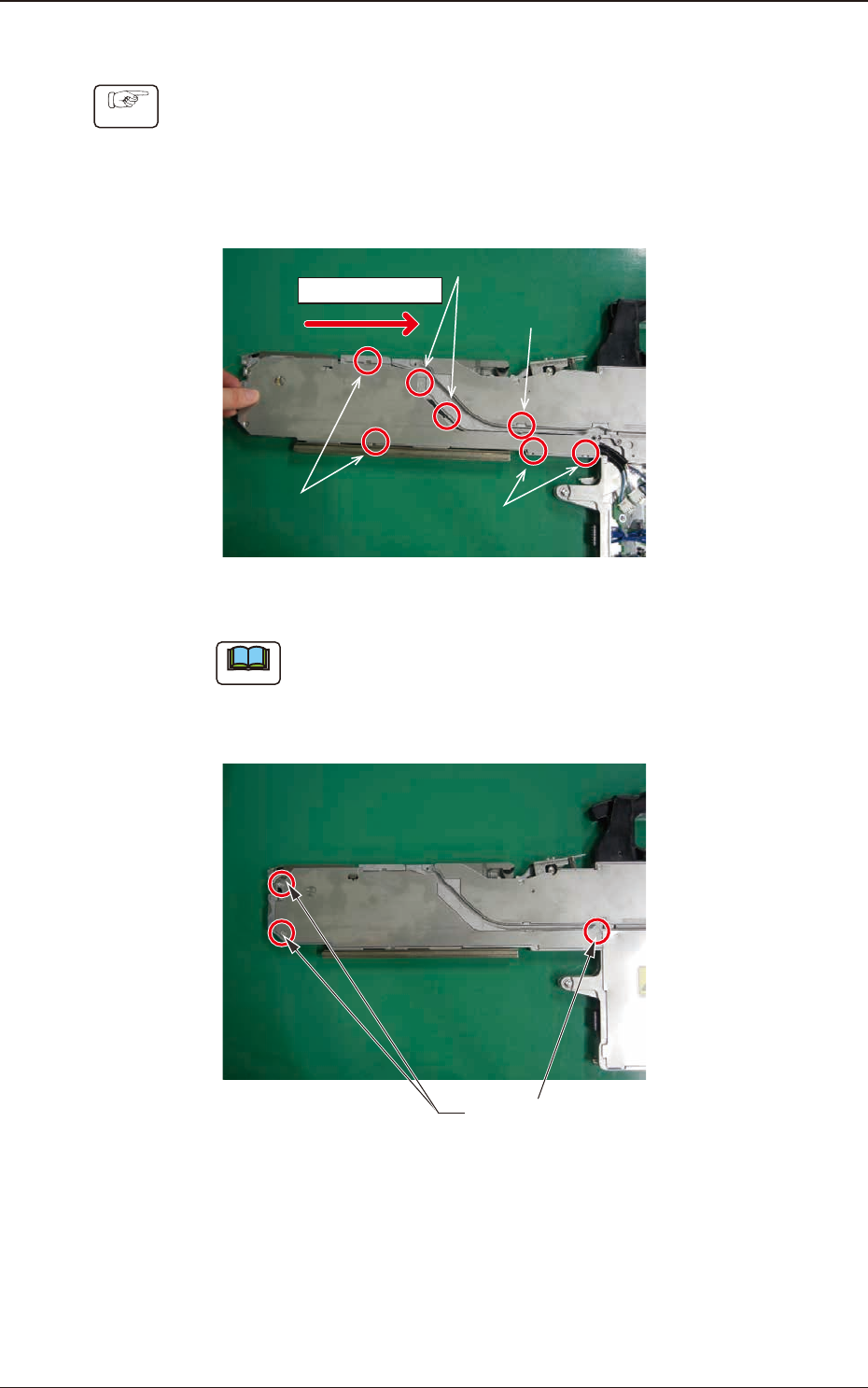

7.5.1.2 Left Side Cover #1 Attachment Procedure

Procedure

(1) Hold the left side of the Left Side Cover #1 and slide it in the arrow direction

to attach.

Insert the claw section on the Left Side Cover #1 into the slit with the

sequence of 1, 2, 3 and 4 shown in the gure below and slide the cover while

pressing it from above.

Sliding Direction

Step 1, 2 psitions

Step 2, 2 psitions

Step 4, 2 psitions

Step 1, 1 psition

Fig. G14

Note

When the cover is attached, take care not to catch any cable.

(2) Fasten the cover set screws and x the Left Side Cover #1.

Cover Set Screws

Fig. G15

7.5 Maintenance Method

OM-1743

7-13

1209-001

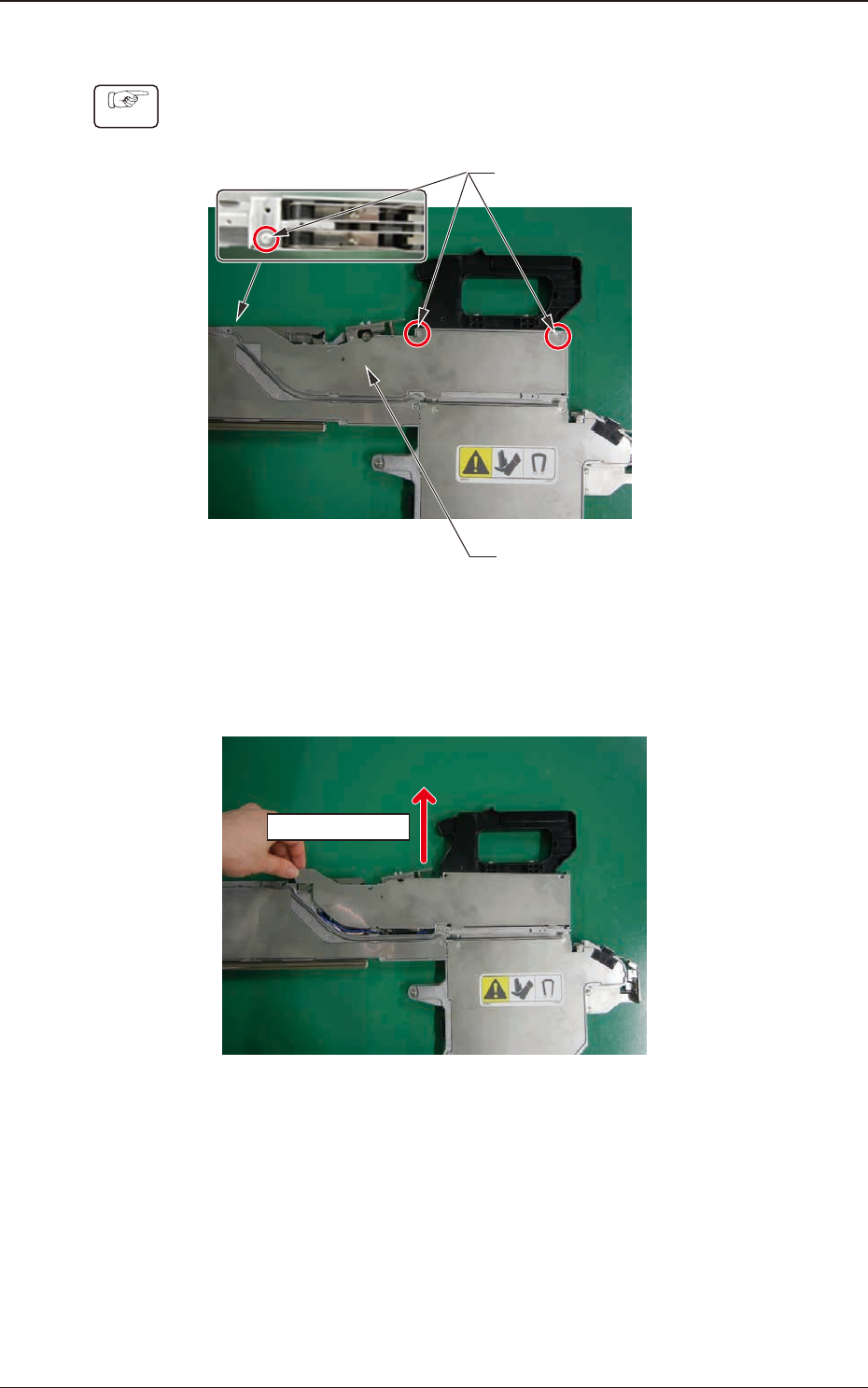

7.5.1.3 Left Side Cover #2 Removal Procedure

Procedure

(1) Remove the three set screws for the Left Side Cover #2.

Left Side Cover #2

Cover Set Screws

Fig. G16

(2) Hold the upper side of the Left Side Cover #2 and slide it in the arrow

direction to remove.

Sliding Direction

Fig. G17

7.5 Maintenance Method

OM-1743

7-14

1209-001

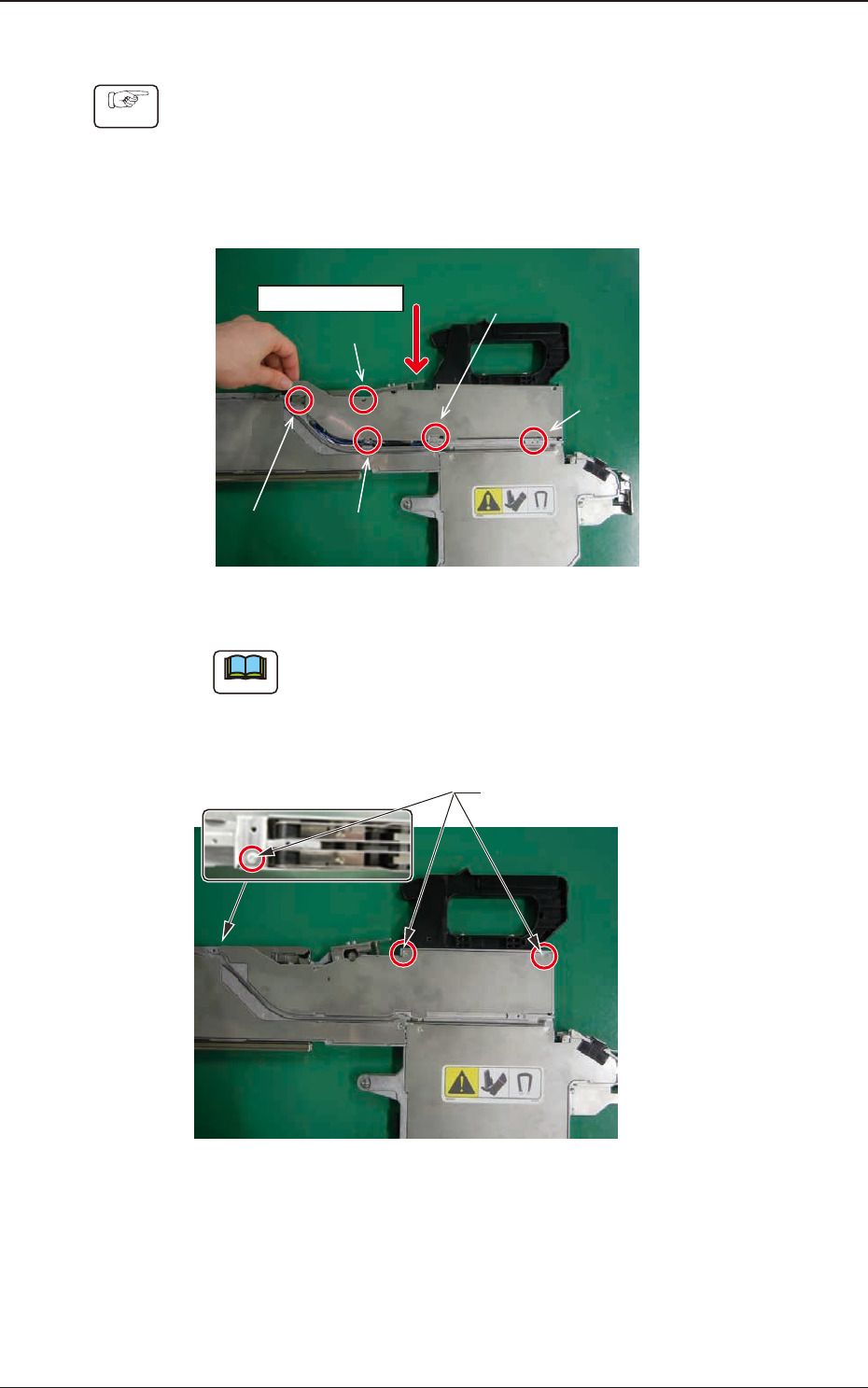

7.5.1.4 Left Side Cover #2 Attachment Procedure

Procedure

(1) Hold the upper side of the Left Side Cover #2 and slide it in the arrow

direction to attach.

Insert the claw section on the Left Side Cover #2 into the slit with the

sequence of 1, 2, 3, 4 and 5 shown in the gure below and slide the cover

while pressing it from above.

Sliding Direction

Step 1

Step 2

Step 4

Step 5

Step 3

Fig. G18

Note

When the cover is attached, take care not to catch any cable.

(2) Fasten the cover set screws and x the Left Side Cover #2.

Cover Set Screws

Fig. G19

7.5 Maintenance Method

OM-1743

7-15
