(12) Use scissors to cut the tape, so that the excess tape section is 5 to 10 mm. Notice Use scissors which would not cut ngers, and cut the tape one by one. Tape 5 to 10 mm Fig. B11 Notice When the tape is cut, do not …
(11) Maintain the suppressor being lowered: press the upper section of the front
hook to x the suppressor.
Fix the suppressor with the front hook.
Front Hook
Press
Fig. B10
NOTICE
Securely lock the suppressor with the front hook.
If the tape feeder is operated while the suppressor is
raised, the machine (SIGMA-F8) might be damaged
or incur a pick-up error.
1209-001
2.1 Attachment of Paper or Embossed Tape
OM-1743
2-7

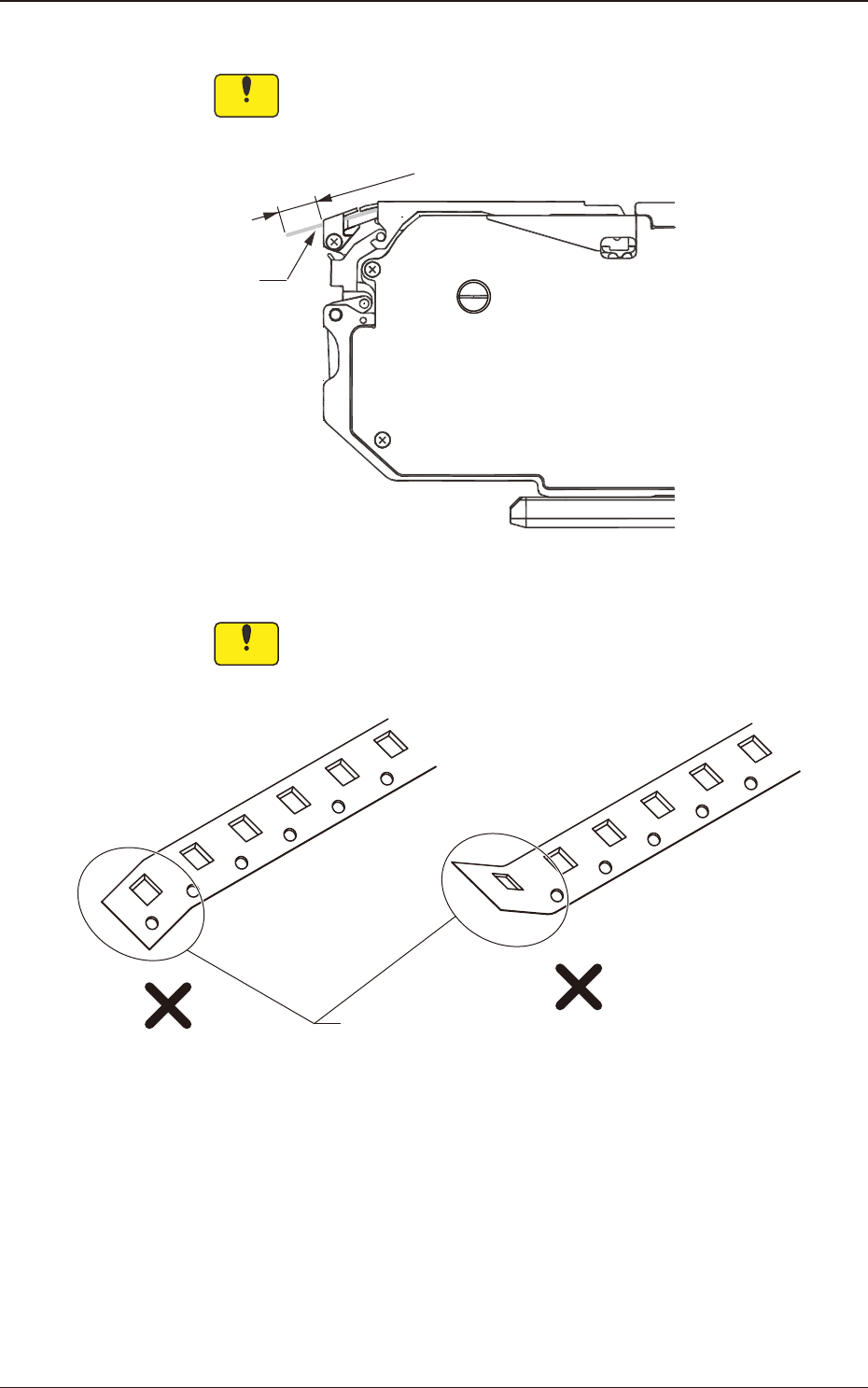

(12) Use scissors to cut the tape, so that the excess tape section is 5 to 10 mm.
Notice
Use scissors which would not cut ngers, and cut the tape one by
one.
Tape
5 to 10 mm
Fig. B11
Notice
When the tape is cut, do not fold the end section.
The tape might not be cut correctly by using the cutter attached to
the machine (SIGMA-G4/G5).
Folding
Fig. B12
1209-001
2.1 Attachment of Paper or Embossed Tape
OM-1743
2-8

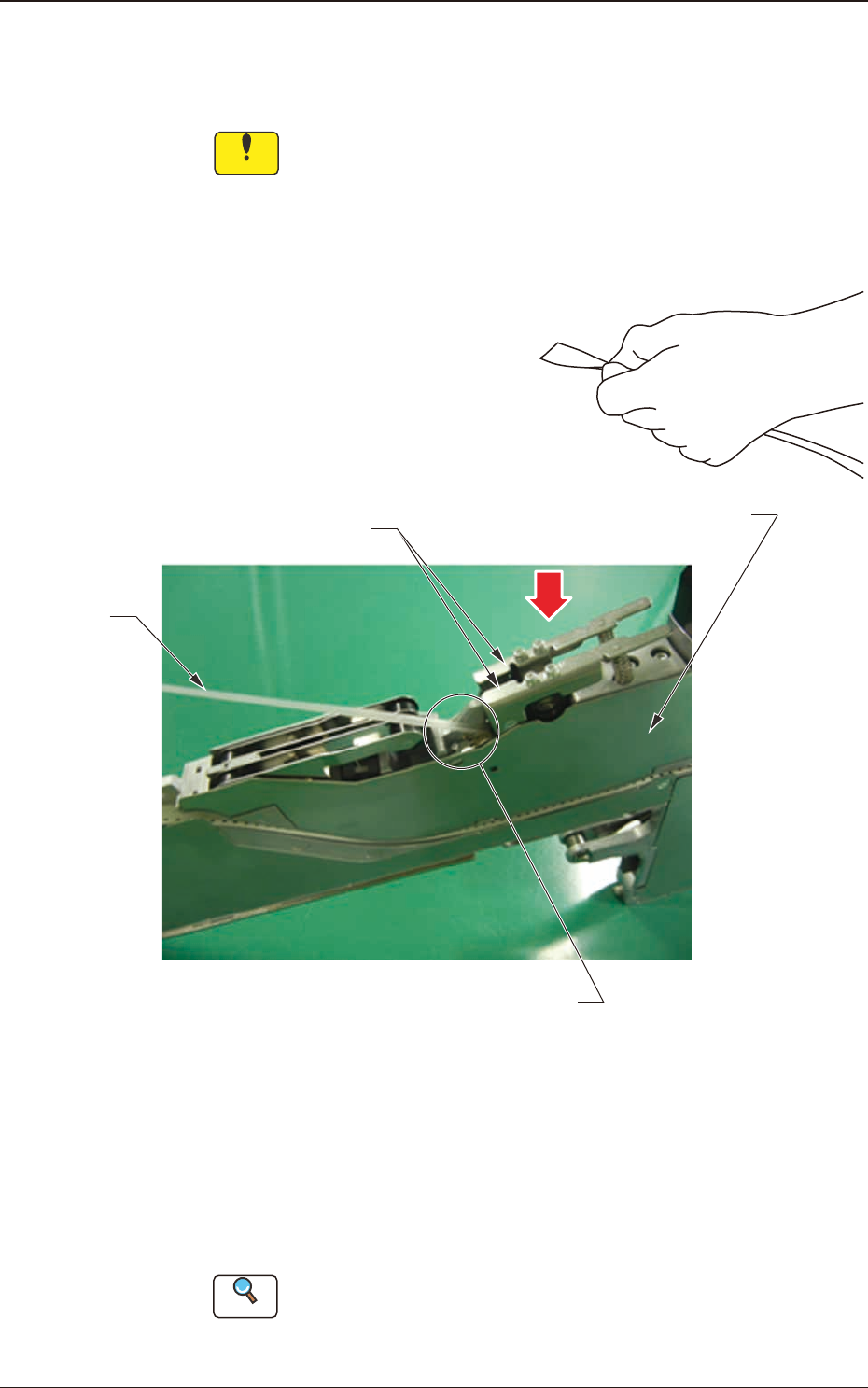

(13) Press down the cover tape take-up release lever, insert the end of the cover
tape into the cover tape housing section, and reset the cover tape take-up
release lever.
Notice
•
It should be conrmed that there is not anything sticking, or any
twist or knot of the cover tape.
•
Take care so that your nger is not caught by the take-up gear.
Cover Tape Housing Section
Cover Tape Take-up Release Lever
Cover Tape
Hold the end of the cover tape between fingers
as shown in the figure and insert it into the cover tape
housing section.
Take-Up Gear Section
Fig. B13
(14) Select the lane to be used using the lane selection button on the operation
panel and press the take-up button to send the cover tape to the cover tape
housing section.
Press the take-up button, continuously, until the take-up gear is stopped
automatically.
Reference
Refer to "4. Operation Panel" for operation panel.
1209-001
2.1 Attachment of Paper or Embossed Tape
OM-1743
2-9
