2. Attachment and Detachment of Tape
2.1 Attachment of Paper or Embossed Tape
Procedure

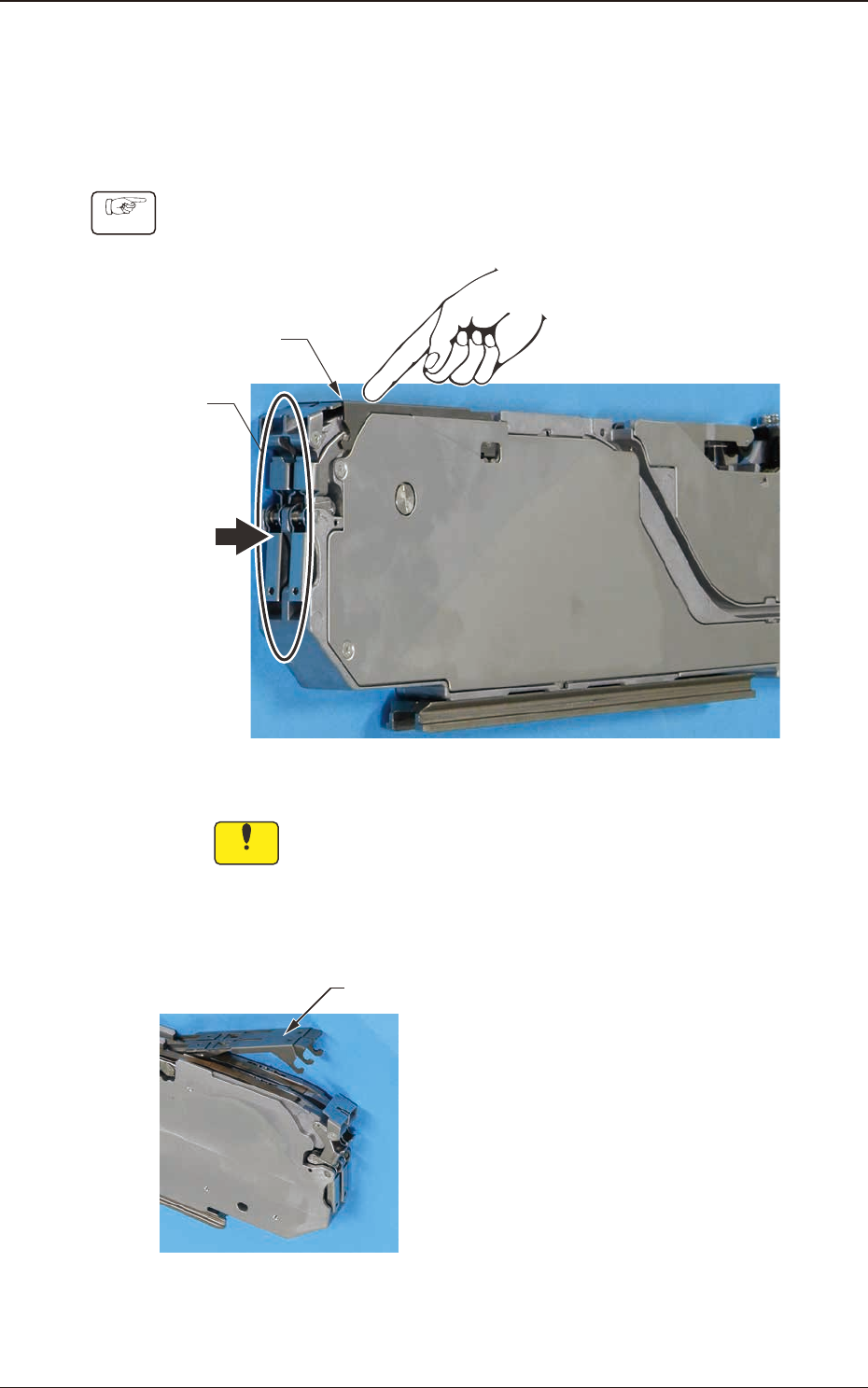

(1) While gently pressing the end of the suppressor with your nger, press the
lower side of the front hook to lift the suppressor.
Suppressor
Front Hook
Fig. B1
Notice
The suppressor is an important component which affects the pick-
up rate greatly.
If unnecessary stress works on the suppressor, such as dropping
the tape feeder, it might become deformed.
Take the greatest care in handling the suppressor.
Suppressor
• 8 mm Width Dual Feeder
When the suppressor is lifted to
the point where clicking sound
is heard, the upper section can
be locked.
Fig. B2
1209-001
2. Attachment and Detachment of Tape
OM-1743
2-1
(2) Make sure there is no foreign substance (chip component or dust) on the
chute surface.
If there is any foreign substance on the chute surface, then remove it, using a
rag or air-blow.
Chip Component
Fig. B3
When the Magnetic Plate is used, clean it, because a component might be
attached to the magnetic plate.
(3) Make sure there is no foreign substance on the rear surface of the suppressor.
It is very easy for foreign substances to enter the corner section. Therefore,
check it carefully.
If any foreign substance, etc., is attached to the rear surface of the suppressor,
remove it with air-blow, tweezers, or thin bar.
Chip Component
Fig. B4
Notice
If the taping component is mounted with any foreign substance
attached, the suppresser might be deformed or a pick-up error
occur.
Therefore, clean it.
