7.4.5 Joint Detection Unit In the case of GD-38080 or GD-38083 Sensor Section Tape Guide on the Joint Detection Unit (Only for GD-38080 and GD-38083) Every week Cleaning • For GD-38080 or GD-38083, lift the cover and rem…

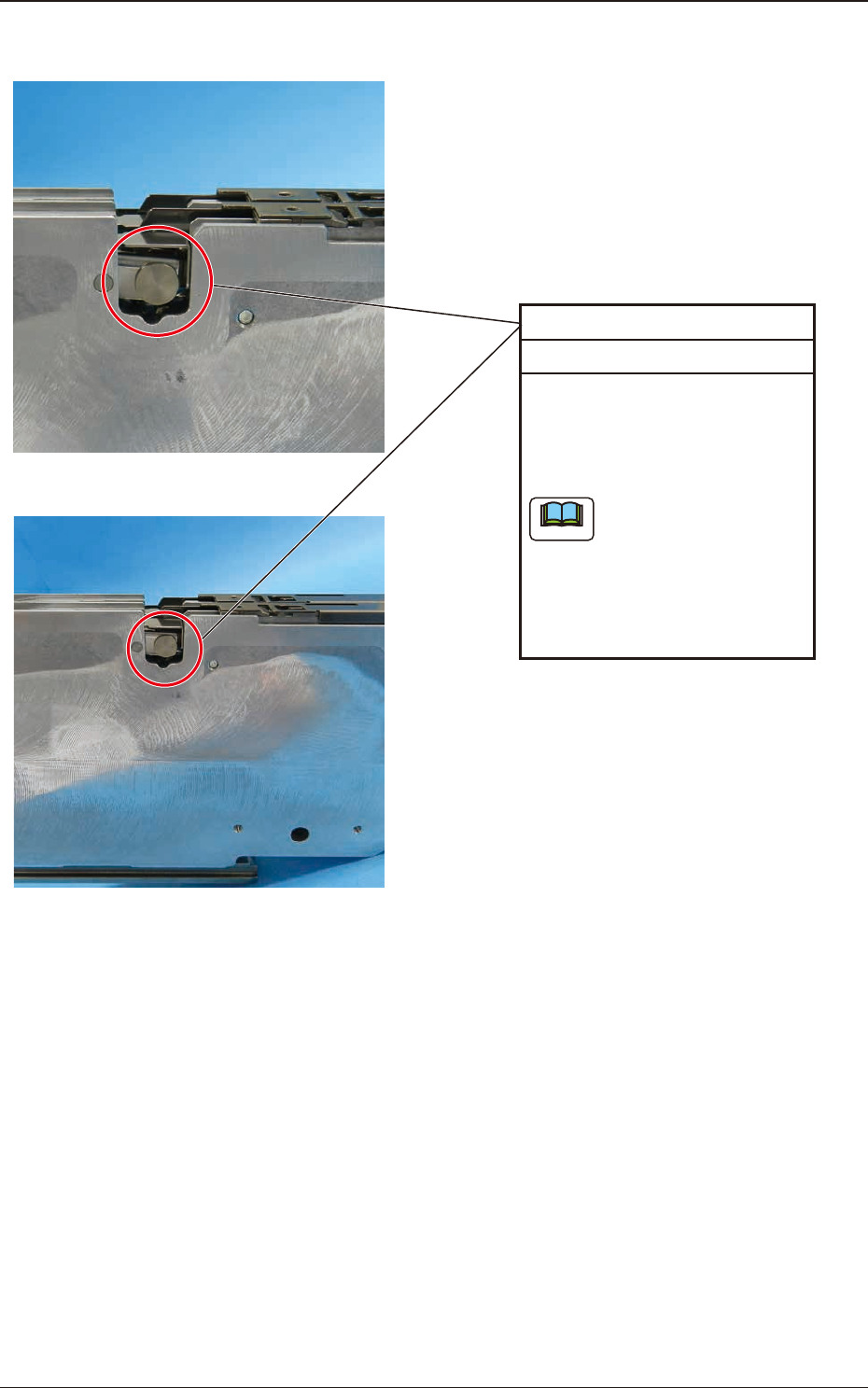

7.4.4 Component Discharging Section
Discharging Outlet
Every week Cleaning
Blow the air in the direction of
the discharging outlet.
(The components are discharged
from the opening opposite to this
outlet).
When any component is
removed using air-blow,
the components might
scatter around, so perform
this operation paying
attention to the surrounding
condition.
Note
Fig. G8
1209-001
7.4 Maintenance Spots
OM-1743
7-9

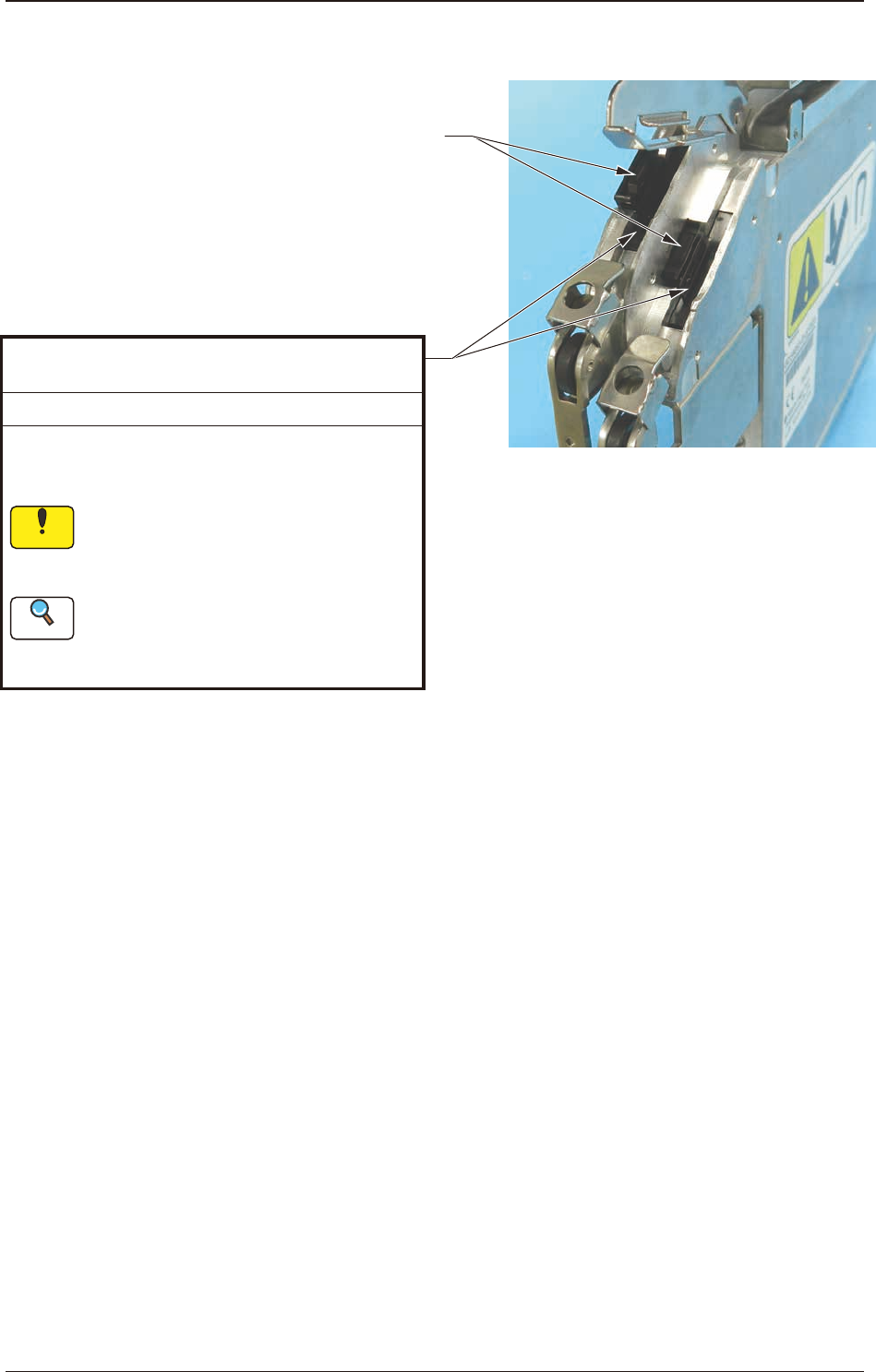

7.4.5 Joint Detection Unit
In the case of GD-38080 or GD-38083
Sensor Section
Tape Guide on the Joint Detection Unit
(Only for GD-38080 and GD-38083)
Every week Cleaning
• For GD-38080 or GD-38083, lift the cover and
remove any alien substance using the applicator
or bamboo probe.
If any foreign substance is attached
when the tape is passed through,
it might damage the joint detection
sensor or cause a tape feeding error.
Refer to "7.5.4 8 mm Dual Feeder
Joint Detection Unit Sensor Section
Cleaning (For GD-38080, or GD-38083)
for details.
Reference
Notice
Fig. G9
1209-001
7.4 Maintenance Spots
OM-1743
7-10

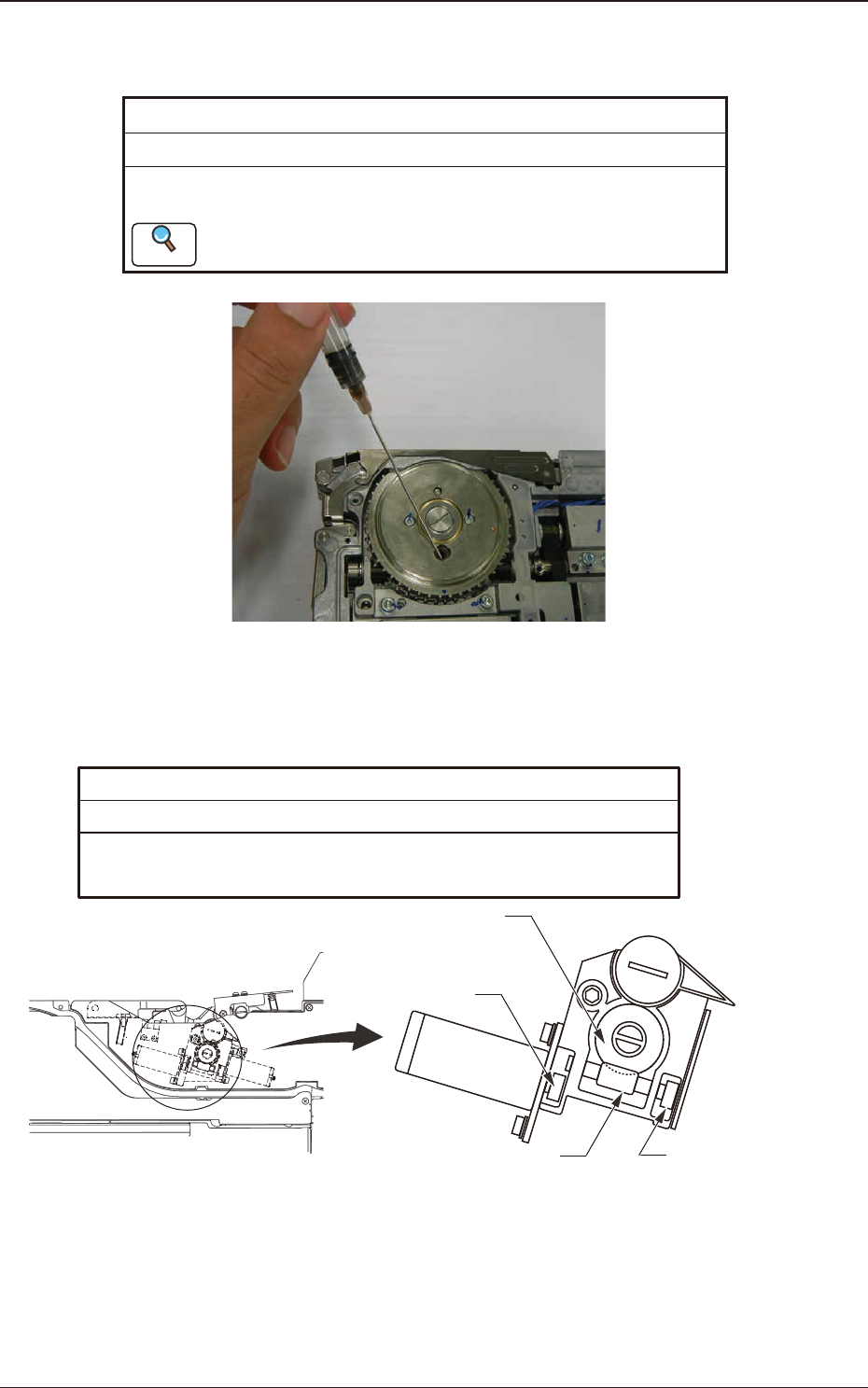

7.4.6 Tape Feed Gear Section
Worm Gear
Every 5 million times of operation or every Three Months Cleaning, Lubrication
Remove the cover and remove dust and debris using a cloth or bamboo probe.
Then, apply MOLYNOC Grease AP1 using the greasing jig.
Refer to "7.5.2 How to Apply Grease to the Sprocket Driving Gear
Unit" for details.
Reference
Fig. G10
7.4.7 Cover Tape Take-up Gear Section
Flat End Wheel, Worm Gear, Worm Wheel (Right Side, Left Side)
Every 5 million times of operation or every Three Months Cleaning, Lubrication
Remove the cover and remove dust and debris using a cloth or bamboo probe.
Then, apply MOLYNOC Grease AP1 using the greasing jig.
Flat End Wheel
Worm Gear
Worm Wheel
Flat End Wheel
Fig. G11
1209-001
7.4 Maintenance Spots
OM-1743
7-11
