The lane for which a splicing alarm is output is displayed with dot indication . This alarm shows the splicing timing for supplemental components, based on the number of components remaining. Note This is the rst alarm …
[Detection Description] Time Over Current Detection Error
The current detector is abnormal.
System Error
An error occurs in the servo amplier inner program.
Ab System Error
[Detection Description] Position Deviation Too Large
The position deviation inside the amplier is too large.
Position Deviation Too Large when servo is turned ON
When the servo motor is turned on, the position deviation inside the
amplier is too large.
Ad Position Deviation Too Large
[Detection Description] Run-away has been detected.
The servo-motor has run away.
AC Run-away Detection Error
[Detection Description] Encoder signal amplitude error or A/D data error
The amplitude of the encoder signal was small or there was A/D converter
error.
Encoder acceleration error
Encoder position data was vanished.
Encoder adjustment operation error nishes
During encoder adjustment, the operation was nished due to an error.
Encoder adjustment value detection error
The detected encoder adjustment value was abnormal.
A8 Encoder Error
1301-002
4.3 Error Codes and Splicing Guide
OM-1743
4-16

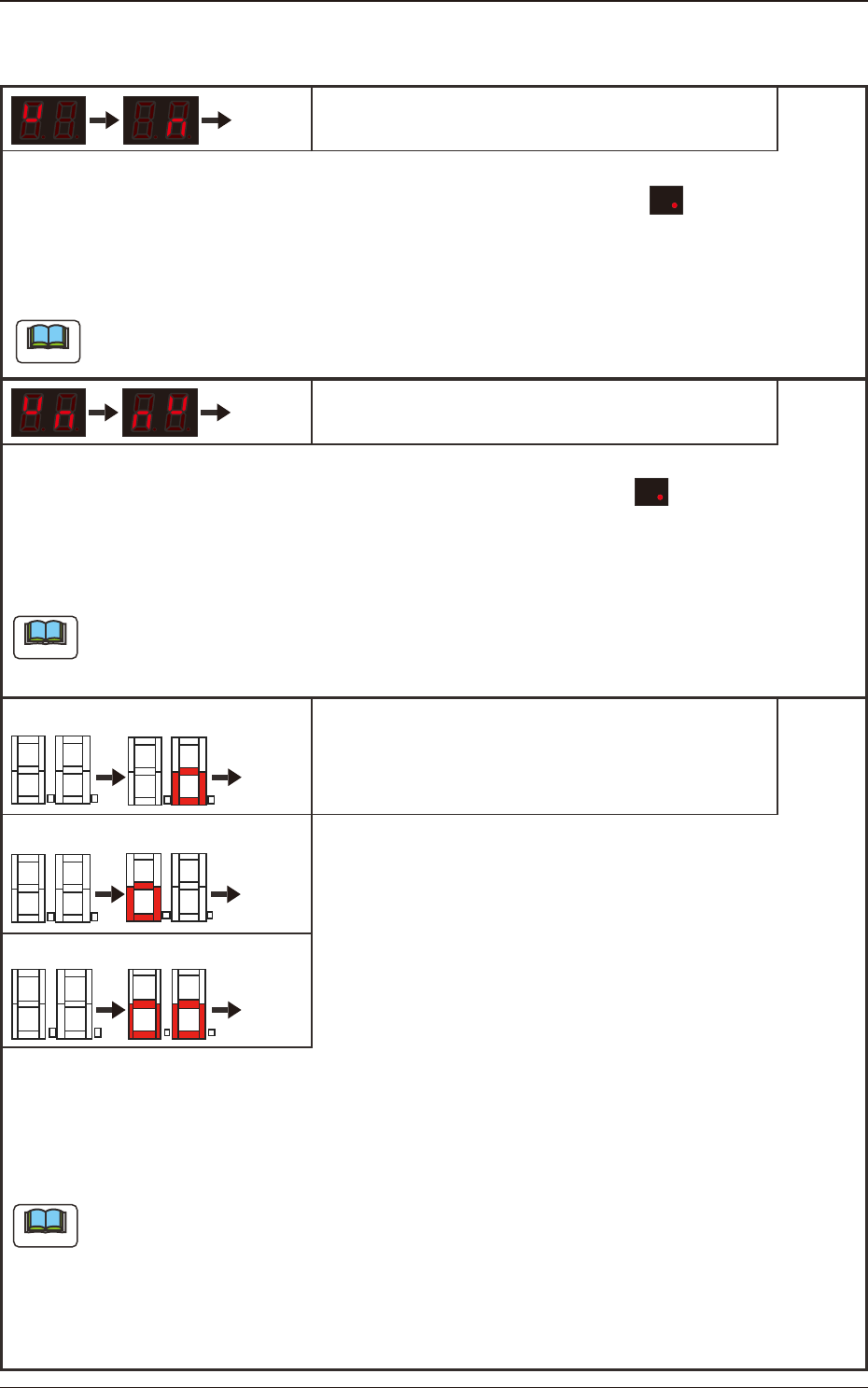

The lane for which a splicing alarm is output is displayed with dot indication .
This alarm shows the splicing timing for supplemental components, based on the number of
components remaining.
Note
This is the rst alarm to advance the splicing preparation, and the pick-up of the components on the
subjected lane is continued after the alarm.
Splicing Alarm
Repeated
The lane for which a splicing stop is output is displayed with dot indication .
It shows the second stage to which the mode has been transferred "Stop for Splicing" : the component
pick-up is stopped on that lane while the tape end required for splicing is secured.
Note
If the pick-up operation is continued after the splicing alarm is output for promoting the preparation
of component supply, the tape end of the reel being currently used would enter inside the feeder and
the splicing operation can not be performed.
Stop for Splicing
Repeated
4.3.3 Splicing Guide
Cover Tape Housing Section FULL Alarm
Lane 1 FULL Alarm
Repeating
Repeating
Repeating
Lane 2 FULL Alarm
Lane 1 and 2 FULL Alarm
This alarm is to notify that the cover tape housing section is almost lled with the peeled-off cover tape.
Open the cover of the cover tape housing section for which the cover tape housing section FULL alarm
is issued, and collect the cover tape. If cover tape is left as it is, without collecting it, the cover of the
housing section is opened and the cover tape comes out from it.
Note
In the following cases, the alarm can not be issued correctly due to the cover tape FULL alarm
detection processing method.
•
Tape feed speed has been set to "Deceleration".
•
The feed pitch amount is small.
•
The cover tape peeling off strength is large.
•
The cover tape viscosity is large.
1209-001
4.3 Error Codes and Splicing Guide
OM-1743
4-17
