OM-1743-005w.pdf - 第112页

1209-001 (3) Fasten the cover set screws to x the PCB BOX Cover . Cover Set Screws Fig. G24 7.5 Maintenance Method OM-1743 7-18

1209-001

7.5.1.6 PCB BOX Cover Attachment Procedure

Procedure

(1) Hold the right side of the PCB BOX Cover and slide it in the arrow direction

to insert two claws. (Step 1)

Sliding Direction

Step 1

Fig. G22

(2) Hold the upper side of the PCB BOX Cover and slide it in the arrow

direction to attach.

Insert the claw section on the PCB BOX Cover into the slit with the sequence

of 2 and 3 shown in the gure below and slide the cover while pressing it

from above.

Sliding Direction

Step 3

Step 2

Fig. G23

Note

When the cover is attached, take care not to catch any cable.

7.5 Maintenance Method

OM-1743

7-17

1209-001

(3) Fasten the cover set screws to x the PCB BOX Cover.

Cover Set Screws

Fig. G24

7.5 Maintenance Method

OM-1743

7-18

1209-001

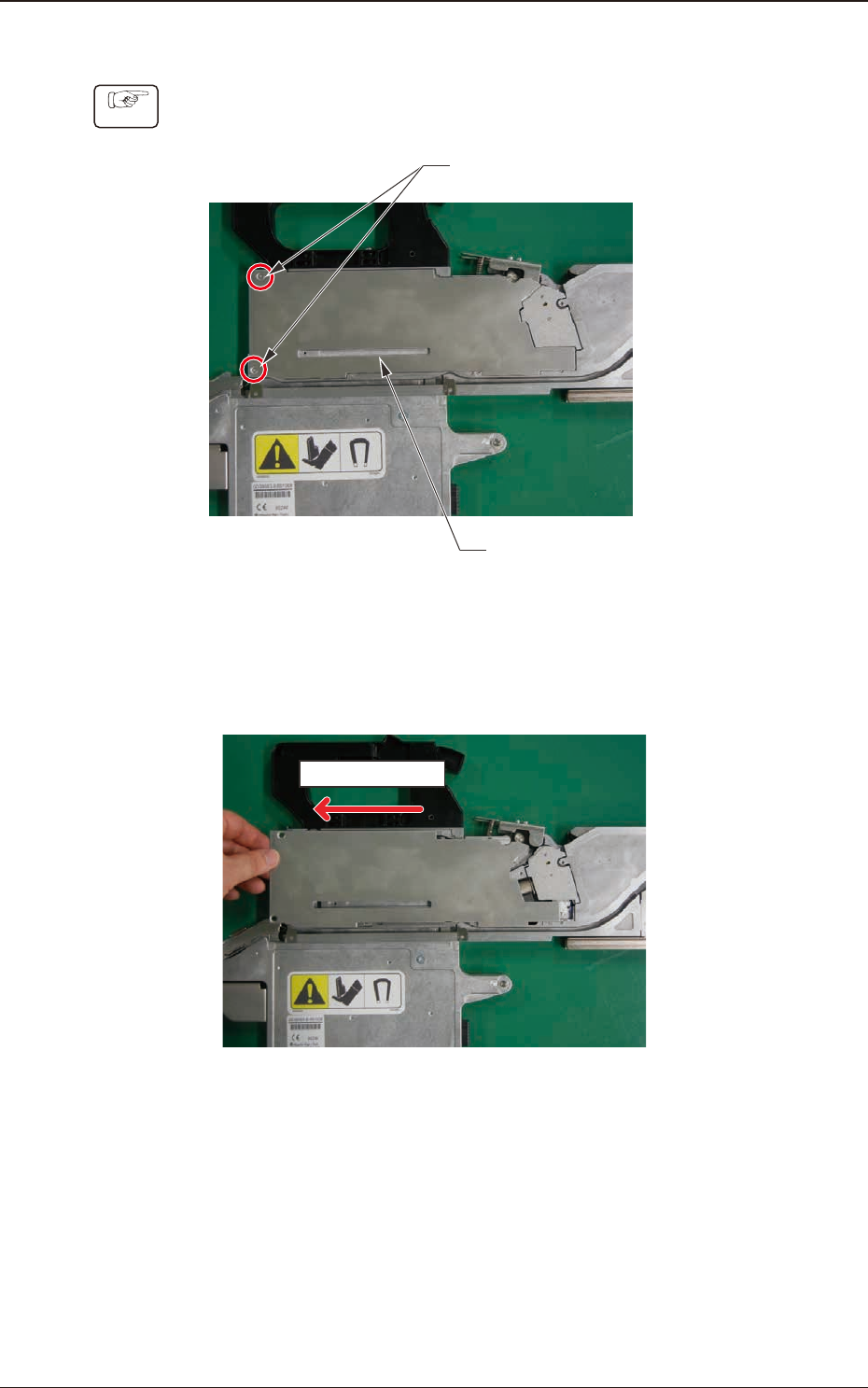

7.5.1.7 Right Side Cover Removal Procedure

Procedure

(1) Remove the two set screws for the Right Side Cover.

Right Side Cover #1

Cover Set Screws

Fig. G25

(2) Hold the left side of the Right Side Cover and slide it in the arrow direction

to remove.

Sliding Direction

Fig. G26

7.5 Maintenance Method

OM-1743

7-19
