2.5 Joint Detection Unit

Set the tape after inserting the tape into the guide of the joint detection unit.

Procedure

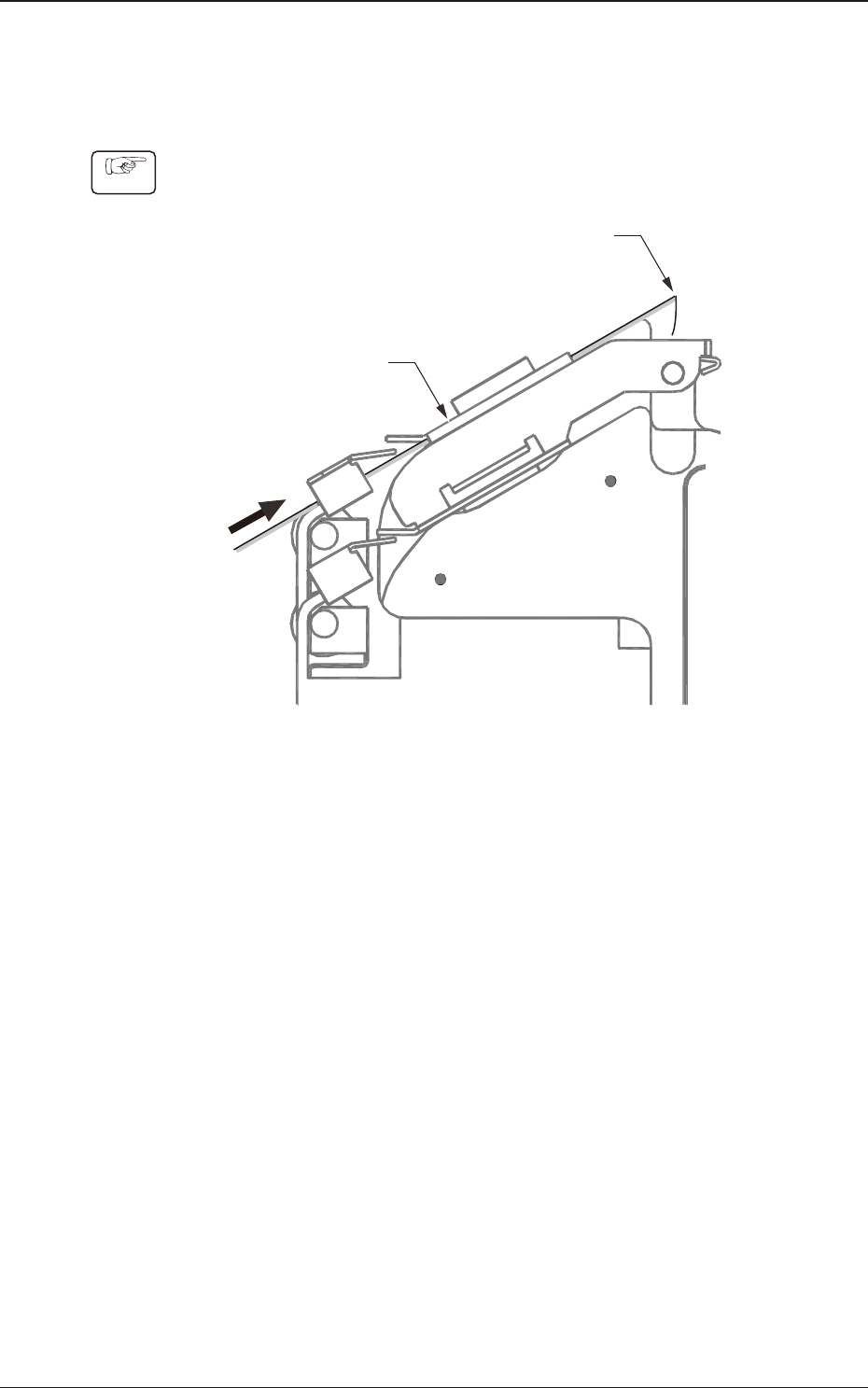

(1) Bend the cover tape at the end of the tape and pass the tape according to the

tape guide from under the joint detection unit.

Pass the tape from

the lower side

Tape guide

Bend the cover tape at the end tape

Fig. B22

1209-001

2.5 Joint Detection Unit

OM-1743

2-17

2.6 Handling of Magnet Plate

In the 8 mm width dual feeder, the Magnetic Plate is attached to the chute section

to stabilize the component pick-up condition.

The effect of the magnetism varies, depending on the component type, size, and

material.

Also, for some components, the magnetism might have harmful effects on the

component characteristics or pick-up conditions.

Note

Check the effect of the magnetism on the components and if it has any adverse

effect, remove the Magnetic Plate.

2.6.1 How to remove the Magnetic Plate

Procedure

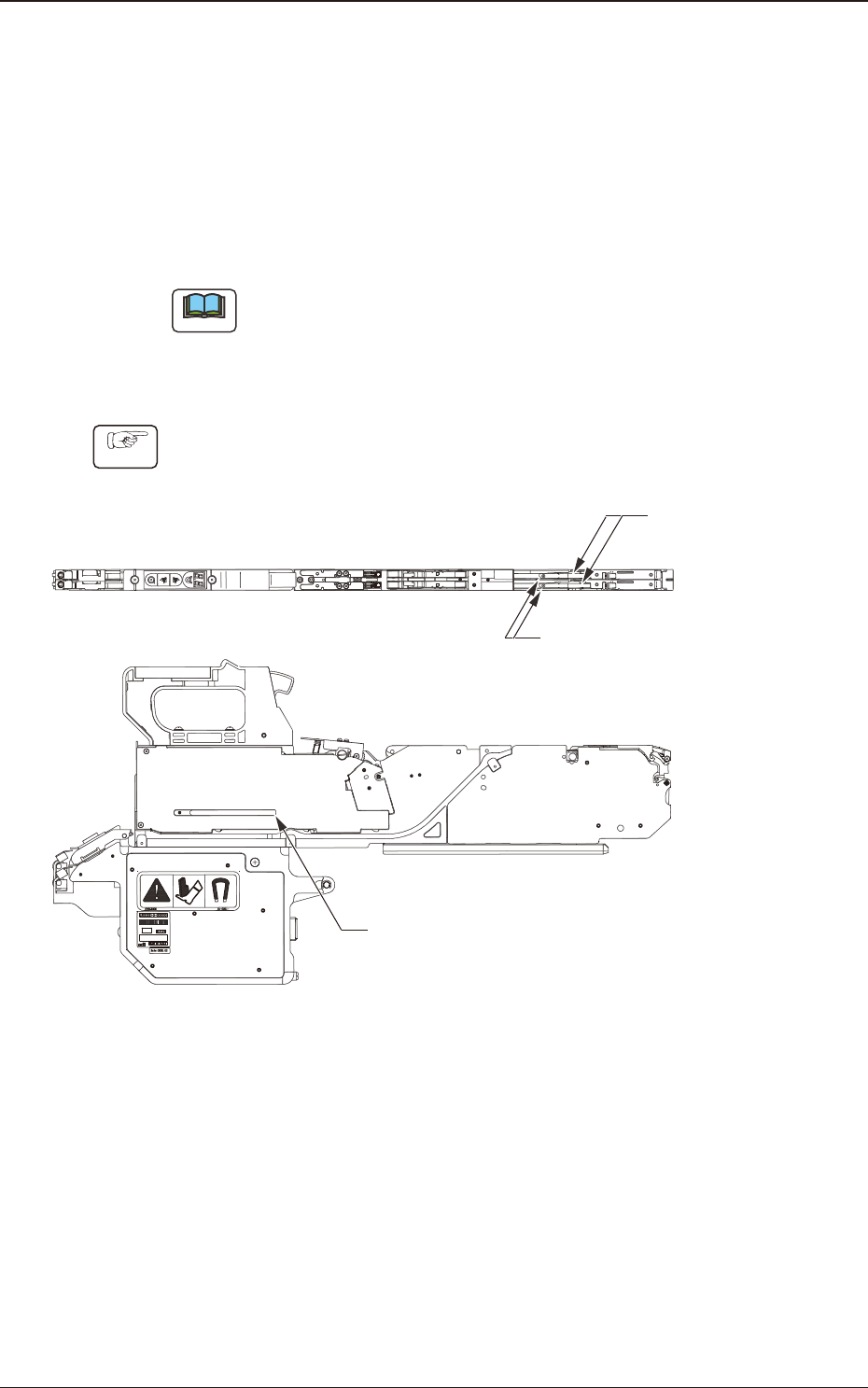

(1) Loosen the set screw (round head screw) to remove the magnetic plate, and

attach it onto the magnetic plate housing section.

Set Screw

(Round Head Screw)

Magnetic Plate

Magnetic Plate housing section

Fig. B23

1209-001

2.6 Handling of Magnet Plate

OM-1743

2-18

Notice

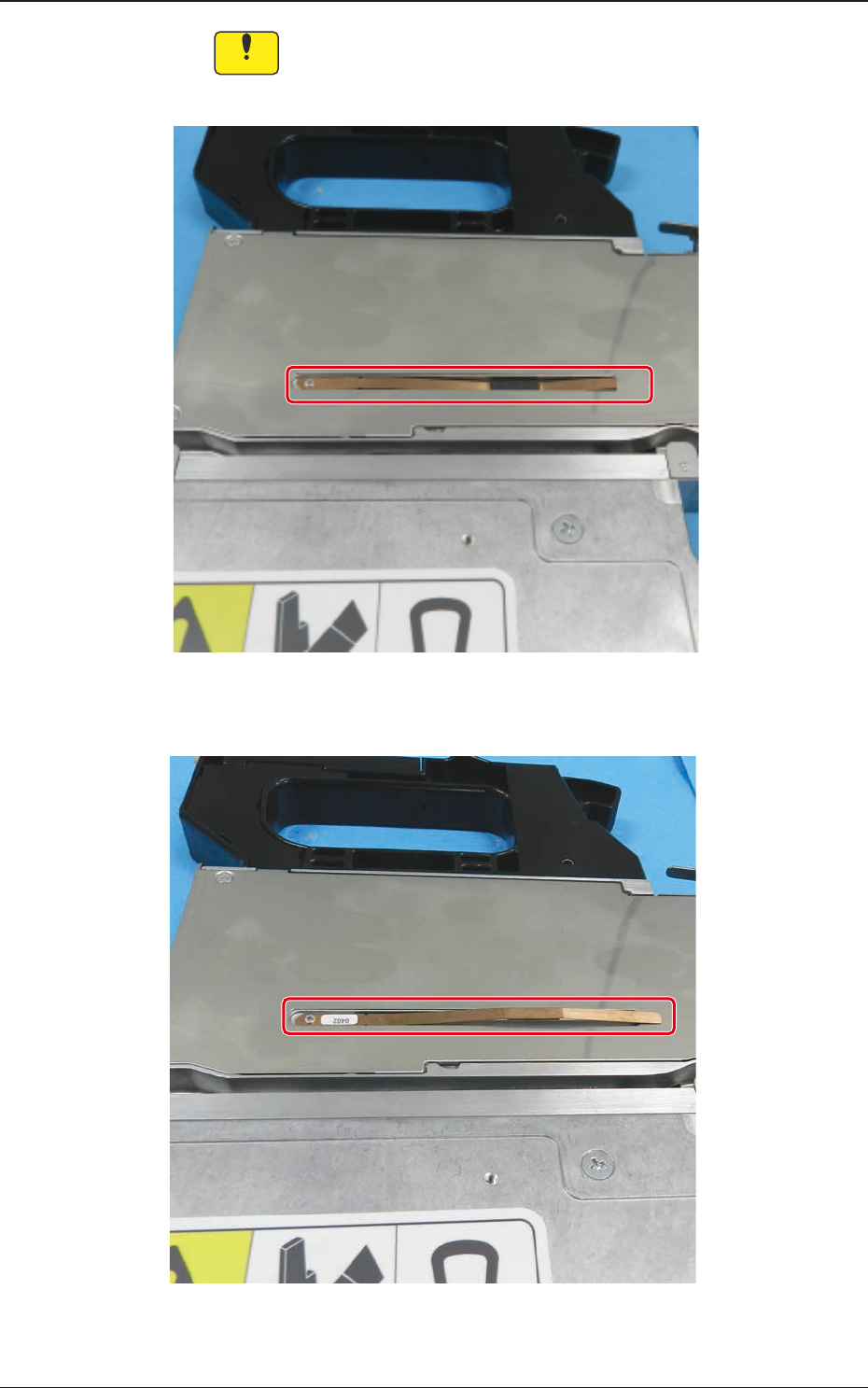

House the magnetic plate paying attention to its front and rear, so

that the magnetic plate does not stick out from the cover, as shown

in Fig. B24.

Correct:

The magnetic plate is housed under the cover.

Incorrect:

The magnetic plate sticks out of the cover.

Fig. B24

1209-001

2.6 Handling of Magnet Plate

OM-1743

2-19
