User Manual SIPLACE S-27 HM 3 Technical data
Software version SR.503.xx 07/2003 US Edition 3.10 PCB conveyor
103
3.10.3 Dual conveyor
3.10.3.1 Structure
3

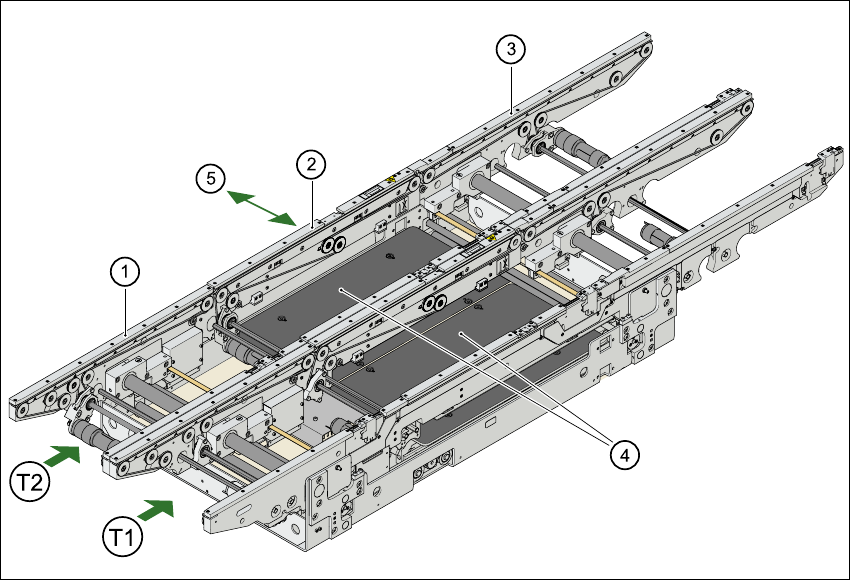

Fig. 3.10 - 2 PCB conveyor - dual conveyor
(1) Input conveyor
(2) Center conveyor
(3) Output conveyor
(4) Lifting table
(5) Width adjustment
T1 Conveyor track 1
T2 Conveyor track 2
3 Technical data User Manual SIPLACE S-27 HM
3.10 PCB conveyor Software version SR.503.xx07/2003 US Edition
104
3.10.3.2 Technical data – dual conveyor
3
Fixed conveyor side Right (standard), left (optional)
Maximum component height
6 mm for the 12-segment Collect&Place head
8.5 mm for the 6-segment Collect&Place head
PCB format 50 mm x 50 mm to 508 mm x 216 mm
2" x 2" to 20" x 8.5"
Long board: up to 610 mm (24"), (option)
PCB thickness 0.5 mm to 4.5 mm
Max. PCB warpage Up: 4.5 mm - PCB thickness
On bottom: 0.3 mm + PCB thickness
Clearance on PCB underside Standard: 25 mm
Option: max. 40 mm
PCB transport height 830 mm ± 15 mm (standard)
900 mm ± 15 mm (optional)
930 mm ± 15 mm (optional)
950 mm ± 15 mm (SMEMA: optional)
Type of interface Siemens (standard), (SMEMA optional)
Component-free PCB handling edge 3 mm
PCB changeover time 2.5 s
Conveyor mode Synchronous or asynchronous
Components on each conveyor Synchronous: different, asynchronous: same
PCB width on each conveyor Same
Ink spot recognition Synchronous: not possible, asynchronous: possible
Automatic width adjustment Synchronous: not possible, asynchronous: possible
User Manual SIPLACE S-27 HM 4 Setting up the placement machine
Software version SR.503.xx 07/2003 US Edition 4.1 Transport dimensions
105
4 Setting up the placement machine
4.1 Transport dimensions
4

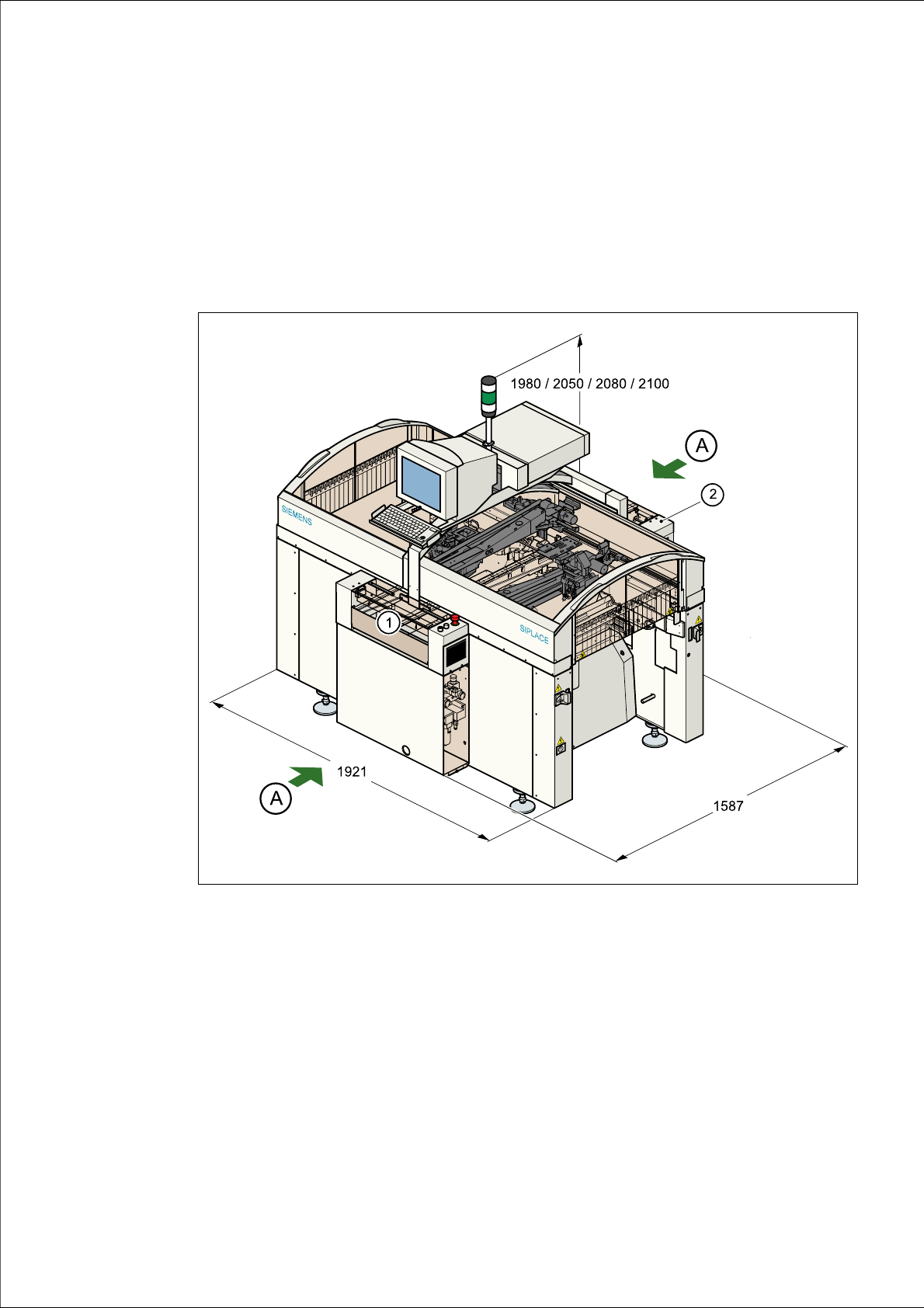

Fig. 4.1 - 1 Dimensions of the placement machine during transportation and setting up
4
(A) Points for attaching the fork-lift truck (fork length 1600 mm)
(1) Input conveyor
(2) Output conveyor
4
The standard PCB conveyor height is 830 mm 15 mm. The standard overall height of the
machine is 1980 mm. For a PCB conveyor height of 950 mm (SMEMA option), this gives an
overall height of 2100 mm.
