User Manual SIPLACE S-27 HM 6 Component handling
Software version SR.503.xx 07/2003 US Edition 6.6 Matrix tray changer
155

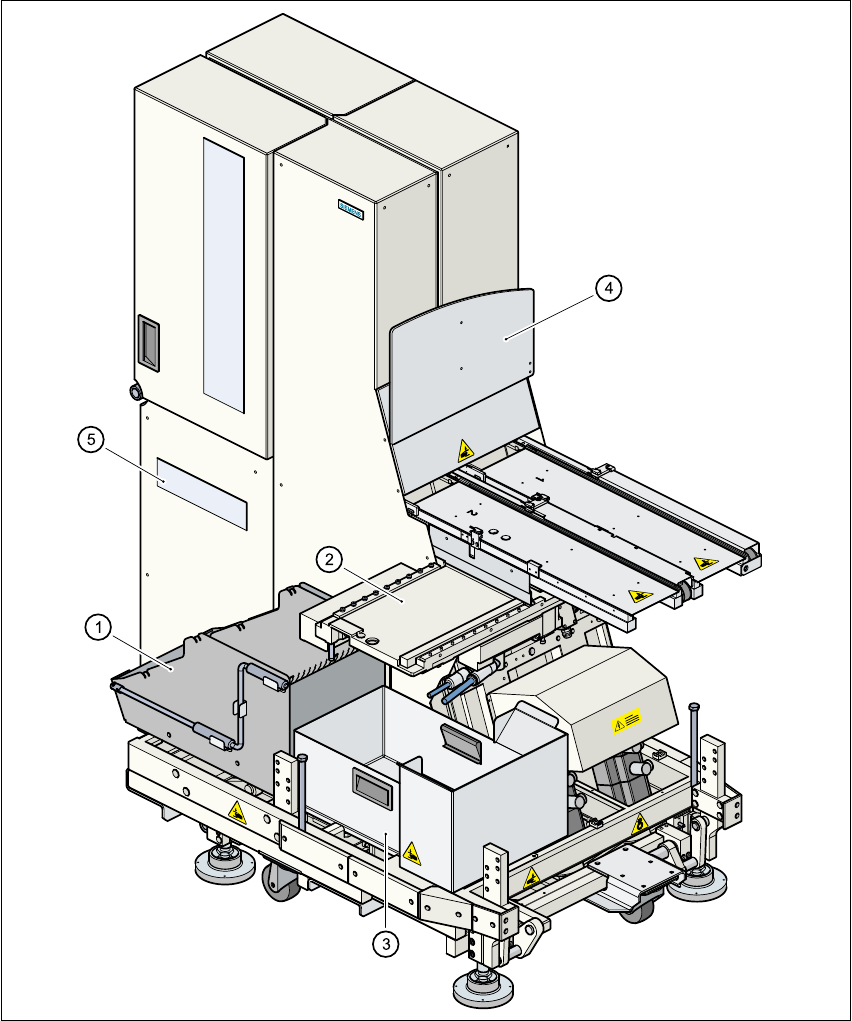

Fig. 6.6 - 2 Matrix tray changer, front view
(1) Tape container
(2) Integral component feeder table with 9 locations
(3) Waste tape container
(4) Guard for the inside of the SIPLACE machine
(5) Display panel for statuses, warning and faults
6 Component handling User Manual SIPLACE S-27 HM
6.6 Matrix tray changer Software version SR.503.xx07/2003 US Edition
156
6.6.3 Principle of the matrix tray changer
The matrix tray changer can be used to store and change up to 80 waffle trays fully automatically.
The levels (storage locations in the towers) for the waffle trays are numbered consecutively in
ascending order from bottom to top.
The towers move independently of one another in the vertical direction until the selected maga-
zine is within range of the feed axis. The feed axis transports the waffle tray from the tower into
the access area of the placement head.
6.6.4 Technical data
6.6.4.1 Dimensions, weight, other data
6
Dimensions (L x W x H) 1350 mm x 775 mm x 1499 mm
Weight (basic equipment) Approx. 500 kg (incl. cassettes and waffle pack tray
carriers)
Weight (partly equipped) Approx. 532 kg (including components)
Weight (fully equipped) Approx. 600 kg (incl. tape reels and feeders)
Weight (moved mass) Approx. 43.5 kg per tower
Cassette size (L x W x H) 354.1 mm x 154.8 mm x 131 mm
Weight of cassette Approx. 7.5 kg
Vertical stroke 502.5 mm
(1st to 40th waffle-pack tray carrier)
Horizontal stroke Approx. 640 mm (between reference position and com-
ponent position)
Spacing from one level to next 11 mm
Spacing from one cassette to next 134.5 mm
Storage capacity 80 waffle pack tray carriers for waffle pack magazines
Waffle-pack tray carrier
Size (L x W x H)
Changeover time (over 5 levels)
371 mm x 146 mm x 10.1 mm
2 s
Load per unit area on mounting foot/roll 2.78 kg/cm²
or 4.01 kg/cm² (fully equipped)
Minimum component size (L x W) 5 mm x 5 mm
Max. component height 15.5 mm (When using components larger than
7.62 mm remove every second waffle pack tray carrier)
User Manual SIPLACE S-27 HM 6 Component handling
Software version SR.503.xx 07/2003 US Edition 6.6 Matrix tray changer
157
6.6.4.2 Electrical ratings
6
6
6.6.4.3 Noise emissions
6
6
6.6.4.4 Permitted environmental factors
6
6
6.6.5 Operation, maintenance, service
The manuals supplied with the matrix tray changer contain extensive documentation on how to
operate, maintain and service the matrix tray changer.
Supply voltage 3 x 400 VAC, 50 Hz (Europe)
3 x 208 VAC, 60 Hz (USA)
Total power 3.5 kW
Rated current 2.7 A at 3 x 400 VAC
4.2 A at 3 x 208 VAC
Fuses 3 x 16 A
Rated power consumption of the
largest consumer
2 A
Maximum noise emissions 80 dB (A)
Room temperature Between 15 °C and 35 °C
Atmospheric humidity 30 - 75%
(but no higher than 45% on average in order to prevent
any possibility of condensation on the machine).
