User Manual SIPLACE S-27 HM 6 Component handling
Software version SR.503.xx 07/2003 US Edition 6.2 Technical data for the feeders
133
6.2 Technical data for the feeders
The following pages contain diagrams of all the feeders, technical data and the feeder setting
options on the placement system.
6.2.1 8 mm S II feeder

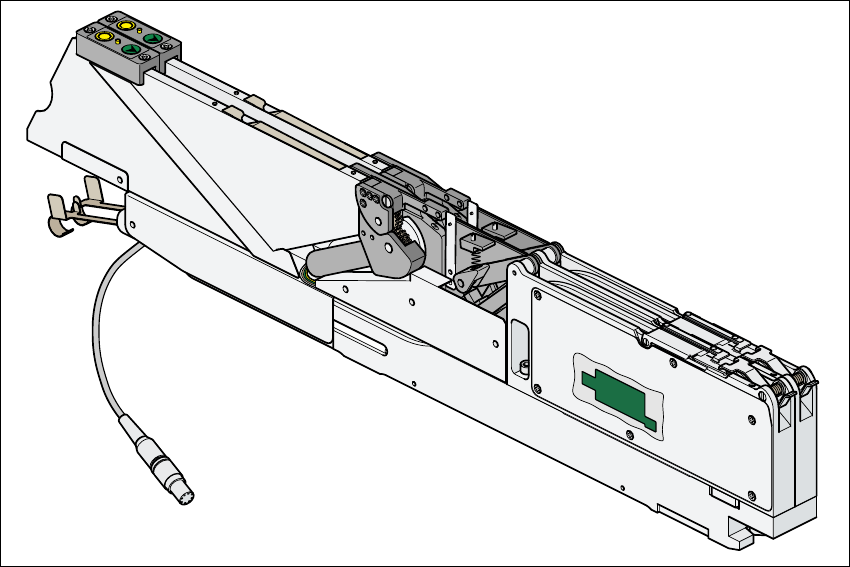

Fig. 6.2 - 1 8 mm S II feeder
Item no. 00141096-xx
Width 30.6 mm
Tracks per feeder 2
Assigned locations 1
Maximum number of feeders 2 x 20
Stock of components for 7" reels approx. 10,000
Transport distance (variable) 2 mm / 4 mm
6 Component handling User Manual SIPLACE S-27 HM
6.2 Technical data for the feeders Software version SR.503.xx07/2003 US Edition
134
6.2.2 3 x 8 mm S feeder

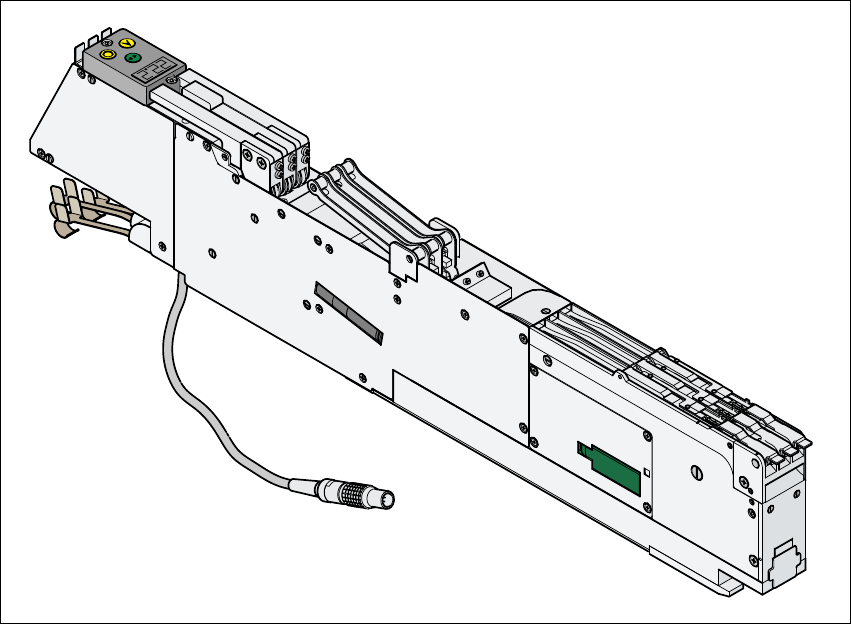

Fig. 6.2 - 2 3 x 8 mm S feeder
Item no. 00141098-xx
Width 30.6 mm
Tracks per feeder 3
Assigned locations 1
Maximum number of feeders 2 x 20
Stock of components for 7" reels approx. 10,000
Transport distance (variable) 2 mm / 4 mm
User Manual SIPLACE S-27 HM 6 Component handling
Software version SR.503.xx 07/2003 US Edition 6.2 Technical data for the feeders
135
6.2.3 3 x 8 mm S feeder for 0201/0402 components
Fig. 6.2 - 3 3 x 8 mm S feeder for 0201/0402 components
Item no. 00141099-xx
Width 30.6 mm
Component range 0201, 0402
Tracks per feeder 3
Assigned locations 1
Maximum number of feeders 2 x 20
Stock of components for 7" reels approx. 10,000 to 15.000
Transport distance (variable) 2 mm / 4 mm
