2 Operational safety User Manual SIPLACE S-27 HM
2.3 Laser classification Software version SR.503.xx07/2003 US Edition
40
2.3.3 Laser class 2
The following modules are assigned to laser class 2:
– Laser light barrier, placement area 1 in the PCB conveyor
– Laser light barrier, placement area 2 in the PCB conveyor
– PCB barcode scanner
2
2
Laser radiation
Do not look into beam!
User Manual SIPLACE S-27 HM 2 Operational safety
Software version SR.503.xx 07/2003 US Edition 2.4 Safety instructions for operating the machine
41
2.4 Safety instructions for operating the machine
2.4.1 Safety instructions for docking and undocking the component trolley
WARNING 2
Æ Never reach into the gap between the component trolley and the machine base (item 1).
Æ Always check that the component trolley is docked on the placement system before connecting
or disconnecting the power cable for the component trolley at the socket on the placement sys-
tem (item 2).
Æ NEVER connect the connecting cable for the component trolley to the socket on the placement
system and then operate the component trolley outside the machine via the compressed air
control unit (item 3).

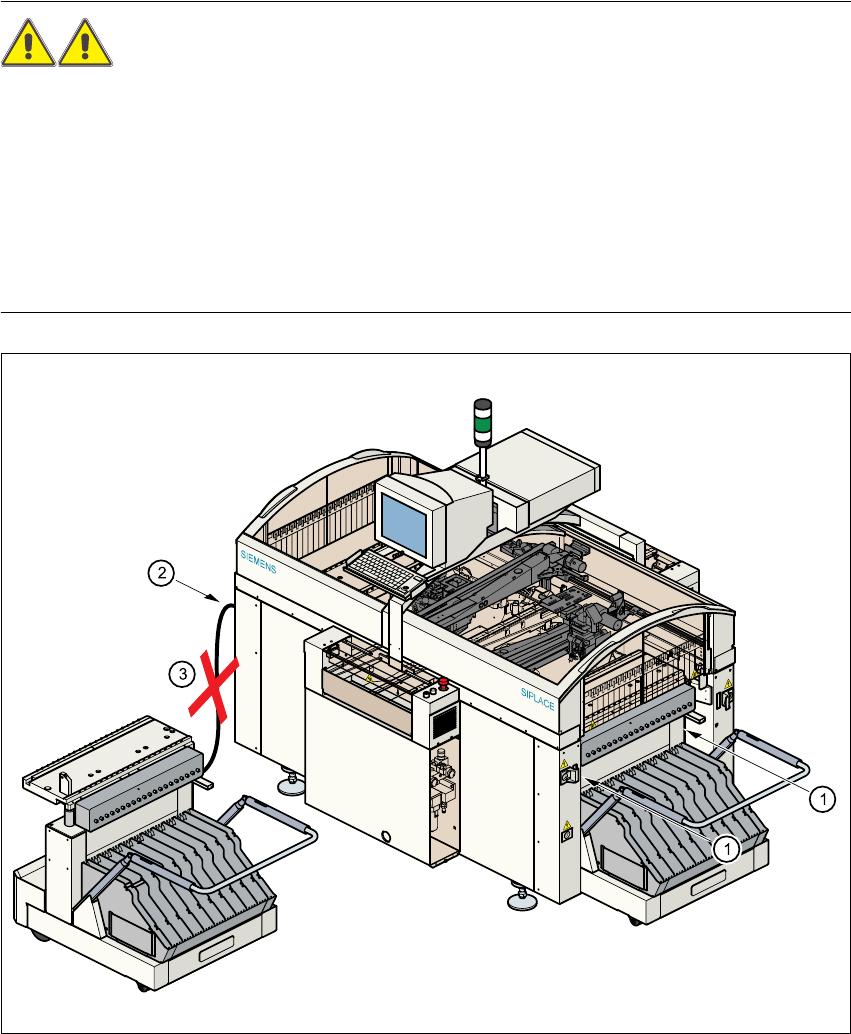

Fig. 2.4 - 1 Safety instructions on the component trolley
2 Operational safety User Manual SIPLACE S-27 HM
2.4 Safety instructions for operating the machine Software version SR.503.xx07/2003 US Edition
42
2.4.2 Safety instructions for lowering the component table bed
WARNING DANGER OF CRUSHING 2
When lowering the component trolley tray, never reach into the gap between the feeders and the
used tape channel. 2
2.4.3 Safety instructions for changing the table height of component trolleys
WARNING DANGER OF CRUSHING 2
Remove all the feeders from the table bed before you change the height of the table on the com-
ponent trolley.
Take care during the conversion work because the table bed is very heavy. Conversion of the
component trolley for other PCB transport heights is described in section 4.3 on page 108. 2
