User Manual SIPLACE S-27 HM 3 Technical data
Software version SR.503.xx 07/2003 US Edition 3.3 Electrical and pneumatic connection points
79
WARNING
The placement system is supplied with 3 x 400 VAC or 3 x 208 VAC US version) ± 5%, 50/60 Hz
main power voltage. This means that some parts of the system carry potentially lethal voltages -
even when switched off at the main power switch. Death, serious injury or considerable damage
may result if this automatic placement system is handled incorrectly. 3
WARNING
Never disconnect compressed air lines while they are pressurized. Risk of injury. 3
3 Technical data User Manual SIPLACE S-27 HM
3.4 Technical data – ratings Software version SR.503.xx07/2003 US Edition
80
3.4 Technical data – ratings
3.4.1 Technical data – electrical ratings
3
3.4.2 Technical data – compressed air supply
3
3.4.3 Technical data – compressed air specification
Maximum particle size by density, based on ISO/DIS 8573-1 (class 1)
3.4.4 Technical data – noise emissions
3
3.4.5 Technical data – permissible ambient factors
3
Supply voltage 3 x 400 VAC ± 5 %; 50/60 Hz (Europe)
3 x 208 VAC ± 5 %; 50/60 Hz (USA)
3 x 200 VAC ± 5 %; 50/60 Hz (Japan, option)
Fuses 3 x 16 A (3 x 400 VAC, 3 x 208 VAC, 3 x 200 VAC)
Total connected load 5 kVA
Total power 2 kW
Power failure Max. 20 msec
Compressed air pressure Min. 0.55 MPa (5.5 bar) to 0.8 MPa (8 bar), ½"-connection
Compressed air consumption 400 Nl/min.
Operating pressure Set to 0.52 MPa (5.2 bar)
Particle size 0.1 µm
Particle density 0.1 mg/m³
Maximum oil content (class 1) Particle density 0.01 mg/m³
Pressure dewpoint (class 4) Dewpoint +3°
Max. noise emission 74dB(A)
Room temperature Between 15°C and 35°C
Atmospheric humidity 30 to 80%
(but no higher than 45% on average in order to prevent
any possibility of condensation on the machine).
User Manual SIPLACE S-27 HM 3 Technical data
Software version SR.503.xx 07/2003 US Edition 3.5 Dimensions and weight of the placement system
81
3.5 Dimensions and weight of the placement system
3.5.1 Dimensions of the placement system
3

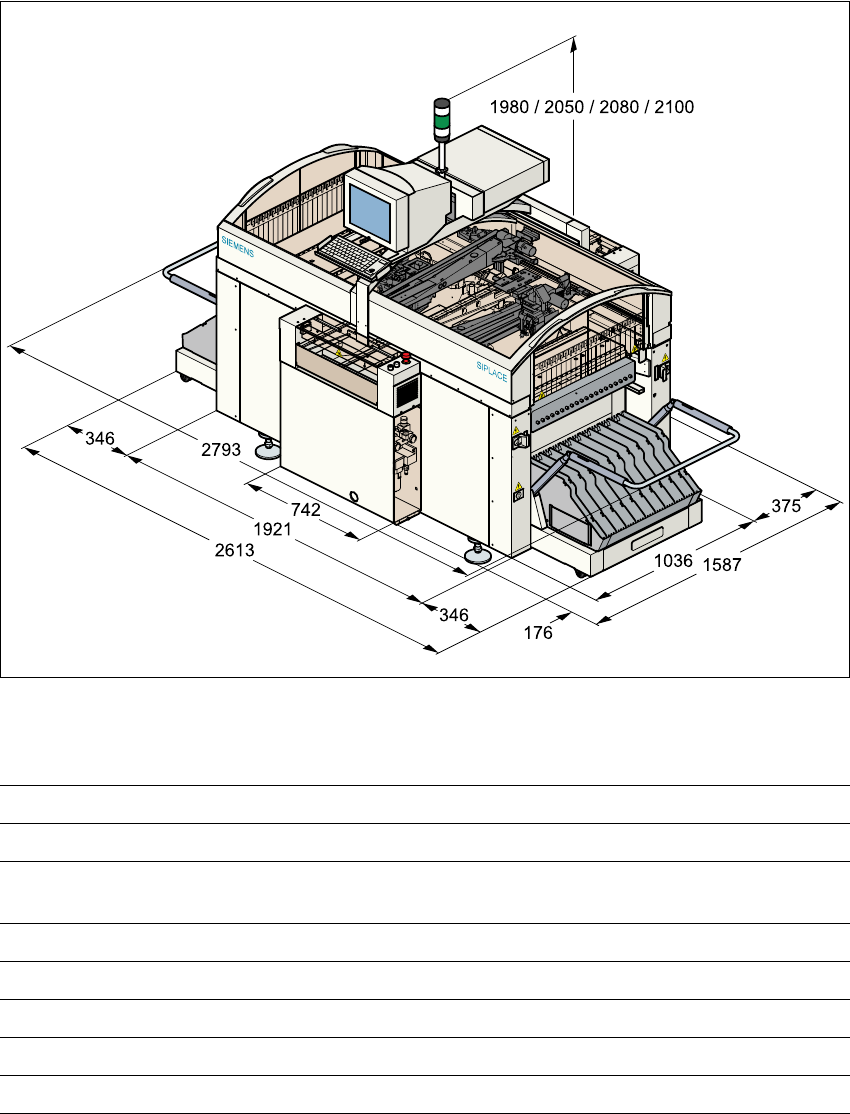

Fig. 3.5 - 1 Dimensions of the placement system in millimeters
3.5.2 Technical data - dimensions, weight
3
Length 1587 mm including conveyor belts
Width 2641 mm including brackets
Height with warning lamp 1980 mm (standard height) /
2050 mm / 2080 mm/ 2100 mm SMEMA
Ground clearance 120 mm standard height
Weight of basic module 1500 kg
Weight fully equipped Approx. 2000 kg
Admissible load per unit area on foundation 1000 kg/m² min.
Load per unit area on mounting feet 4.42 kg/cm²
