2.4.7 Safety instructions for the tape cutter
2

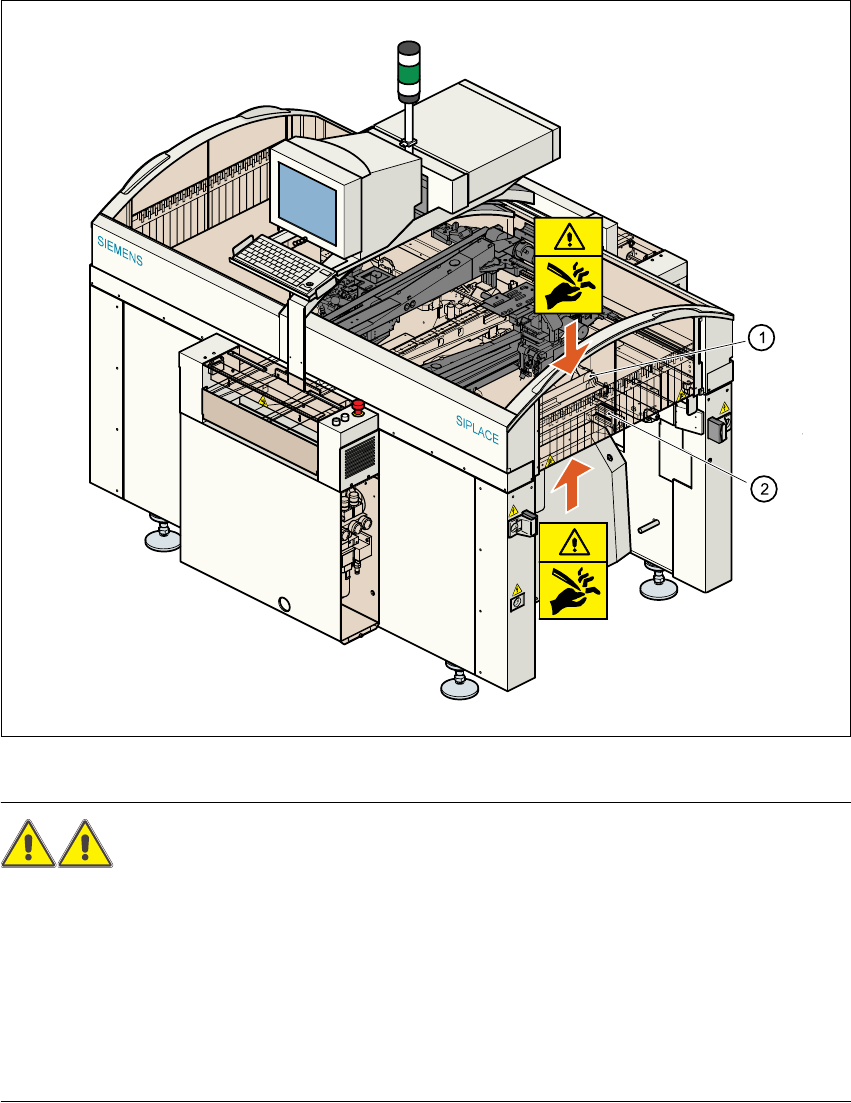

Fig. 2.4 - 4 Safety instructions for the tape cutter
WARNING RISK OF CUTTING! 2
Æ Never reach down into the used tape channel (Pos. 1) from above with bare hands, even if the
machine is switched off.
Æ Similarly, even when the machine is switched off, do not reach up from below with bare hands
into the ejection opening of the tape cutter (Pos. 2), e.g. to remove waste used tape.
Æ To remove waste used tape, it is essential to switch the machine off first and put on very sub-
stantial protective gloves, as the tape cutter bars are extremely sharp.
2 Operational safety User Manual SIPLACE S-27 HM
2.4 Safety instructions for operating the machine Software version SR.503.xx07/2003 US Edition
48
2.4.8 Safety instructions for docking and undocking the matrix tray changer
2

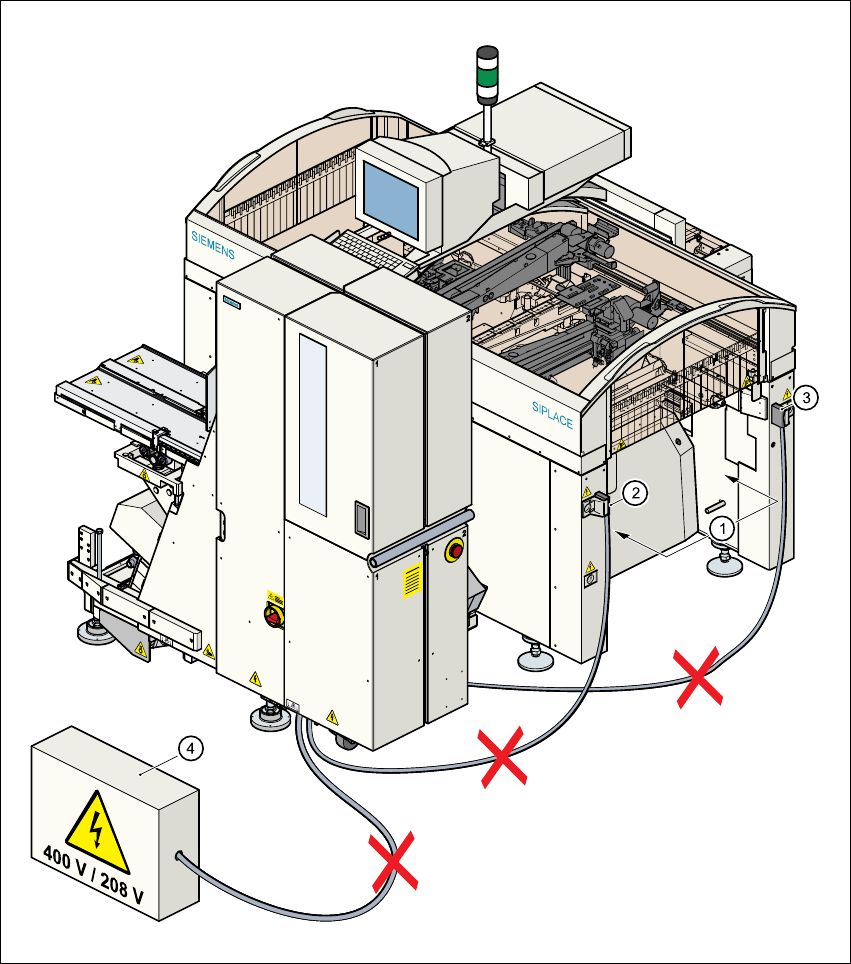

Fig. 2.4 - 5 Safety instructions for coupling and uncoupling the matrix tray changer
2
(1) Gap when the matrix tray changer is coupled
(2) Matrix tray changer control cable
(3) Control cable for component feeder table
(4) Power supply connection
User Manual SIPLACE S-27 HM 2 Operational safety
Software version SR.503.xx 07/2003 US Edition 2.4 Safety instructions for operating the machine
49
WARNING 2
Æ NEVER place your hand in the gaps between the matrix tray changer and machine frame (item
1) while the machine is running.
Æ Always couple the matrix tray changer to the machine before connecting or disconnecting the
matrix tray changer control cable at the machine socket (item 2).
Æ Always couple the matrix tray changer to the machine before connecting or disconnecting the
control cable for the matrix tray changer’s integral component feeder table at the machine
socket (item 3).
Æ Always couple the matrix tray changer to the machine before connecting or disconnecting the
power cable from the external power supply (item 4).
Æ NEVER operate the matrix tray changer if it is not coupled to the machine.
