User Manual SIPLAC E S-27 HM 6 Component han dling Software version SR.503.xx 07/2003 US Edition 6.2 Technical data for the feeders 135 6.2. 3 3 x 8 mm S fe eder for 02 01/04 02 components Fig. 6.2 - 3 3 x 8 mm S feeder …
6 Component handling User Manual SIPLACE S-27 HM
6.2 Technical data for the feeders Software version SR.503.xx07/2003 US Edition
134
6.2.2 3 x 8 mm S feeder
Fig. 6.2 - 2 3 x 8 mm S feeder
Item no. 00141098-xx
Width 30.6 mm
Tracks per feeder 3
Assigned locations 1
Maximum number of feeders 2 x 20
Stock of components for 7" reels approx. 10,000
Transport distance (variable) 2 mm / 4 mm
User Manual SIPLACE S-27 HM 6 Component handling
Software version SR.503.xx 07/2003 US Edition 6.2 Technical data for the feeders
135
6.2.3 3 x 8 mm S feeder for 0201/0402 components

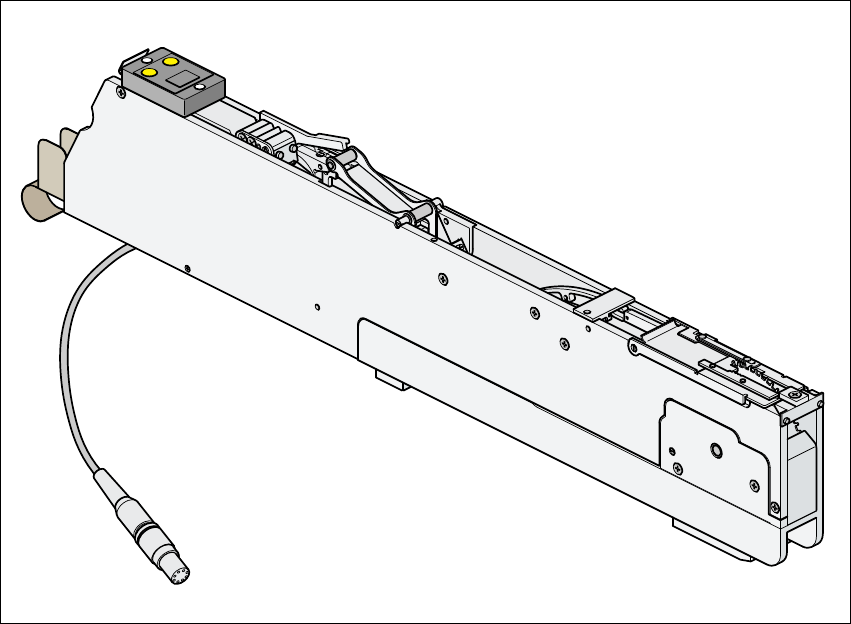

Fig. 6.2 - 3 3 x 8 mm S feeder for 0201/0402 components
Item no. 00141099-xx
Width 30.6 mm
Component range 0201, 0402
Tracks per feeder 3
Assigned locations 1
Maximum number of feeders 2 x 20
Stock of components for 7" reels approx. 10,000 to 15.000
Transport distance (variable) 2 mm / 4 mm
6 Component handling User Manual SIPLACE S-27 HM
6.2 Technical data for the feeders Software version SR.503.xx07/2003 US Edition
136
6.2.4 12/16 mm S feeder
Fig. 6.2 - 4 12/16 mm S feeder
Item no. 00141092-xx
Width 30.6 mm
Tracks per feeder 1
Assigned locations 1
Maximum number of feeders 2 x 20
Stock of components for 7" reels approx. 4000
Transport distance (variable) 4 mm, 8 mm, 12 mm, 16 mm
