6 Component handling User Manual SIPLACE S-27 HM 6.6 Matrix tray changer Software version SR.503.xx07/2003 US Edition 158 6.6.6 Safety inst ructions for docking and undocking 6 Fig. 6.6 - 3 Safety instructions fo r docki…
User Manual SIPLACE S-27 HM 6 Component handling
Software version SR.503.xx 07/2003 US Edition 6.6 Matrix tray changer
157
6.6.4.2 Electrical ratings
6
6
6.6.4.3 Noise emissions
6
6
6.6.4.4 Permitted environmental factors
6
6
6.6.5 Operation, maintenance, service
The manuals supplied with the matrix tray changer contain extensive documentation on how to
operate, maintain and service the matrix tray changer.
Supply voltage 3 x 400 VAC, 50 Hz (Europe)
3 x 208 VAC, 60 Hz (USA)
Total power 3.5 kW
Rated current 2.7 A at 3 x 400 VAC
4.2 A at 3 x 208 VAC
Fuses 3 x 16 A
Rated power consumption of the
largest consumer
2 A
Maximum noise emissions 80 dB (A)
Room temperature Between 15 °C and 35 °C
Atmospheric humidity 30 - 75%
(but no higher than 45% on average in order to prevent
any possibility of condensation on the machine).
6 Component handling User Manual SIPLACE S-27 HM
6.6 Matrix tray changer Software version SR.503.xx07/2003 US Edition
158
6.6.6 Safety instructions for docking and undocking
6

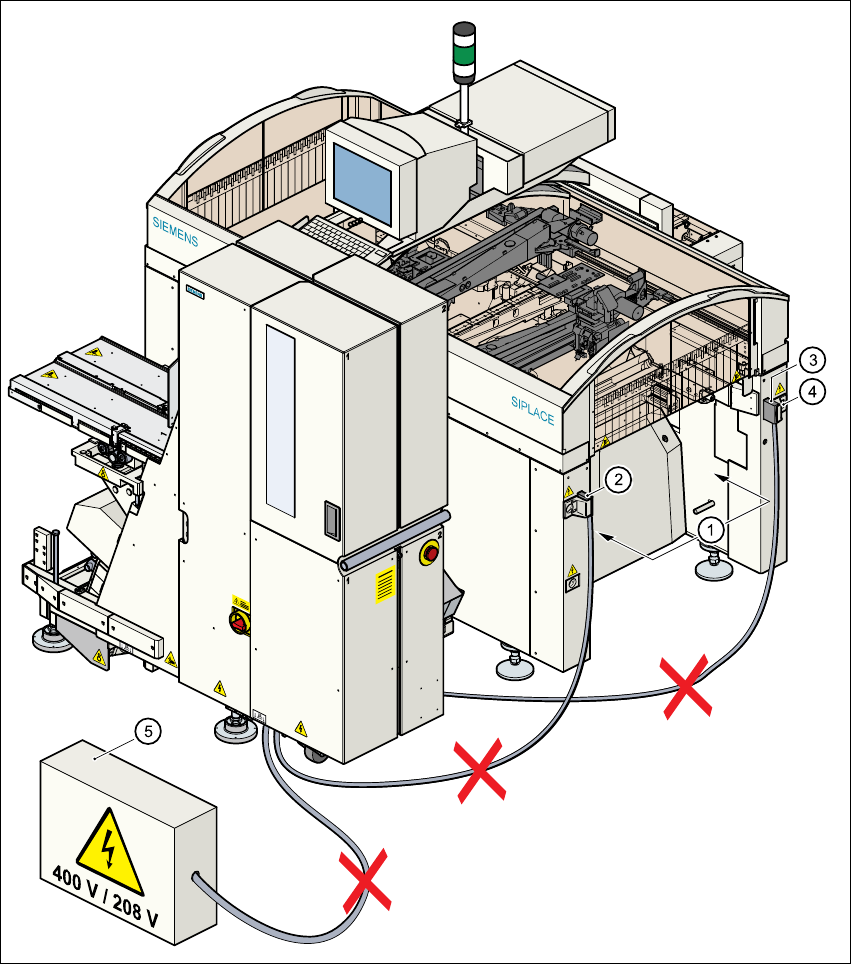

Fig. 6.6 - 3 Safety instructions for docking and undocking the matrix tray changer
(1) Gap when the matrix tray changer is coupled
(2) Matrix tray changer control cable
(3) Control cable for component feeder table
(4) Movable cover
(5) Power supply connection
User Manual SIPLACE S-27 HM 6 Component handling
Software version SR.503.xx 07/2003 US Edition 6.6 Matrix tray changer
159
WARNING 6
Æ NEVER place your hand in the gaps between the matrix tray changer and machine frame
(item 1) while the machine is running.
Æ Always couple the matrix tray changer to the machine before connecting or disconnecting the
matrix tray changer control cable at the machine socket (item 2).
Æ Always couple the matrix tray changer to the machine before connecting or disconnecting the
control cable for the matrix tray changer’s integral component feeder table at the machine
socket (item 3).
Æ Always couple the matrix tray changer to the machine before connecting or disconnecting the
power cable from the external power supply (item 4).
Æ NEVER operate the matrix tray changer if it is not docked to the machine.
