3.6 Controls
3.6.1 Overview
3

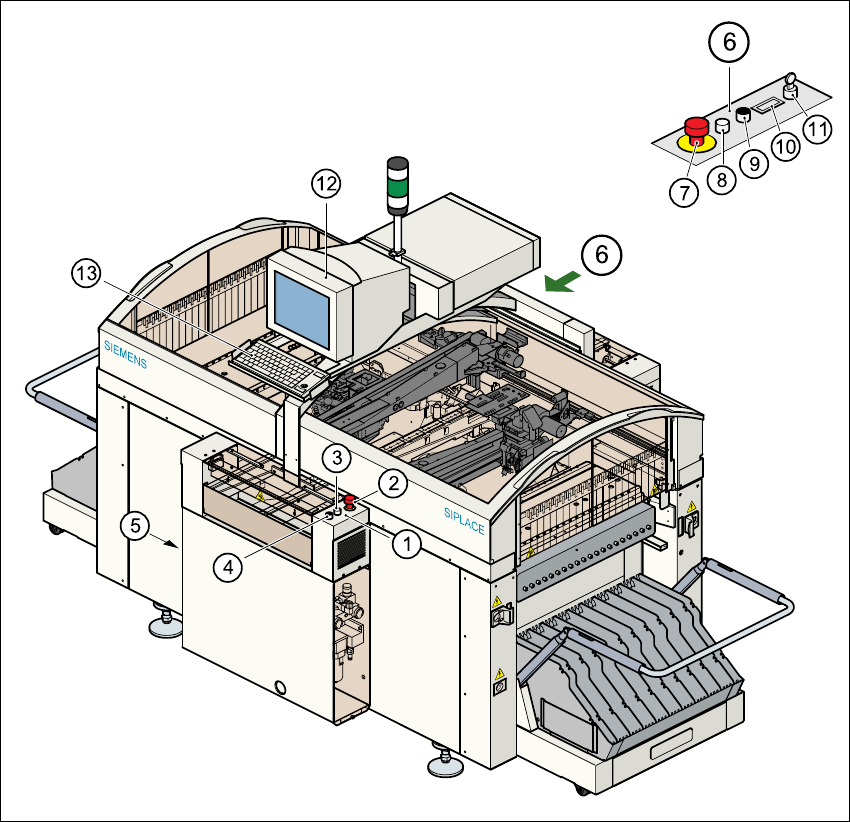

Fig. 3.6 - 1 Controls
(1) Operator panel, input conveyor (2) Emergency stop button
(3) Start button (white) (4) Stop button (black)
(5) Main switch (6) Operator panel, output conveyor
(7) Emergency stop button (8) Start button (white)
(9) Stop button (black) (10) Component counter
(11) Key-operated switch (12) Touchscreen
(13) Keyboard with trackball 3
3 Technical data User Manual SIPLACE S-27 HM
3.6 Controls Software version SR.503.xx07/2003 US Edition
84
3.6.2 Description
All the controls can be reached by a 1.60 m tall person.
Main switch
The main switch is used to switch the power supply to the placement system on and off.
RISK OF DEATH
Some parts inside the placement system carry potentially lethal voltages - even when switched off
at the main switch. 3
Key switch
In normal mode, the key switch is set to "0". The key should be removed and kept in a safe place.
It must only be turned to position "I" (set-up mode) by authorized personnel, and then only for
certain maintenance and servicing work.
Stop button
This button is used to stop the placement system.
Start button
This button starts the placement system after it has been switched on or after faults have been
eliminated.
Emergency stop button
The emergency stop button latches in the ON position when pressed. The power supply to the
gantry axes, the components changeover tables, conveyors, and used tape cutters is interrupted
and the voltage supplied to the star axes of the placement heads is reduced. Turn the button to
release it.
Component counter
The component counter displays the number of components processed.
Station computer, monitor and keyboard
The station computer, monitor and keyboard are mounted on a pivoting console on the place-
ment system’s central crossbeam. The station computer is a desktop model with a Pentium pro-
cessor. The operating system is WINDOWS NT 4.0. The SIPLACE graphical user interface,
which is based on the Windows standard, is used to operate and monitor the placement system.
User Manual SIPLACE S-27 HM 3 Technical data
Software version SR.503.xx 07/2003 US Edition 3.6 Controls
85
A 15" color touch screen monitor with a resolution of 1024 x 768 pixels provides the screen dis-
play. Both the keyboard and the touch screen can be used to enter data. The ultra-flat IBM-com-
patible PC keyboard incorporates a trackball for controlling the mouse.
Indicator lamps
The sequence of colors is white - green - white. These lamps are used to signal operating sta-
tuses and malfunctions of the placement system.
Component barcode reader (option)
There is a compartment for the Datalogic DL 910 component barcode reader between the moni-
tor and keyboard. The barcode reader enables the components to be set up and topped up
quickly and reliably.
3.6.3 Ergonomic arrangement of the controls
Figure 3.6 - 1 on page 83 provides an overview of the position of the controls. They are subdi-
vided into the following groups:
Operating panel on the PCB input side with
– Start button
– Stop button
– Emergency stop button
– Main switch (on the left-hand side)
Operating panel on the PCB output side with
– Emergency stop button
– Start button
– Stop button
– Component counter
– Key-operated switch
Console on the central crossbeam with
– Station computer
– Touchscreen
– Keyboard and
– Component barcode reader (option)
