User Manual SIPLAC E S-27 HM 6 Component han dling Software version SR.503.xx 07/2003 US Edition 6.2 Technical data for the feeders 137 6.2.5 12 mm S feed er for cap acitor s based on powdered me t al, model C/D Fig. 6.2…
6 Component handling User Manual SIPLACE S-27 HM
6.2 Technical data for the feeders Software version SR.503.xx07/2003 US Edition
136
6.2.4 12/16 mm S feeder
Fig. 6.2 - 4 12/16 mm S feeder
Item no. 00141092-xx
Width 30.6 mm
Tracks per feeder 1
Assigned locations 1
Maximum number of feeders 2 x 20
Stock of components for 7" reels approx. 4000
Transport distance (variable) 4 mm, 8 mm, 12 mm, 16 mm
User Manual SIPLACE S-27 HM 6 Component handling
Software version SR.503.xx 07/2003 US Edition 6.2 Technical data for the feeders
137
6.2.5 12 mm S feeder for capacitors based on powdered metal, model C/D

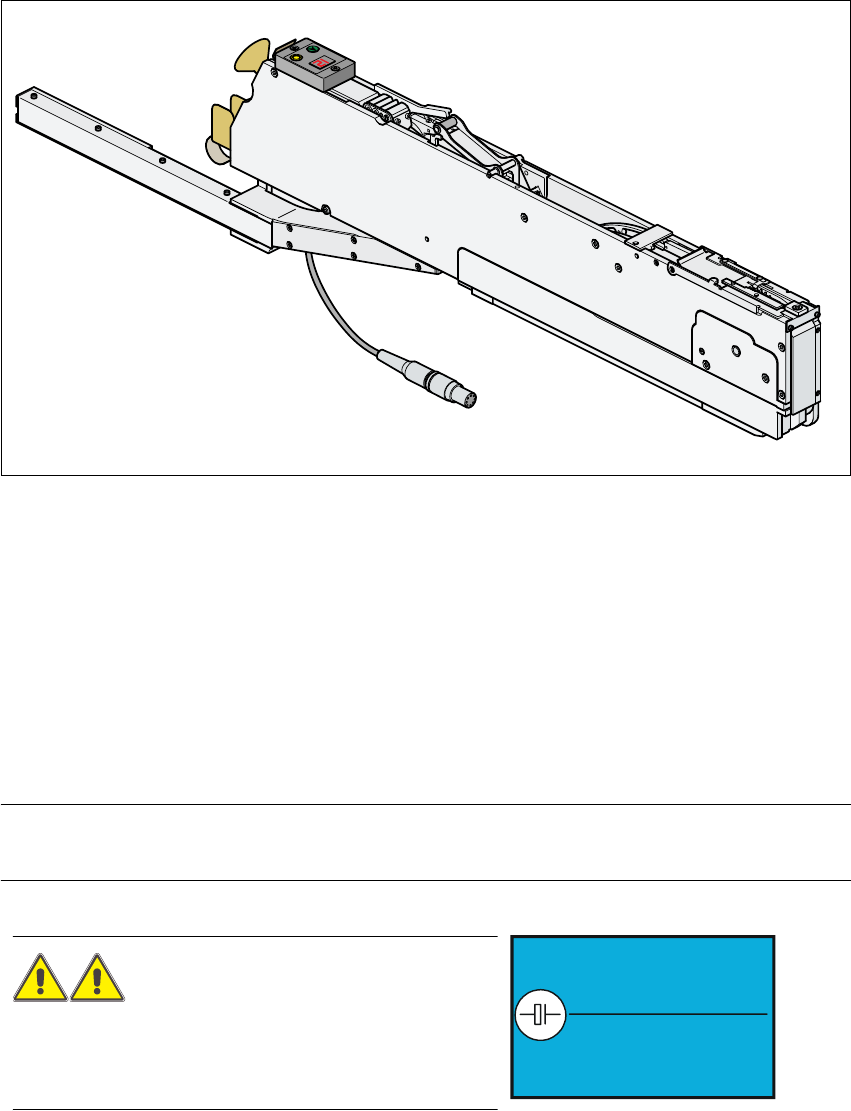

Fig. 6.2 - 5 12 mm S feeder for capacitors based on powdered metal, model C/D
6
6
Item no. 00141118-xx
Width 30.6 mm
Tracks per feeder 1
Assigned locations 1
Maximum number of feeders 2 x 20
Stock of components for 7" reels approx. 4000
Maximum tape height 3.6 mm
Transport distance (variable) 4 mm, 8 mm, 12 mm, 16 mm
NOTE: 6
Using this feeder type you can adjust the height of the tape support at the pick-up position. 6
WARNING 6
Use only feeders, labeled as shown above, when
feeding capacitors based on metal-powder
(e.g. tantalum). 6
Feeder label (enlarged)
Approved for
capacitors based on
metal-powder
Freigegeben für
Kondensatoren auf
Metallpulver-Basis
6 Component handling User Manual SIPLACE S-27 HM
6.2 Technical data for the feeders Software version SR.503.xx07/2003 US Edition
138
6.2.6 12 mm S feeder for capacitors based on powdered metal, model E

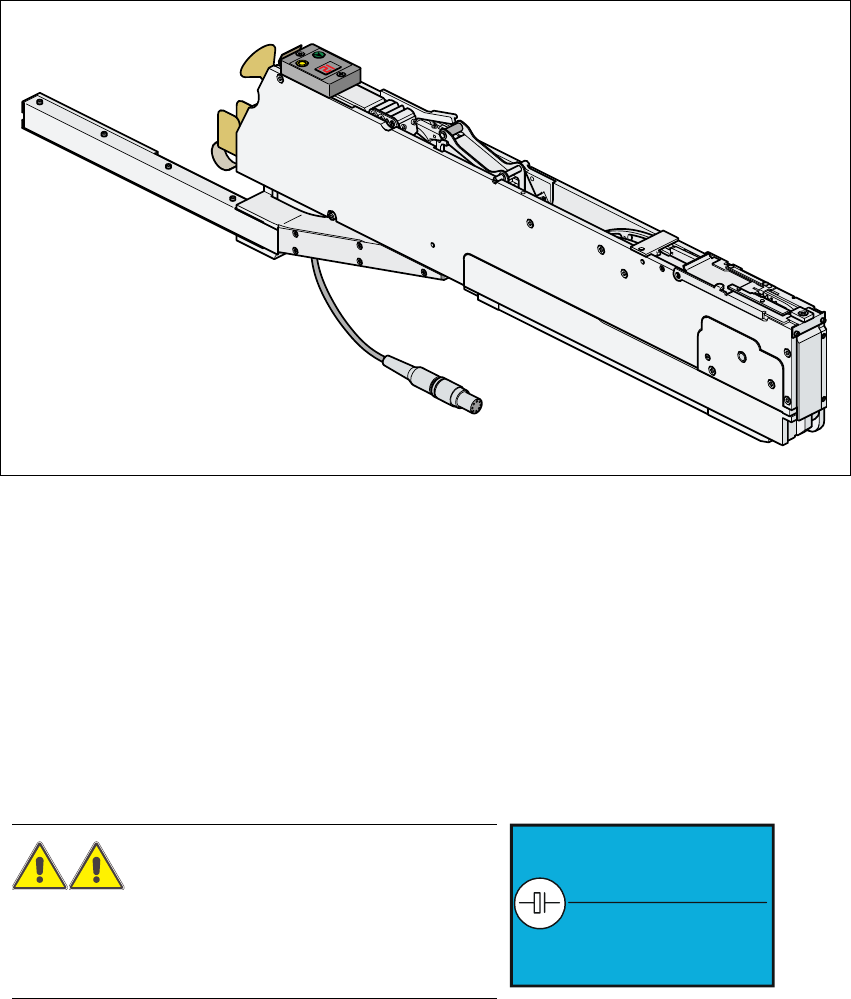

Fig. 6.2 - 6 12 mm S feeder for capacitors based on powdered metal, model E
6
6
Item no. 00141117-xx
Width 30.6 mm
Tracks per feeder 1
Assigned locations 1
Maximum number of feeders 2 x 20
Stock of components for 7" reels approx. 4000
Maximum tape height 3.6 mm
Transport distance (variable) 4 mm, 8 mm, 12 mm, 16 mm
WARNING 6
Use only feeders, labeled as shown above, when
feeding capacitors based on metal-powder (e.g.
tantalum). 6
Feeder label (enlarged)
Approved for
capacitors based on
metal-powder
Freigegeben für
Kondensatoren auf
Metallpulver-Basis
