7.7.7 Position detection
There is a position detection fiducial on every magazine.

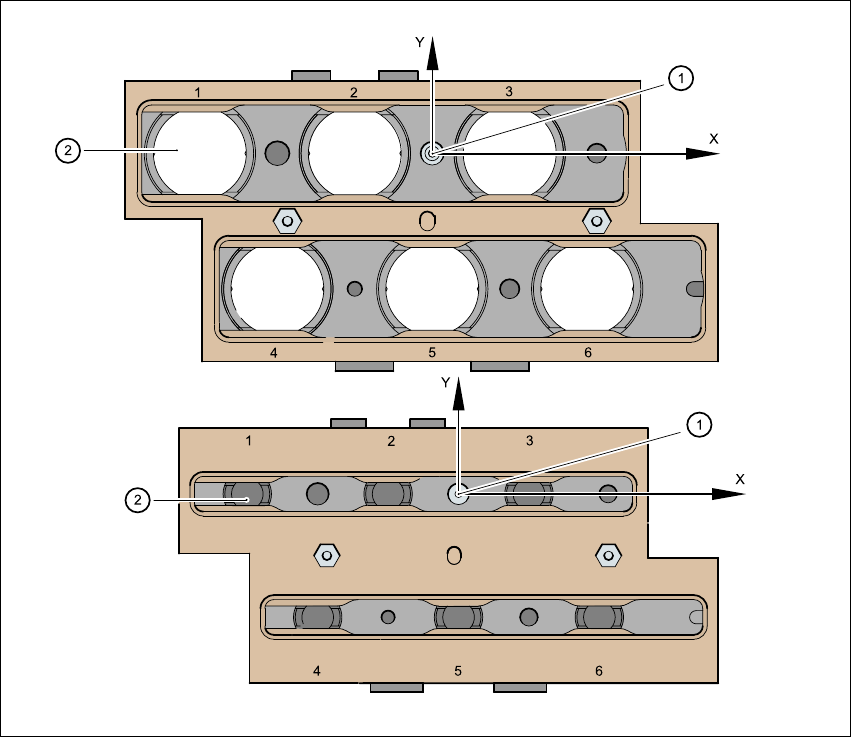

Fig. 7.7 - 5 Nozzle changer - position detection; 6-segment Collect&Place head
(1) Positioning fiducial
(2) Position of the nozzles in the magazine with respect to the positioning fiducial
User Manual SIPLACE S-27 HM 7 Station extensions
Software version SR.503.xx 07/2003 US Edition 7.8 DCA camera on the 12-segment Collect&Place head
197
7.8 DCA camera on the 12-segment Collect&Place
head
7

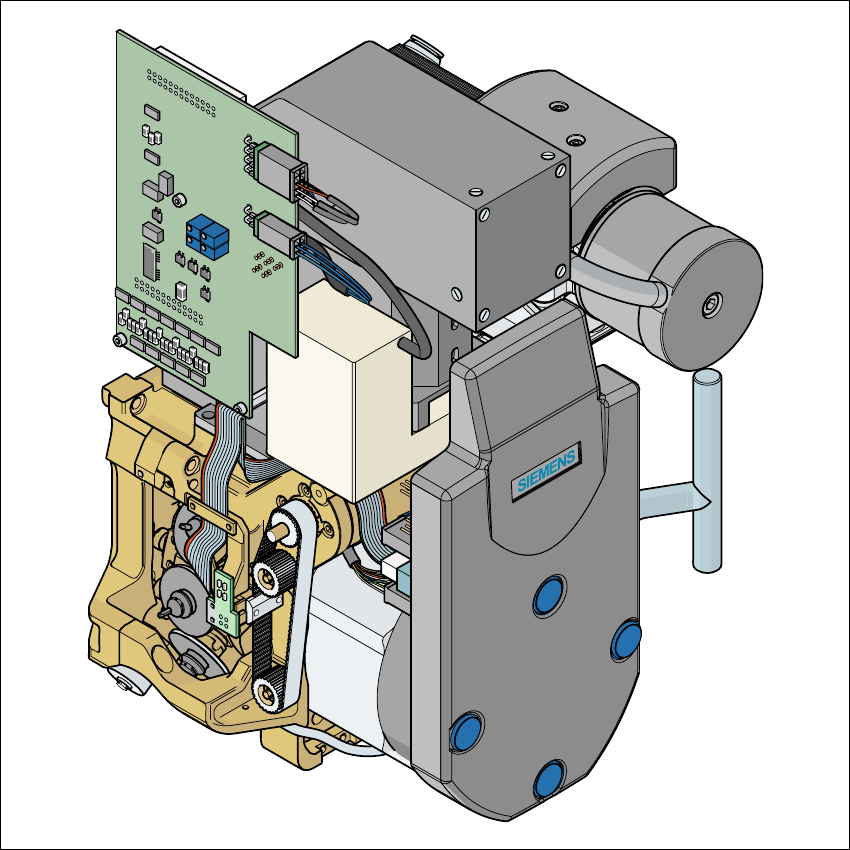

Fig. 7.8 - 1 DCA camera on the 12-segment Collect&Place head
7
(1) DCA camera
(2) 12-segment Collect&Place head
7 Station extensions User Manual SIPLACE S-27 HM
7.8 DCA camera on the 12-segment Collect&Place head Software version SR.503.xx07/2003 US Edition
198
7.8.1 Description
With the DCA camera, the 12-segment Collect&Place head is able to optically center and place
components of the order of magnitude of 0.6 mm x 0.3 mm to 13 mm x 13 mm. The DCA pack-
age optimizes the speed and accuracy when placing high-speed flip chips and bare die compo-
nents.
7.8.2 Technical data
Component range 0201 to 13 mm x 13 mm
Component specification
Max. height
Min. lead pitch
Min. bump pitch
Min. ball/bump diameter
Min. dimensions
Max. dimensions
Max. weight
6 mm
0.4 mm
0.2 mm
0.11 mm
0.6 mm x 0.3 mm
13 mm x 13 mm
2 g
Programmable set-down force 2.4 to 5.0 N
Nozzle types 9 xx
Max. placement rate 13,250 comp/h
Angular accuracy ± 0.7° / 4 sigma
Placement accuracy ± 90 µm / 4 sigma
