7 Station extensions User Manual SIPLACE S-27 HM
7.1 Nozzle changer for the 12-segment Collect&Place head Software version SR.503.xx07/2003 US Edition
166
7.1.5 Empty the reject bin
The reject bin can hold approx. 50 nozzles in the 9xx nozzle family. To prevent malfunctions in
the placement process, you must empty the reject bin at regular intervals.

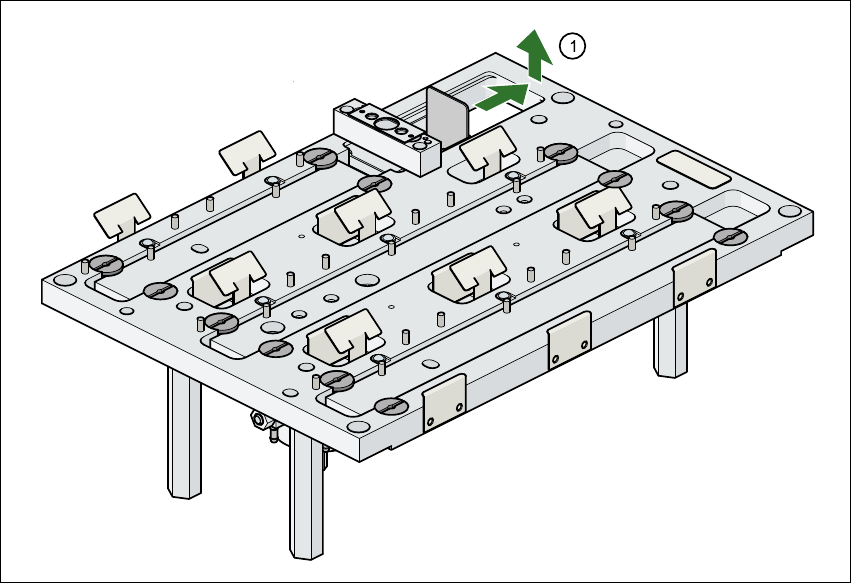

Fig. 7.1 - 3 Emptying the reject bin, 12-segment Collect&Place head
7
(1) Remove the reject bin
Æ Pull the reject bin out of its retainer in the direction indicated by the arrow, and lift the bin out
of its holder.
Æ To return the reject bin, push it back into the retainer.
User Manual SIPLACE S-27 HM 7 Station extensions
Software version SR.503.xx 07/2003 US Edition 7.1 Nozzle changer for the 12-segment Collect&Place head
167
7.1.6 Changing the magazine
Æ To remove the magazine, push the spring hook (item 1 in Fig. 7.1 - 4) away from the maga-
zine. Lift the magazine out of the carrier.
7

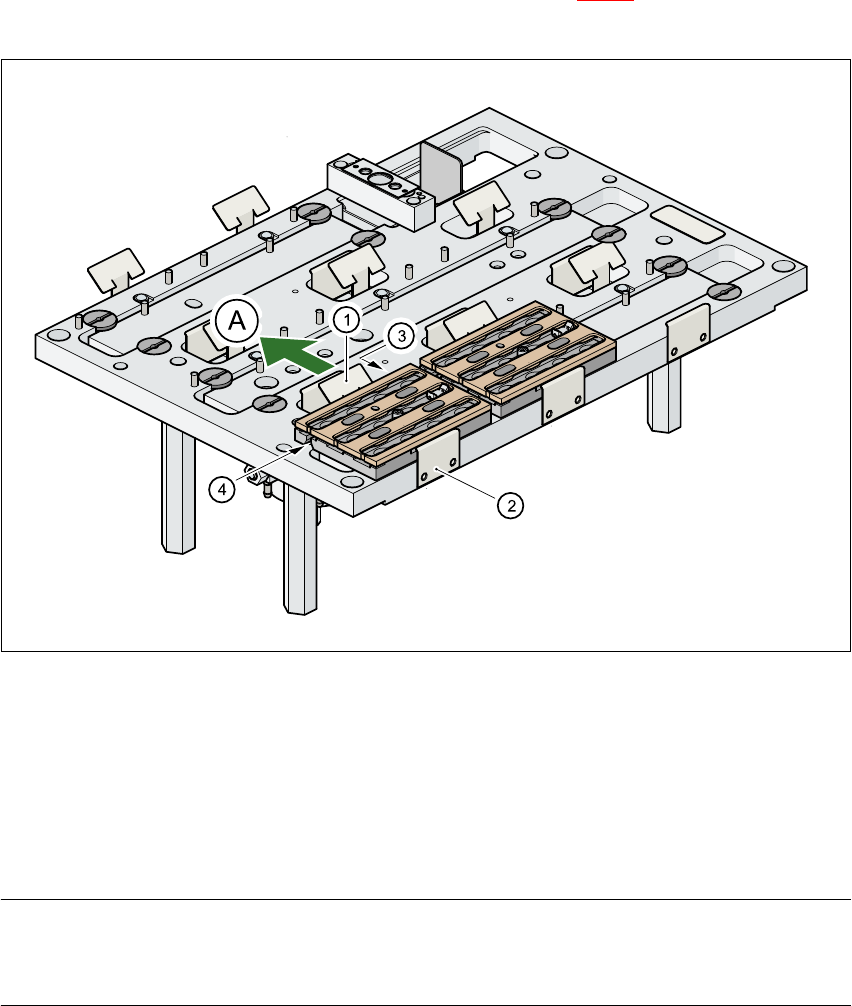

Fig. 7.1 - 4 Changing the magazine
(1) Spring hook
(2) Retaining clamp
(3) Centering hole
(4) Slot
(A) Push the spring hook away from the magazine
PLEASE NOTE
Make sure that you insert the magazine so that the centering pins slide into the centering hole
(item 3) and slot (item 4). 7
Æ First place the side of the magazine with the numbered nozzles 1, 2, 3 and 4 on the base. The
retaining clamp (item 2) must slide into the slot in the magazine.
Æ Push the spring hook away from the magazine.
Æ Press the magazine so that it lies flat on the base, then release the spring hook. The spring
hook must latch into place.
7 Station extensions User Manual SIPLACE S-27 HM
7.1 Nozzle changer for the 12-segment Collect&Place head Software version SR.503.xx07/2003 US Edition
168
7.1.7 Nozzle changer - position detection
There is a position detection fiducial on every magazine.

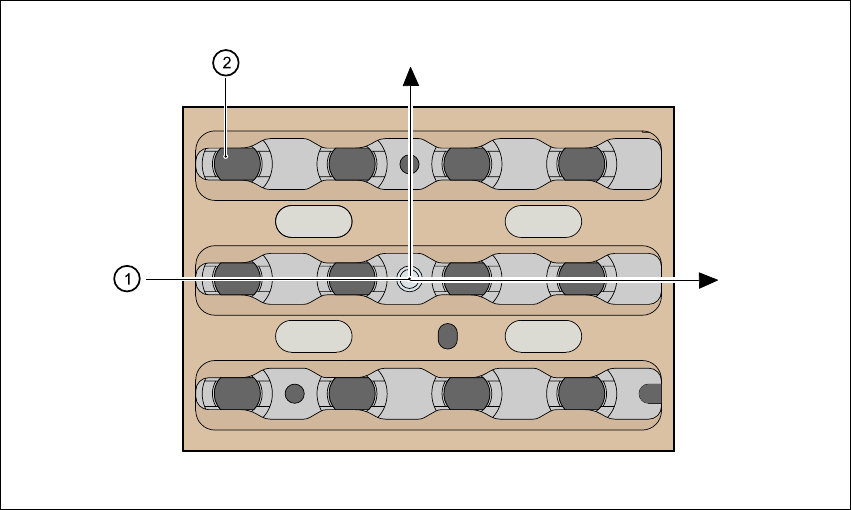

Fig. 7.1 - 5 Nozzle changer - position detection
(1) Positioning fiducial
(2) Position of the nozzles in the magazine with respect to the positioning fiducial
12 3
4
10 11
12
Y
X
9
5
6
7
8
