User Manual SIPLACE S-27 HM 7 Station extensions
Software version SR.503.xx 07/2003 US Edition 7.9 DCA camera
199
7.9 DCA camera
7.9.1 Structure
7

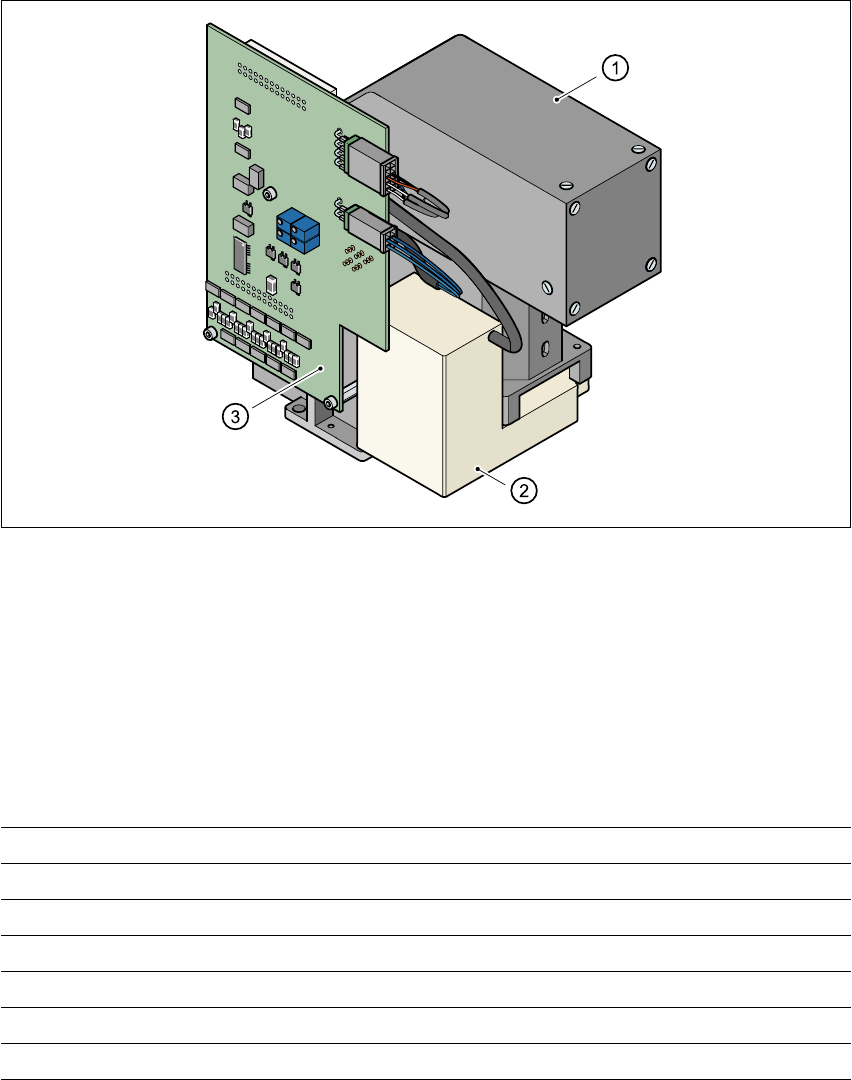

Fig. 7.9 - 1 DCA camera
7
(1) DCA camera, lens and illumination
(2) Camera amplifier
(3) Illumination control
7
7.9.2 Technical data
7
7
Component dimensions 0.6 mm x 0.3 mm to 13 mm x 13 mm
Range of components 0201 up to 13 mm x 13 mm, flip-chip, bare die
Min. lead pitch 0.4 mm
Minimum bump pitch 0.2 mm
Min. ball/bump diameter 0.11 mm
Field of vision 15.7 mm x 15.7 mm
Method of illumination Front lighting (four levels programmable as required)
7 Station extensions User Manual SIPLACE S-27 HM
7.10 DCA camera on the 6-segment Collect&Place head Software version SR.503.xx07/2003 US Edition
200
7.10 DCA camera on the 6-segment Collect&Place head
7

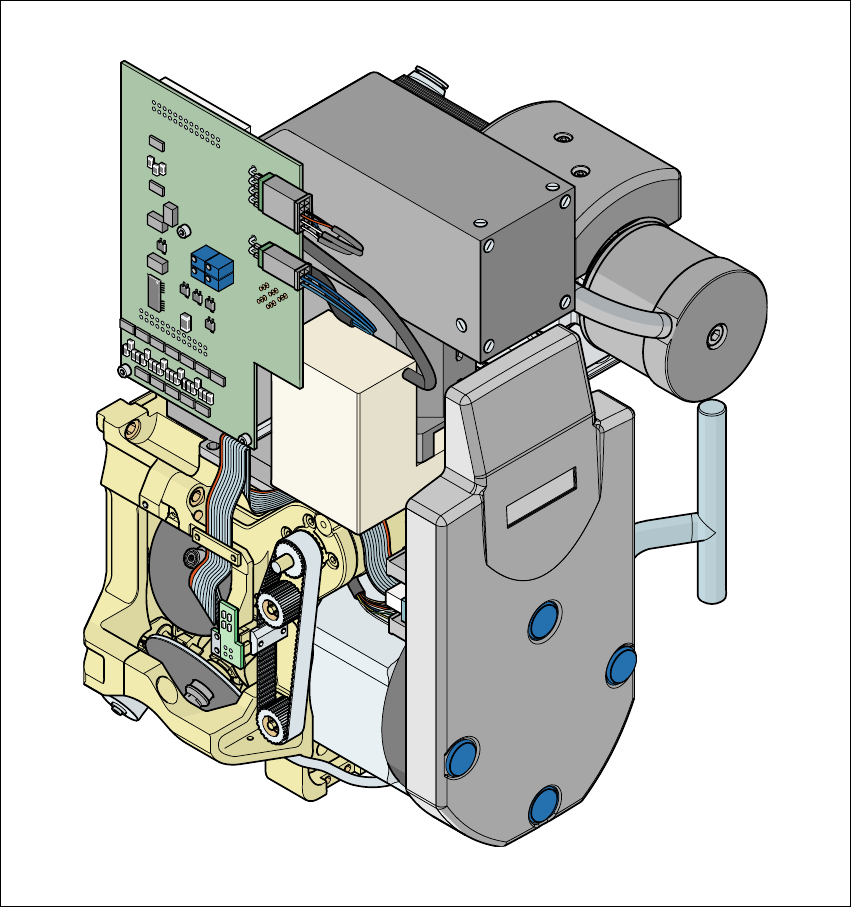

Fig. 7.10 - 1 DCA camera on the 6-segment Collect&Place head
7
(1) DCA camera
(2) 6-segment Collect&Place head
User Manual SIPLACE S-27 HM 7 Station extensions
Software version SR.503.xx 07/2003 US Edition 7.10 DCA camera on the 6-segment Collect&Place head
201
7.10.1 Description
With the DCA camera, the 6-segment Collect&Place head is able to optically center and place
components of the order of magnitude of 0.6 mm x 0.3 mm to 13 mm x 13 mm. The DCA package
optimizes the speed and accuracy when placing high-speed flip chips and bare die components.7
7.10.2 Technical data
7
PLEASE NOTE 7
The technical data for the DCA camera is given in section 7.9 on page 199. 7
Component range Flip-chip, bare die, components up to 13 mm x 13 mm
Component specification
Max. height
Min. lead pitch
Min. bump pitch
Min. ball/bump diameter
Min. dimensions
Max. dimensions
Max. weight
8.5 mm
0.4 mm
0.2 mm
0.11 mm
0.6 mm x 0.3 mm
13 mm x 13 mm
5 g
Programmable set-down force 2.4 to 5.0 N
Nozzle types 8 xx, 9 xx
Max. placement rate 8,750 comp/h
Angular accuracy
± 0.3 µm / 4 sigma (gantry 1)
± 0.4 µm / 4 sigma (gantry 2)
Placement accuracy ± 70 µm / 4 sigma (gantry 1)
± 80 µm / 4 sigma (gantry 2)
