User Manual SIPLACE S-27 HM 3 Technical data
Software version SR.503.xx 07/2003 US Edition 3.6 Controls
85
A 15" color touch screen monitor with a resolution of 1024 x 768 pixels provides the screen dis-
play. Both the keyboard and the touch screen can be used to enter data. The ultra-flat IBM-com-
patible PC keyboard incorporates a trackball for controlling the mouse.
Indicator lamps
The sequence of colors is white - green - white. These lamps are used to signal operating sta-
tuses and malfunctions of the placement system.
Component barcode reader (option)
There is a compartment for the Datalogic DL 910 component barcode reader between the moni-
tor and keyboard. The barcode reader enables the components to be set up and topped up
quickly and reliably.
3.6.3 Ergonomic arrangement of the controls
Figure 3.6 - 1 on page 83 provides an overview of the position of the controls. They are subdi-
vided into the following groups:
Operating panel on the PCB input side with
– Start button
– Stop button
– Emergency stop button
– Main switch (on the left-hand side)
Operating panel on the PCB output side with
– Emergency stop button
– Start button
– Stop button
– Component counter
– Key-operated switch
Console on the central crossbeam with
– Station computer
– Touchscreen
– Keyboard and
– Component barcode reader (option)
3 Technical data User Manual SIPLACE S-27 HM
3.6 Controls Software version SR.503.xx07/2003 US Edition
86
3.6.3.1 Controls on the input and output sides of the placement system
The controls on the input and output sides of the placement system perform identical functions.
EMERGENCY STOP buttons, Start and Stop buttons
There is an emergency stop button, a Start button and a Stop button on both the input and output
sides of the PCB conveyor. This arrangement was adopted for the emergency stop buttons
because it enables them to be reached quickly and easily from any position.
In addition, it is important to have an unrestricted view of the placement heads and placement
area during maintenance, servicing and setting up work in order to be able to check all the oper-
ations carried out inside the machine. This particularly important during testing phases or when
starting single functions, for example.
Key switch
The key switch is located on the operating panel on the PCB output belt. It is only needed for set-
ting up and servicing work so, for reasons of efficiency, it is positioned near the Start and Stop
buttons.
Main switch
The main switch is part of the power supply unit, so it is positioned on the left-hand side of the
PCB input belt. It is located here because it is only needed for servicing and maintenance work
and is therefore not subject to frequent use.
3.6.3.2 Controls on the placement system console
Station computer, monitor and keyboard
The station computer, monitor and keyboard are all mounted on the console. They are arranged
so that any person who is at least 1.60 m tall can work comfortably and efficiently.
Component barcode reader
The two component trolleys for supplying components are arranged on the right and left of the
placement system. For this reason, the component barcode reader is also located in the central
console. It enables the operators to work comfortably and efficiently during the component set-up
and filling checks.
User Manual SIPLACE S-27 HM 3 Technical data
Software version SR.503.xx 07/2003 US Edition 3.7 Gantries
87
3.7 Gantries
3.7.1 Position
3

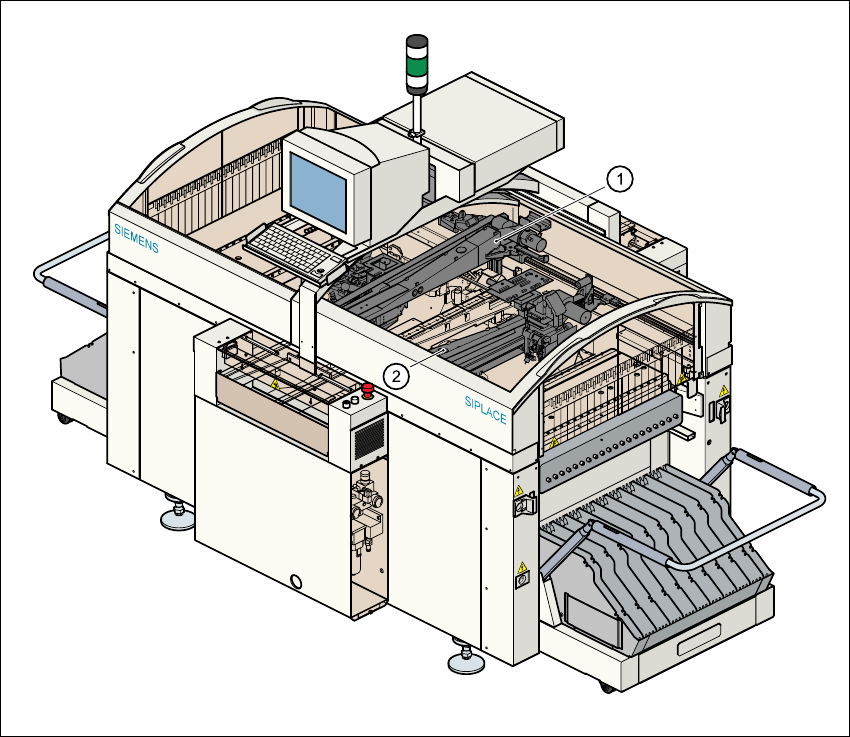

Fig. 3.7 - 1 Position of the gantries
(1) Gantry 1
(2) Gantry 2
The gantry system consists of two functional groups
– X axis and
–Y axis
