2 Operational safety User Manual SIPLACE S-27 HM 2.2 Warning labels Software version SR. 503.xx07/2003 US Edition 36 2.2.5 W arning label W1 10 on the EMERGENCY ST OP buttons 2 W ar ning la bel W1 10 (nu mber per placem …
User Manual SIPLACE S-27 HM 2 Operational safety
Software version SR.503.xx 07/2003 US Edition 2.2 Warning labels
35
2.2.4 Warning label W211 on the CEKON plug
2
Warning label W 211 (number per placement system: 1)
2
Fig. 2.2 - 7 Warning label W211 on the CEKON plug
2
Warning label W211, part no. 03009351-01
2
RESIDUAL VOLTAGE!
Wait 30 seconds after disconnecting the main power plug from the mains to
allow any residual voltages to dissipate.
NAFTA region: Hazardous Voltage
Residual power at plug prongs and wire ends will cause death or serious
injury. Avoid contact with power plug and/or wire ends for 30 seconds
2 Operational safety User Manual SIPLACE S-27 HM
2.2 Warning labels Software version SR.503.xx07/2003 US Edition
36
2.2.5 Warning label W110 on the EMERGENCY STOP buttons
2
Warning label W110 (number per placement system: 2)
2

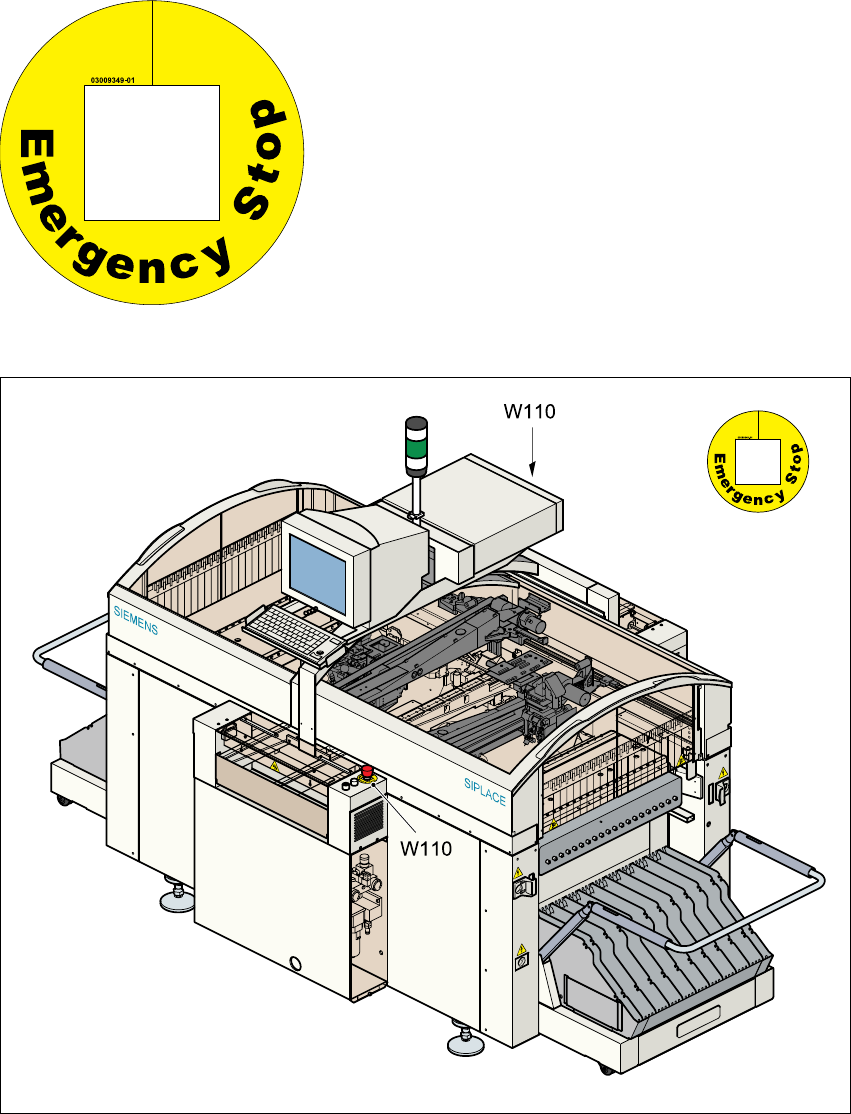

Fig. 2.2 - 8 Warning label W110 on the EMERGENCY STOP buttons
2
Item W110, part no. 03009349-01
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
For Australia, Canada, Mexico and USA,
warning label W110 is affixed to the
mounting kit instead of the yellow ring on
the EMERGENCY STOP buttons.
User Manual SIPLACE S-27 HM 2 Operational safety
Software version SR.503.xx 07/2003 US Edition 2.2 Warning labels
37
2.2.6 Warning label "Danger of crushing" on the component trolley
2
Warning label "Danger of crushing" (number per component trolley: 2)
2

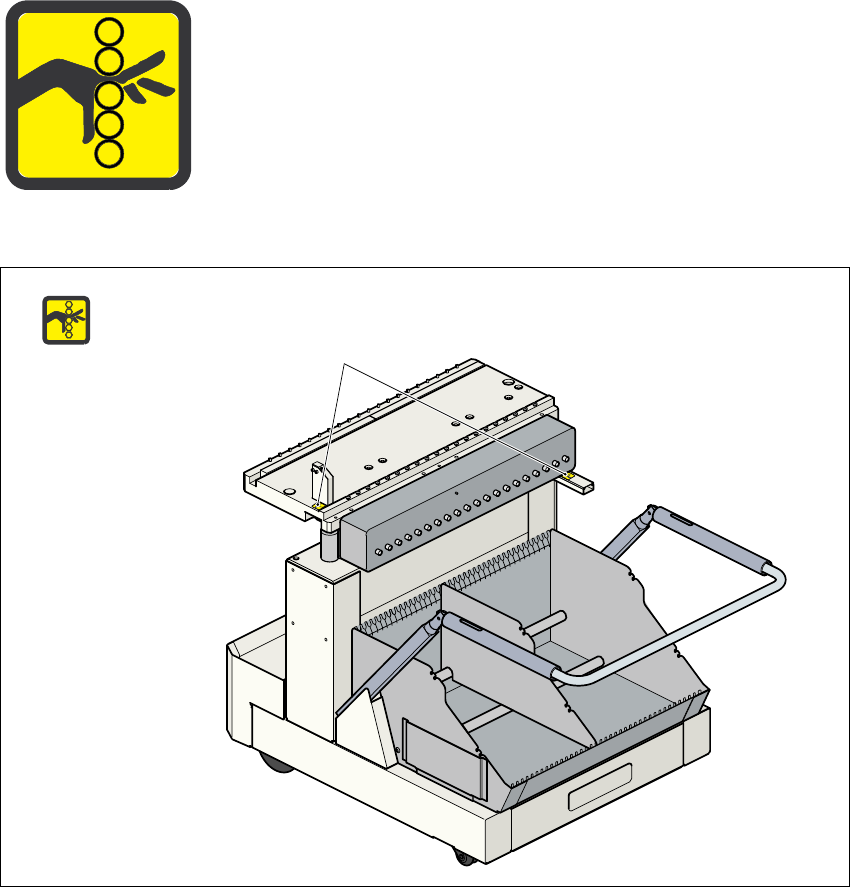

Fig. 2.2 - 9 Warning label "Danger of crushing" on the component trolley
Warning label Danger of crushing, part no. 00343357-01
2
2
2
WARNING DANGER OF CRUSHING!
Do not reach into the danger area while the
component feeder table is descending.
Warning label DANGER OF CRUSHING
