User Manual SIPLAC E S-27 HM 2 Operational safety Software vers ion SR.503.xx 07/2003 US Edition 2.2 Warning labels 33 2.2.2.2 W arning label W20 5 on the used tape channel and on the waste tape chut e 2 Fig. 2.2 - 5 War…
2 Operational safety User Manual SIPLACE S-27 HM
2.2 Warning labels Software version SR.503.xx07/2003 US Edition
32
2.2.2 Warning label W205
2
Item W205 in Figs. 2.2 - 4 and 2.2 - 5 (number per machine: 8)
WARNING 2
If you wish to do work on the tape cutter, you must disconnect the machine from the mains sup-
ply and the compressed air supply.
Wait until the operating pressure has dropped to 0 MPa.
Wear robust protective gloves when working on the tape cutter.
2.2.2.1 Warning label W205 on the tape cutter
2

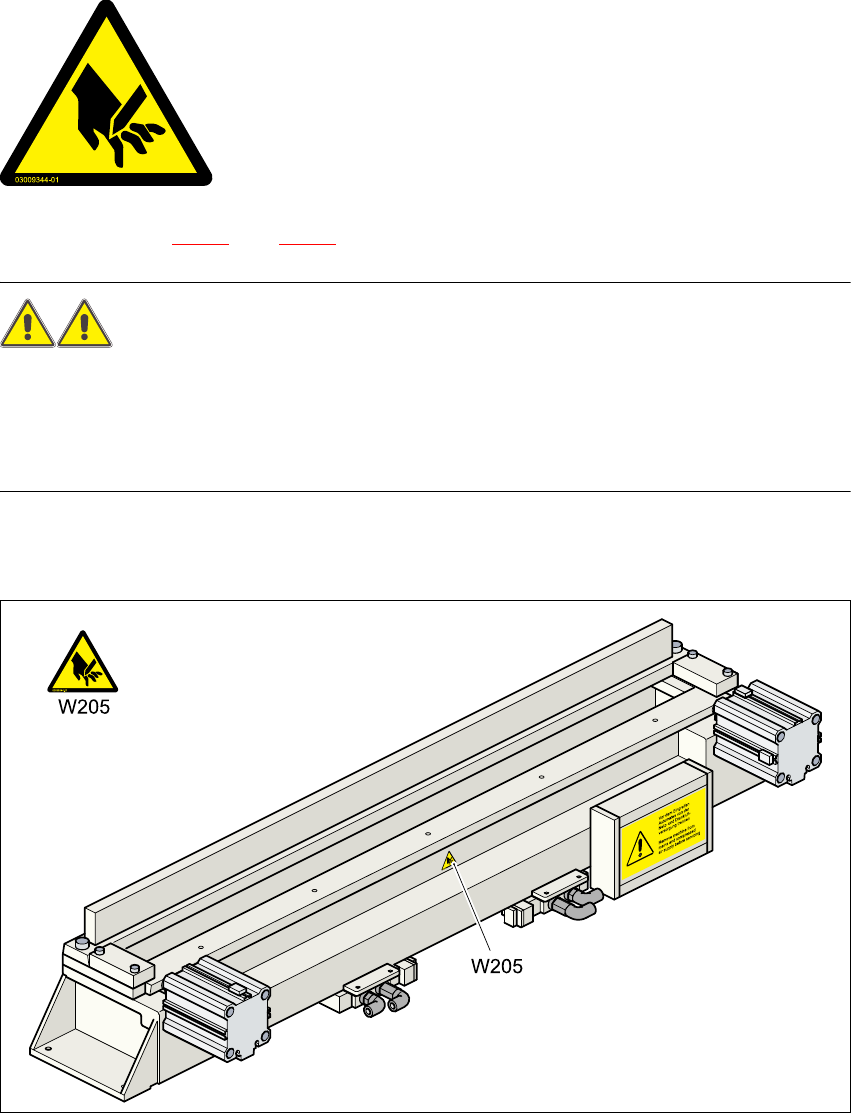

Fig. 2.2 - 4 Warning label W205 on the tape cutter
Item W205, part no. 03009344-01
2
2
2
2
2
2
2
2
RISK OF CUTTING!
Danger of cutting is present even when the
machine is switched off
User Manual SIPLACE S-27 HM 2 Operational safety
Software version SR.503.xx 07/2003 US Edition 2.2 Warning labels
33
2.2.2.2 Warning label W205 on the used tape channel and on the waste tape chute
2

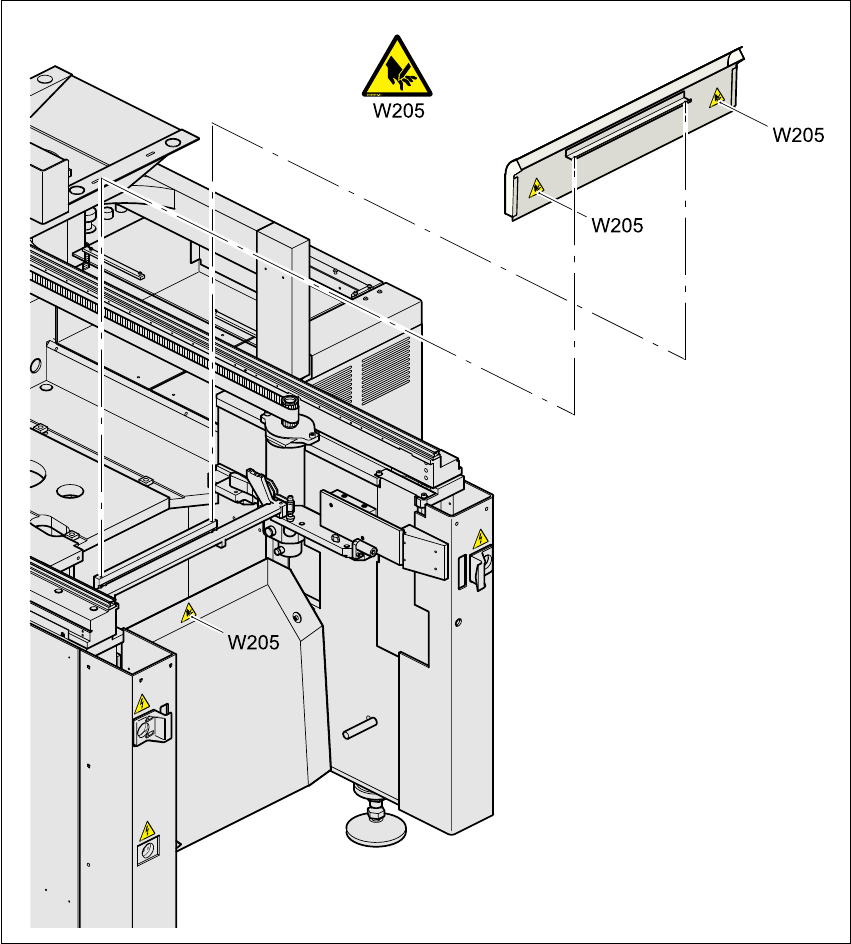

Fig. 2.2 - 5 Warning label W205 on the used tape channel and on the waste tape chute
Item W205, part no. 03009344-01
2 Operational safety User Manual SIPLACE S-27 HM
2.2 Warning labels Software version SR.503.xx07/2003 US Edition
34
2.2.3 Warning label W207 on the servo unit
2
Item W207 (number per placement system: 1)
2

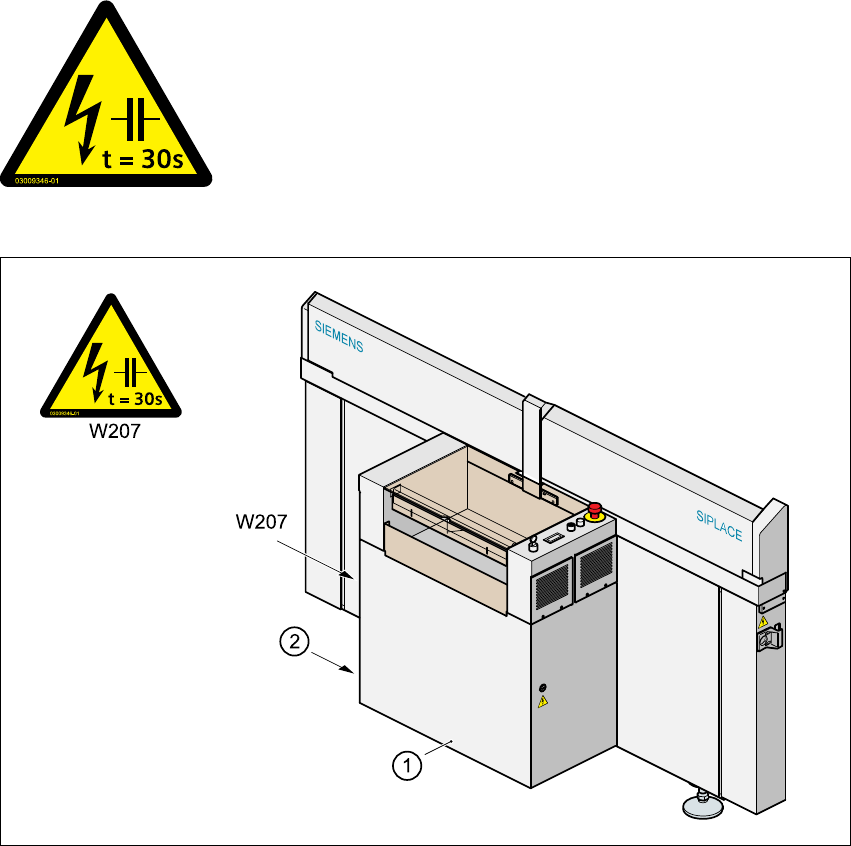

Fig. 2.2 - 6 Warning label W207 on the servo unit Macrolon panel
(1) Output side of the placement system
(2) Doors to the servo unit
Pos. W207, item no. 03009346-01
2
2
MAIN POWER VOLTAGE!
Switch off the main power switch and wait 30 seconds until the
capacitors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
