User Manual SIPLACE S-27 HM 2 Operational safety
Software version SR.503.xx 07/2003 US Edition 2.2 Warning labels
29
WARNING 2
– Do not use abrasive cleaners or solvents for cleaning warning labels..
– Replace any damaged or illegible warning or notice labels.
Fig. 2.2 - 2 Warning labels on the machine - part 2
Item W201, part no. 03009338-01
Item W203, part no. 03009342-01
Item W206, part no. 03009345-01
2 Operational safety User Manual SIPLACE S-27 HM
2.2 Warning labels Software version SR.503.xx07/2003 US Edition
30

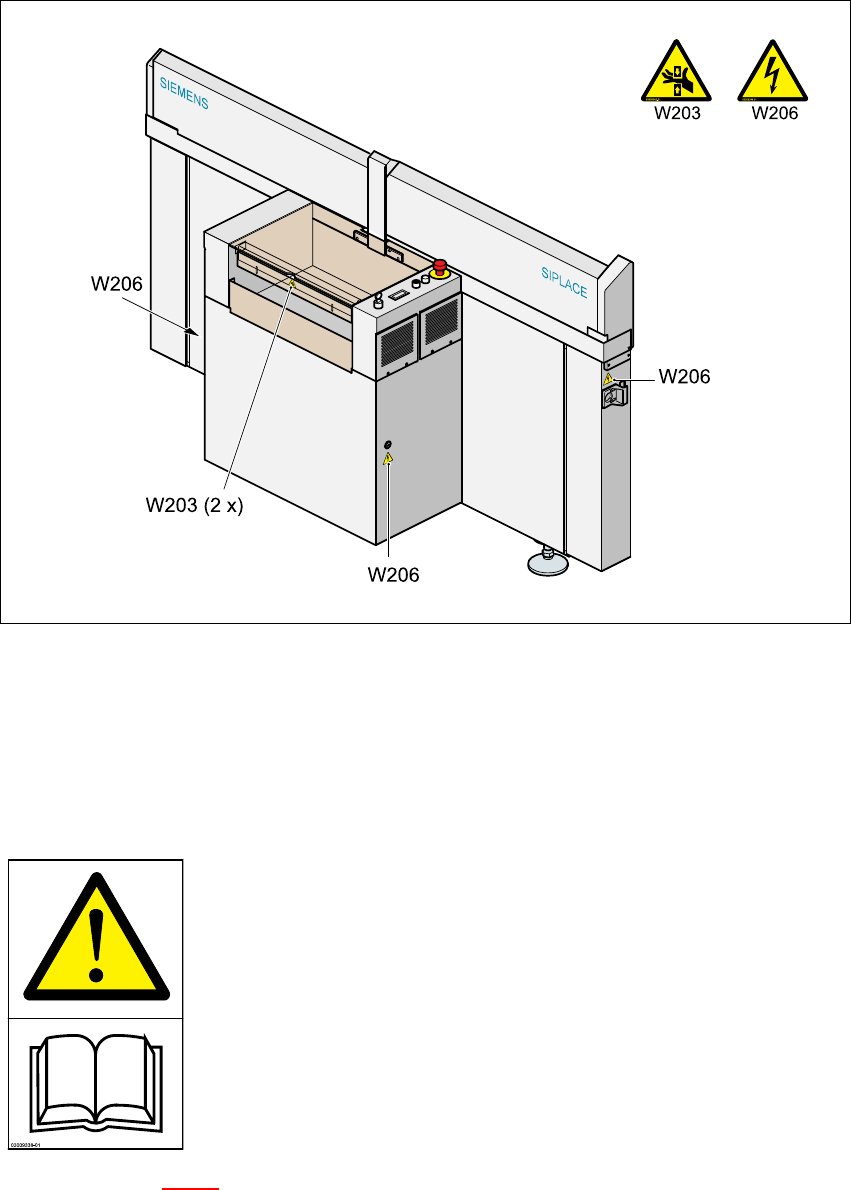

Fig. 2.2 - 3 Warning labels on the machine - part 3
Item W203, part no. 03009342-01
Item W206, part no. 03009345-01
2.2.1.1 Warning label W201
2
Item W201 in Fig. 2.2 - 2 (number per placement system: 1)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
SAFE OPERATION OF THE MACHINE
Safe operation of the machine depends absolutely on the
operator being familiar with the user manual and safety
instructions and putting them into effect.
User Manual SIPLACE S-27 HM 2 Operational safety
Software version SR.503.xx 07/2003 US Edition 2.2 Warning labels
31
2.2.1.2 Warning label W203
2
Item W203 in Figs. 2.2 - 1, 2.2 - 2 and 2.2 - 3 (number per machine: 4)
2.2.1.3 Warning label W204
2
Item W204 in Fig. 2.2 - 1 (number per placement system: 4)
2.2.1.4 Warning label W206
2
Item W206 in Figs. 2.2 - 1, 2.2 - 2 and 2.2 - 3 (number per machine: 7)
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms
and hands.
Do not reach into the machine while it is running
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms
and hands.
Do not reach into the machine while it is running
2
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
