User Manual SIPLACE S-27 HM 2 Operational safety
Software version SR.503.xx 07/2003 US Edition 2.2 Warning labels
37
2.2.6 Warning label "Danger of crushing" on the component trolley
2
Warning label "Danger of crushing" (number per component trolley: 2)
2
Fig. 2.2 - 9 Warning label "Danger of crushing" on the component trolley
Warning label Danger of crushing, part no. 00343357-01
2
2
2
WARNING DANGER OF CRUSHING!
Do not reach into the danger area while the
component feeder table is descending.
Warning label DANGER OF CRUSHING
2 Operational safety User Manual SIPLACE S-27 HM
2.2 Warning labels Software version SR.503.xx07/2003 US Edition
38

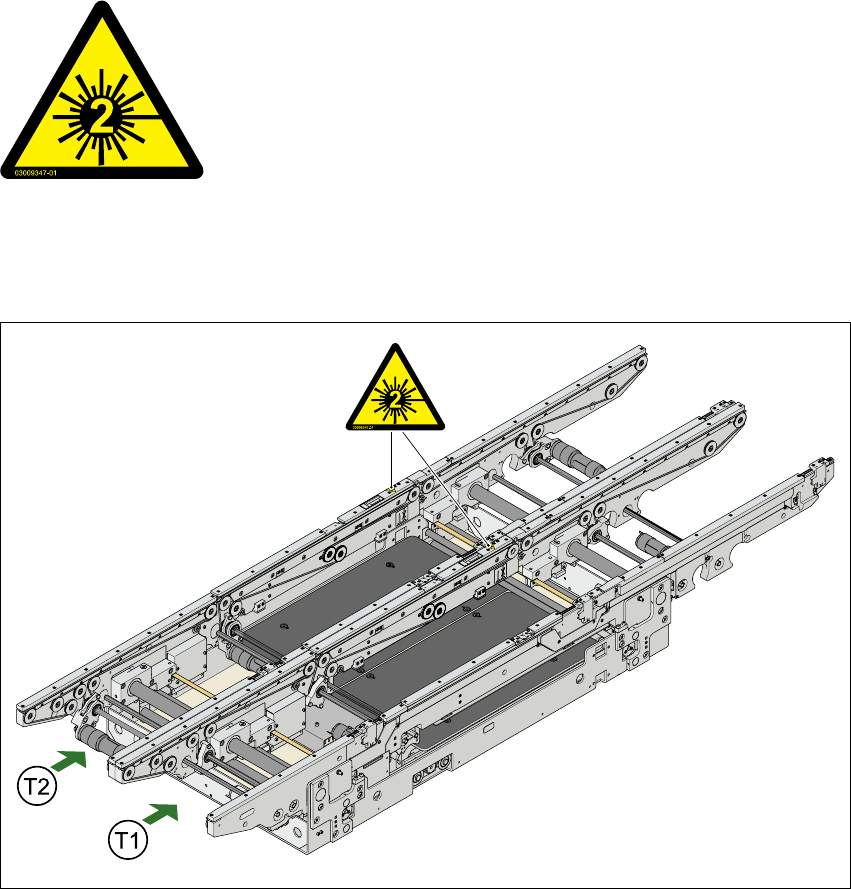

2.2.7 Warning label"laser class 2" on the PCB conveyor
2
Warning label "Laser class 2" on the PCB conveyor
(number per placement system: 2 on the single conveyor,
4 on the dual conveyor)
2
Fig. 2.2 - 10 Warning label"Laser class 2" on the PCB conveyor
Warning label "Laser class 2", part no. 03009347-01
2
2
LASER RADIATION!
Do not look into beam
Laser class 2
User Manual SIPLACE S-27 HM 2 Operational safety
Software version SR.503.xx 07/2003 US Edition 2.3 Laser classification
39
2.3 Laser classification
2.3.1 Laser class 1
2.3.1.1 Classification of the whole machine
2
PLEASE NOTE: 2
Modules in laser classes 1 and 1M are not identified.
2.3.1.2 Classification of the camera systems
2
2.3.2 Laser class 1M
Do not look directly at this with optical instruments!
2
2
All installed camera systems and the whole machine when ready for
operation are assigned to laser class 1.
The laser classes are determined according to DIN EN 60825-1:2001.
2
The following camera systems are assigned to laser class 1:
– Multicolor PCB camera (type 18) 21
2
The following camera systems are assigned to laser class 1M:
– 24 x 24 component camera on the 12-segment Collect&Place head
– 39 x 39 component camera on the 6-segment Collect&Place head
– 16 x 16 DCA camera on the 6-segment or 12-segment Collect&Place head
