6 Component handling User Manual SIPLACE S-27 HM 6.2 Technical data f or the feeders Software version SR. 503.xx07/2003 US Edition 140 6.2.8 44 mm S feeder 6 Fig. 6.2 - 8 44 mm S feeder 6 Item no. 00141094- xx Width 54.3…
User Manual SIPLACE S-27 HM 6 Component handling
Software version SR.503.xx 07/2003 US Edition 6.2 Technical data for the feeders
139
6.2.7 24/32 mm S feeder

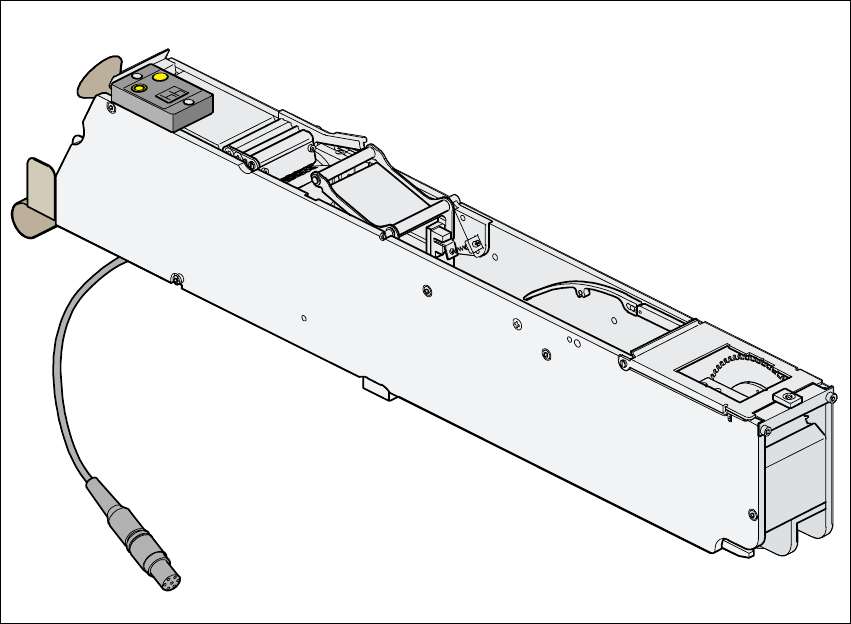

Fig. 6.2 - 7 24/32 mm S feeder
Item no. 00141093-xx
Width 42.4 mm
Tracks per feeder 1
Assigned locations 1.5
Maximum number of feeders 2 x 13
Stock of components for 7" reels approx. 2000
Transport distance (variable) 4 to 40 mm, (in 4 mm increments)
6 Component handling User Manual SIPLACE S-27 HM
6.2 Technical data for the feeders Software version SR.503.xx07/2003 US Edition
140
6.2.8 44 mm S feeder
6

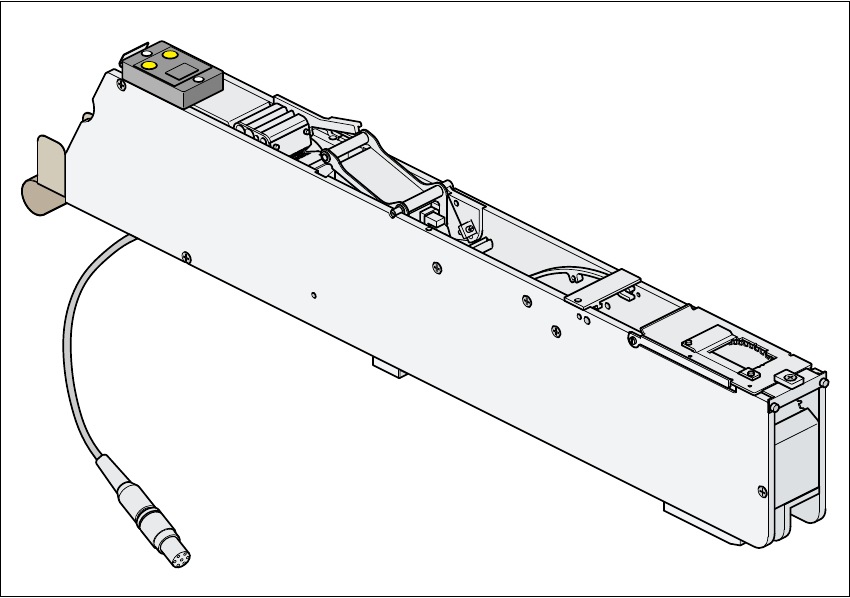

Fig. 6.2 - 8 44 mm S feeder
6
Item no. 00141094-xx
Width 54.3 mm
Tracks per feeder 1
Assigned locations 2
Maximum number of feeders 2 x 10
Stock of components for 7" reels approx. 2000
Transport distance (variable) 4 to 52 mm, (in 4 mm increments)
User Manual SIPLACE S-27 HM 6 Component handling
Software version SR.503.xx 07/2003 US Edition 6.2 Technical data for the feeders
141
6.2.9 Vibratory stick feeder, type 3
Fig. 6.2 - 9 Linear vibratory feeder, type 3
Item no. 00142031-xx 6
Width 28 mm 6
Tracks per feeder 1, 2, 3, or 6 6
Assigned locations 1 6
Maximum number of feeders 2 x 20 6
Stock of components up to 150 per steel stick magazine, 6
depending on the component length 6
Specific data for stick magazines 9.5 mm wide / x 3 6
15 mm wide / x 2 6
> 15 mm wide / x 1 6
30 mm wide / x 1 6
Cycle time (variable) from 400 to more than 1000 msec 6
