7.7 Nozzle changer for the 6-segment Collect&Place
head
7.7.1 Overview
The placement system is supplied as standard with two Collect&Place heads. As an option, a
nozzle changer can be installed for each Collect&Place head. This enables the nozzle configura-
tion to be changed quickly, thus allowing the Collect&Place head to be quickly adapted to the
needs of the placement process.
The nozzle changer consists of at least one, and up to five magazines, each with twelve nozzle
garages (see Fig. 7.7 - 1
). The magazines are seated on a common support. Each magazine is
centered using two parallel pins and fixed in place with a spring hook.
Magazines for the 9xx and 8xx nozzle types can be set up. The magazines can be arranged as
required.
PLEASE NOTE: 7
Please refer to Section 7.1
on page 161 for information on the nozzle changer for the 12-segment
Collect&Place head. 7
7.7.2 Technical data
7
Nozzle changer for the 6-segment Collect&Place head
Dimensions (length x width x height) 282 mm x 233 mm x 108 mm
Number of nozzle garages Min. 6 / max. 30
Nozzle types 8 xx, 9 xx
Time required to open and close the locking plate < 200 ms
Capacity of the reject bin Approx. 50 nozzles from the 9xx type,
Approx. 5 nozzles from the 8xx type
Pneumatic system Compressed air line 0.53 MPa (5.3 bar)
7 Station extensions User Manual SIPLACE S-27 HM
7.7 Nozzle changer for the 6-segment Collect&Place head Software version SR.503.xx07/2003 US Edition
190

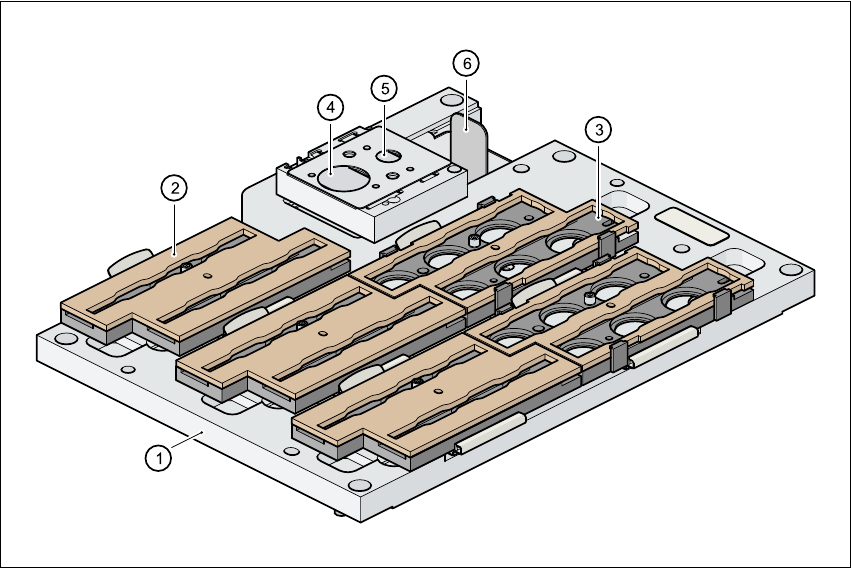

Fig. 7.7 - 1 Nozzle changer for the 6-segment Collect&Place head, overview
(1) Nozzle changer, base
(2) 9xx nozzle magazine
(3) 8xx nozzle magazine
(4) 8xx nozzle discarding device
(5) 9xx nozzle discarding device
(6) Reject bin for discarded nozzles
