7 Station extensions User Manual S IPLACE S-27 H M 7.7 Nozzle changer for the 6-segment Collect&Plac e head Software version SR. 503.xx07/2003 US Edition 194 7.7.5 Emptying the reject bin The capaci ty of the rej ect…
User Manual SIPLACE S-27 HM 7 Station extensions
Software version SR.503.xx 07/2003 US Edition 7.7 Nozzle changer for the 6-segment Collect&Place head
193
7.7.4 Notes on operation
Æ You can fill the nozzle magazine with different types of nozzles from the same family, e.g. fill
no. 8 magazines with nozzle types 821, 822, 823, etc., and no. 9 magazines with nozzle types
911, 914, etc.
PLEASE NOTE 7
Fill the magazines off the machine and always replace complete magazines. 7
Æ Open the locking plate and place the nozzles in the nozzle garages.
Æ Close the locking plate so that the nozzles cannot drop out of the magazines.
CAUTION 7
Before you fill magazine, make sure that all the nozzles on the Collect&Place head have
been returned to their magazines. 7
Æ Programming the nozzle changer is described in the User manuals for the UNIX line com-
puter and the SIPLACE Pro computer.
PLEASE NOTE 7
Æ Do not allow components to drop onto the magazines. If they do, they could jam the locking
plate.
Æ Do not allow components to drop onto free feeder locations. They will stick to the magnetic
bar. Production may have to be interrupted if the feeders are not placed on the component
table correctly. You should therefore regularly clean the magazines and free locations.
7 Station extensions User Manual SIPLACE S-27 HM
7.7 Nozzle changer for the 6-segment Collect&Place head Software version SR.503.xx07/2003 US Edition
194
7.7.5 Emptying the reject bin
The capacity of the reject bin is approx. 50 nozzles for nozzle family 9xx and approx. 5 nozzles
for nozzle family 8.xx. To prevent malfunctions in the placement process you must empty the
reject bin at regular intervals.

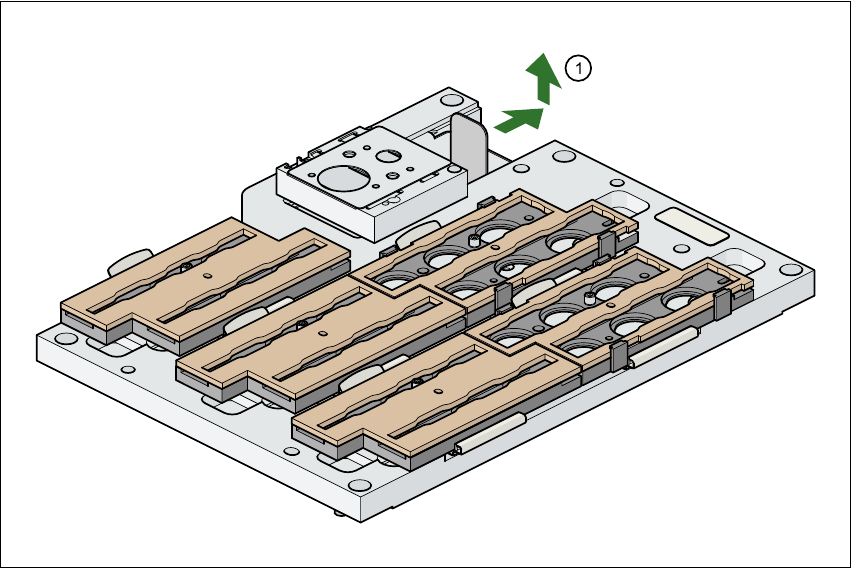

Fig. 7.7 - 3 Emptying the reject bin, nozzle changer, 6-segment Collect&Place head
(1) Remove the reject bin
Æ Pull the reject bin out of its retainer in the direction indicated by the arrow, and lift the bin out
of its holder.
Æ To return the reject bin, push it back into the retainer.
User Manual SIPLACE S-27 HM 7 Station extensions
Software version SR.503.xx 07/2003 US Edition 7.7 Nozzle changer for the 6-segment Collect&Place head
195
7.7.6 Changing the magazine
Æ To remove the magazine, push the spring hook (item 1 in Fig. 7.7 - 4) away from the maga-
zine. Lift the magazine out of the carrier.
7

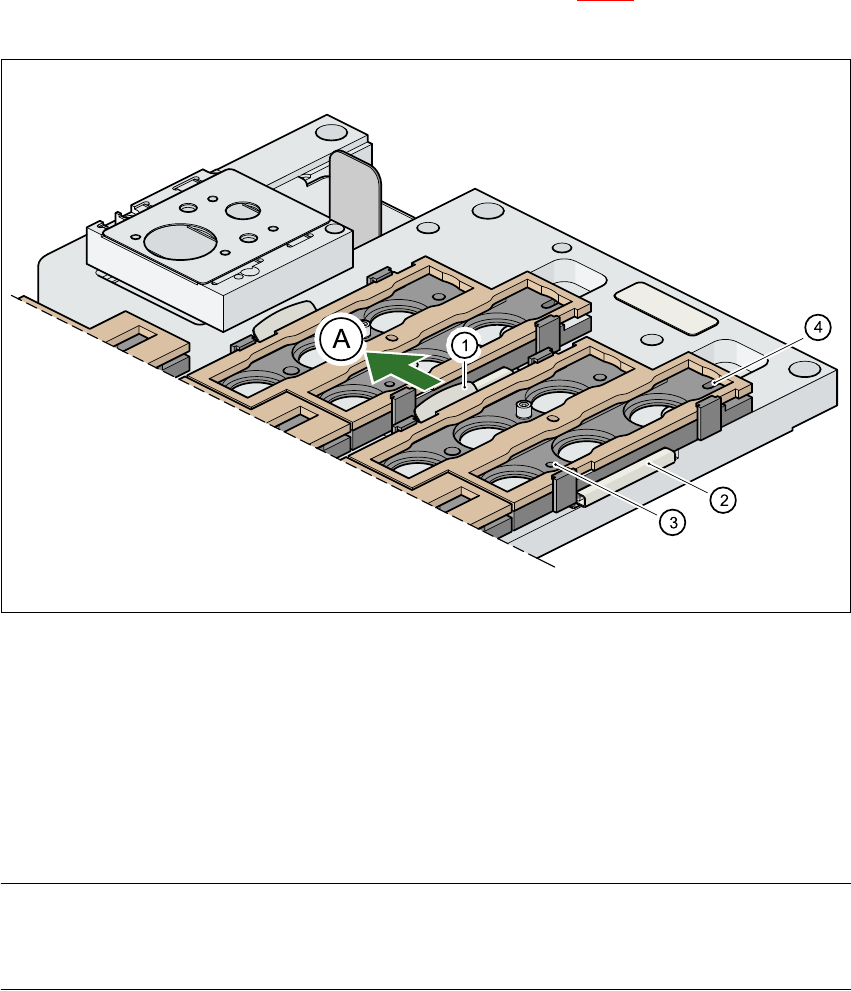

Fig. 7.7 - 4 Changing the magazine, nozzle changer, 6-segment Collect&Place head
7
(1) Spring hook
(2) Retaining clamp
(3) Centering hole
(4) Slot
(A) Push the spring hook away from the magazine
PLEASE NOTE
Make sure that you insert the magazine so that the centering pins slide into the centering hole
(item 3) and slot (item 4). 7
Æ First place the side of the magazine with the centering hole (item 3) and the slot (item 4) on
the base. The two knobs on the magazine must slide into the retaining clamp (item 2).
Æ Push the spring hook away from the magazine.
Æ Press the magazine so that it lies flat on the base, then release the spring hook. The spring
hook must latch into place.
