6 Component handling User Manual SIPLACE S-27 HM 6.5 Used tape c utter Software version SR.503.xx07/2003 US Edition 150 6.5 Used t ape cutter 6.5.1 Gener al The placem ent sy stem has a used tape cutter a t each of the t…
User Manual SIPLACE S-27 HM 6 Component handling
Software version SR.503.xx 07/2003 US Edition 6.4 Component trolley
149
6.4.4 Support for the middle tape reel for 3 x 8 mm feeders
Type 3 x 8 mm S feeders transport components to the pick-up position on three tracks. The tape
reels for the two outer tracks are located between the dividing plates in the tape container. The
middle tape reel is arranged over the tape reels for the two outer tracks.
For the middle tape reels you will therefore also need:
– 1 adapter plate for holding the tape reel holder (item 1) and
– 1 tape reel holder (item 2) for every two feeders
The adapter plate is fixed to the component trolley with four fillister head screws, and the tape
reel holders are inserted into the square openings in the adapter plate.
Fig. 6.4 - 5 Support for the middle tape reel for 3 x 8 mm feeders
(1) Adapter plate
(2) Tape reel holder
6 Component handling User Manual SIPLACE S-27 HM
6.5 Used tape cutter Software version SR.503.xx07/2003 US Edition
150
6.5 Used tape cutter
6.5.1 General
The placement system has a used tape cutter at each of the two component trolley locations. It is
used to cut off the waste tape. The cut pieces of tape drop into the waste tape container in the
component trolley.
Æ Empty the waste tape container every day.

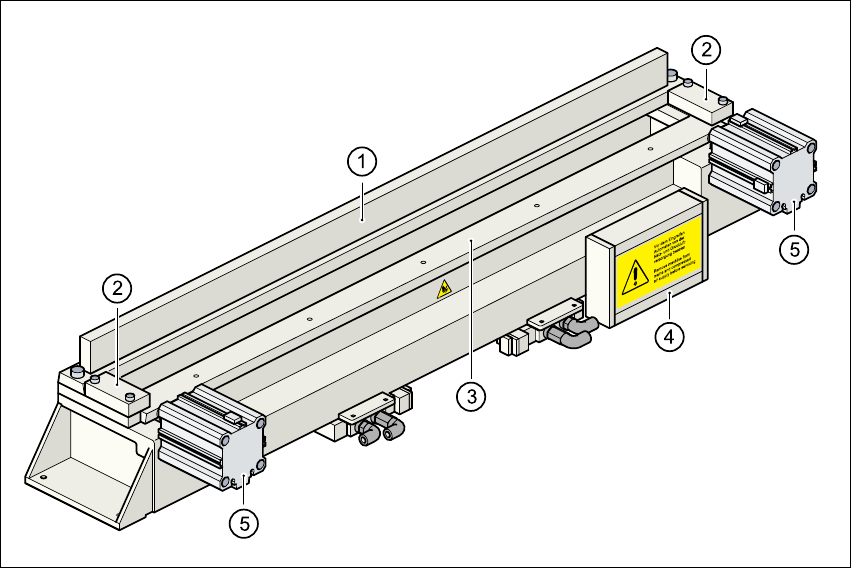

Fig. 6.5 - 1 Used tape cutter
(1) Stationary cutting blade
(2) Retainer
(3) Moving cutting blade
(4) Electronic control unit
(5) Short stroke cylinder
User Manual SIPLACE S-27 HM 6 Component handling
Software version SR.503.xx 07/2003 US Edition 6.5 Used tape cutter
151
6.5.2 Inserting the tape into the tape cutter

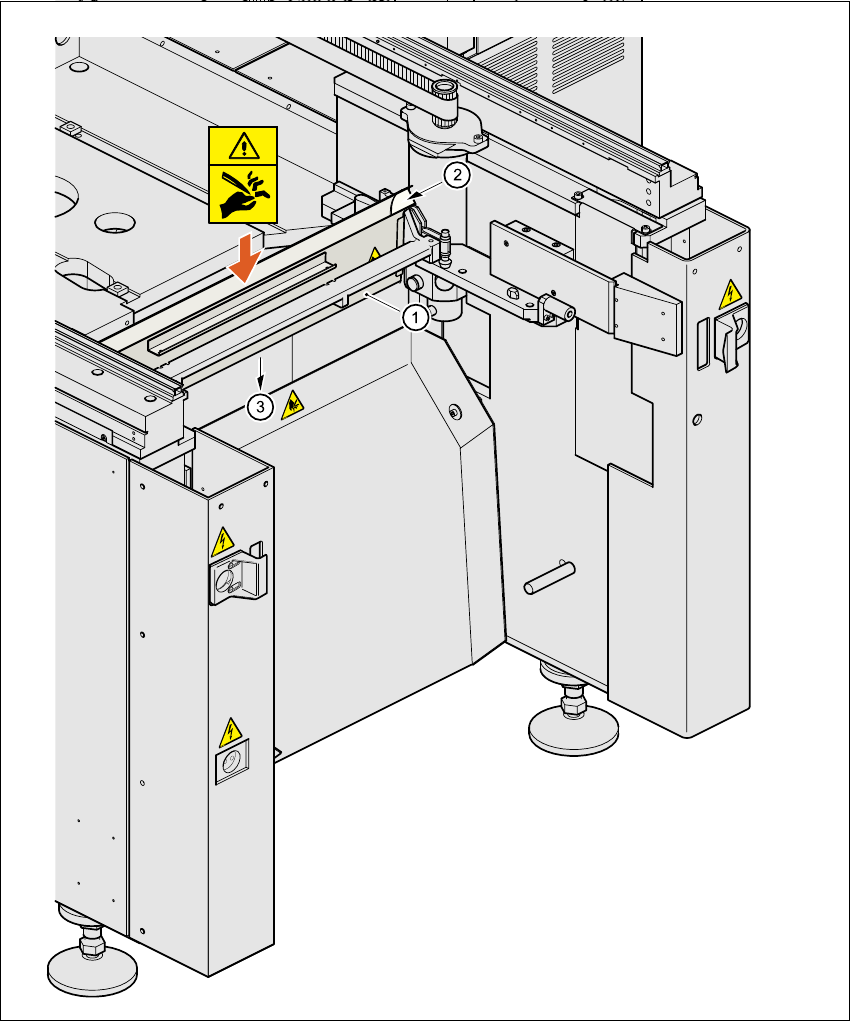

Fig. 6.5 - 2 Inserting the tape into the tape cutter
(1) Used tape channel
(2) Used tape
(3) To used tape cutter
