Advanced Software Melter Configuration
7-16
Part 1121836_03
E 11/2014 Nordson Corporation

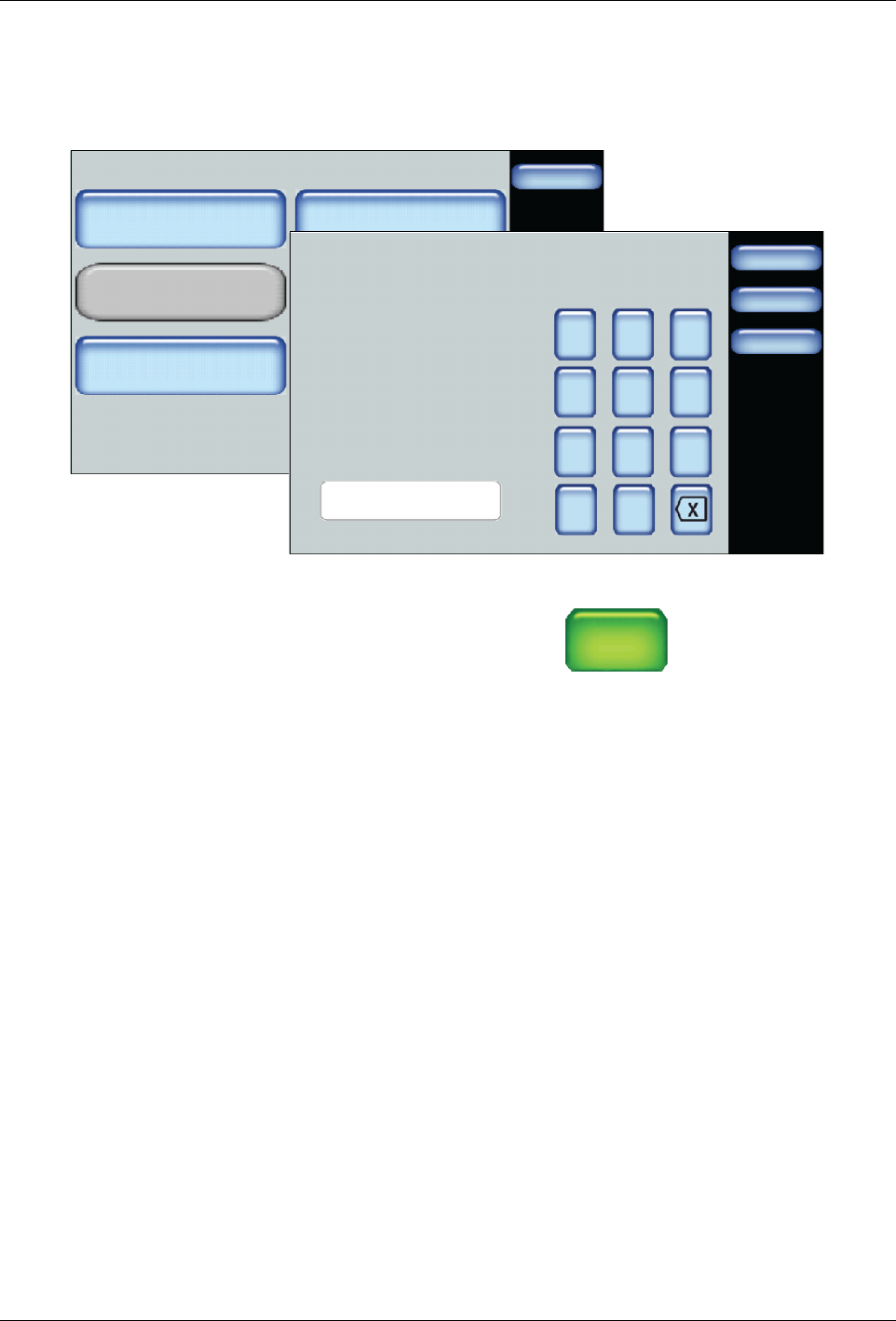

Calibrating Pumps
Use Pump Calibration to make sure the displayed pump RPM is accurate.
Pump - Advanced
Done
Pump Off Delay Infinite
Off
Pump Off Delay Time
0 Sec.
Pump Calibration
On
Container Low to Empty
Timer
0 Sec.
Auto Pump
Off
Remote Control
Done
Cancel
7 8 9
4 5 6
1 2 3
0
Pump Calibration RPM
Measured RPM:
Home
Pump RPM calibration should Only be
done by trained technicians. While the
pump is running from 70% to 95% of full
speed, use a tachometer to measure
actual pump RPM.
.
1. Wire a tachometer to the pump.
1. Access the Home screen, touch
Pump
GTL
45 RPM
then the Advanced button
2. Touch Pump Calibration and run the pump at approximately 7o to 95%
of full speed. Enter the RPM displayed on the tachometer.
3. Touch Done.
NOTE: Refer to the previous chapter, Configuring Pumps for more
information.
Advanced Software Melter Configuration
7-17
Part 1121836_03
E 11/2014 Nordson Corporation

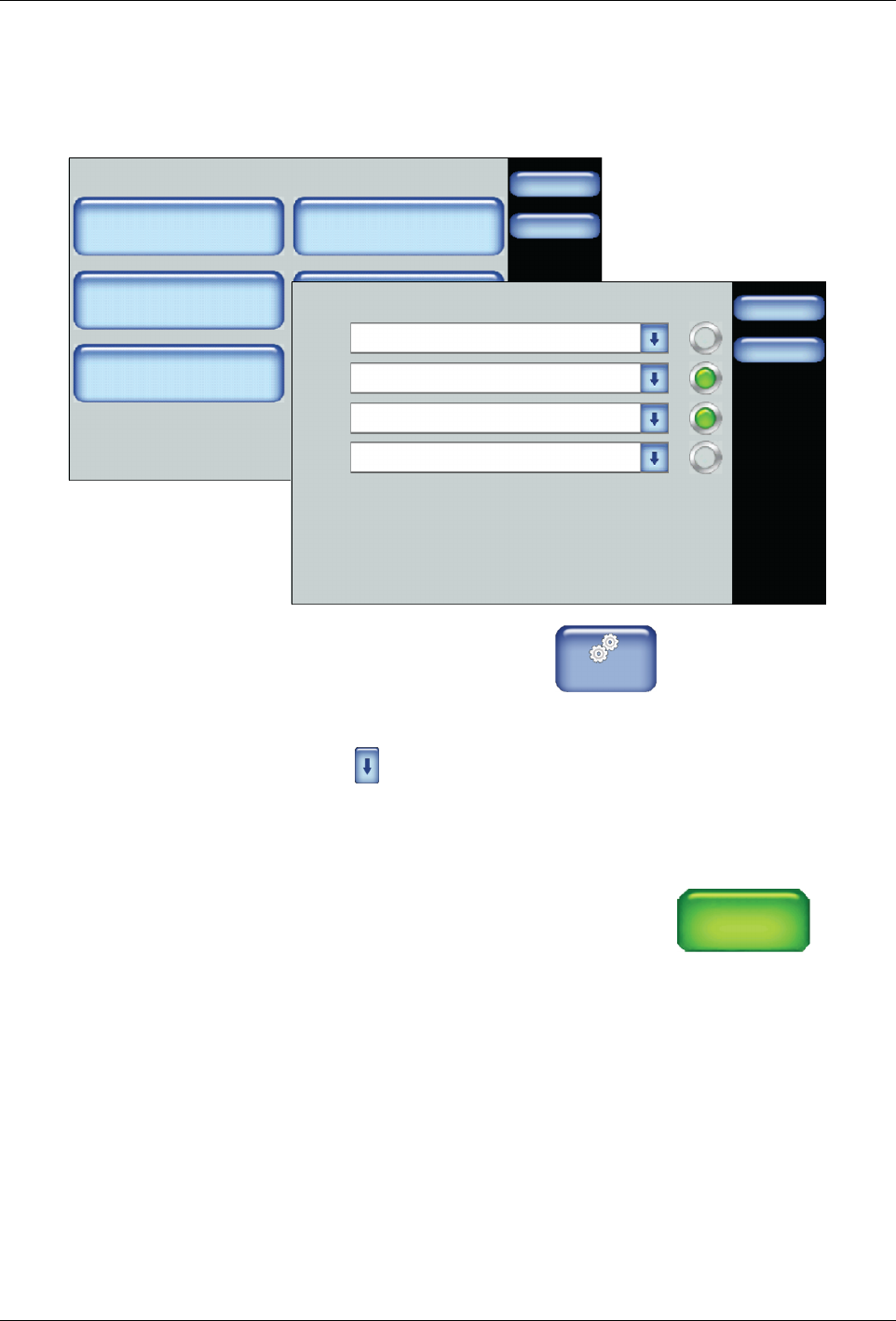

Advanced Input/Output Settings
NOTE: Refer to Installation chapter for wiring instructions.
Settings
Done
Home
Temperature
Input
Ready Delay
Standby
Output Pump
Input 1 Disabled
Input 2 Heater Control
Input 3 Pump Control
Status:
Done
Home
Input
Input 4 Disabled
1. From the Home Display touch
Master
Controls
2. Touch Settings, then touch Input or Output.
3. Touch for the lnput or Output number you want to modify. Refer to
Default Input Settings and Default Output Settings for more information.
4. Touch Done.
NOTE: If you select the Input External Zone #A/#B option, the system
displays two opposing arrows beneath each other
←
←
to
indicate that it is controlled from a remote location.
Advanced Software Melter Configuration
7-18
Part 1121836_03
E 11/2014 Nordson Corporation
Default Input Settings
By default, all four inputs are pre-configured for you. The following table
details the defaults and available input options.
Input # Default Available Options
Input 1 Automatic
Standby
S
Disabled
S
Heater Control
S
Standby
S
Pump (Control)
S
External Zone# A/B
S
Automatic Standby
(only available for
Input 1)
Input 2 Standby
Input 3 Heater Control
Input 4 External Zone
1A/1B
Default Output Settings
By default, all three outputs are pre-configured for you. The following table
details the defaults and available output options.
Output # Default Available Options
Output 1 Ready
S
Disabled
S
Ready
S
Ready-Pump On
S
Fault
S
Tank Low
S
Alert
S
Service
Reminder
Output 2 Fault
Output 3 Tank Low
