Introduction 2-3 Part 1121836_03 E 11/2014 Nordson Corporation Description of the Bulk Melter AltaPail bulk me lters are designed to accommodat e 20 liter contai ners. 3 4 5 6 8 7 1 2 Figure 2-1 1 Electrical cabinet 2 Pl…

Introduction

2-2

Part 1121836_03

E 11/2014 Nordson Corporation

Residual Risks

In the design of the melter, every measure was taken to protect personnel

from potential danger. However, some residual risks can not be avoided.

Personnel should be aware of the following:

Risk of burns from hot material

Risk of burns from hot bulk melter components

Risk of burns when conducting maintenance and repair work for which

the system must be heated up

Risk of burns when attaching and removing heated hoses

Material fumes can be hazardous. Avoid inhalation. If necessary, exhaust

material vapors and/or provide sufficient ventilation of the location of the

bulk melter (Refer to page 3-3, Exhausting Material Vapors)

Risk of pinching parts of the body between platen and container. Ensure

that, during operation, no one else is near the system

The safety valve may malfunction due to hardened or charred material.

ID Plate

Electrical connection

Operating voltage

Operating voltage frequency

Rated current

System designation

Serial number

Introduction

2-3

Part 1121836_03

E 11/2014 Nordson Corporation

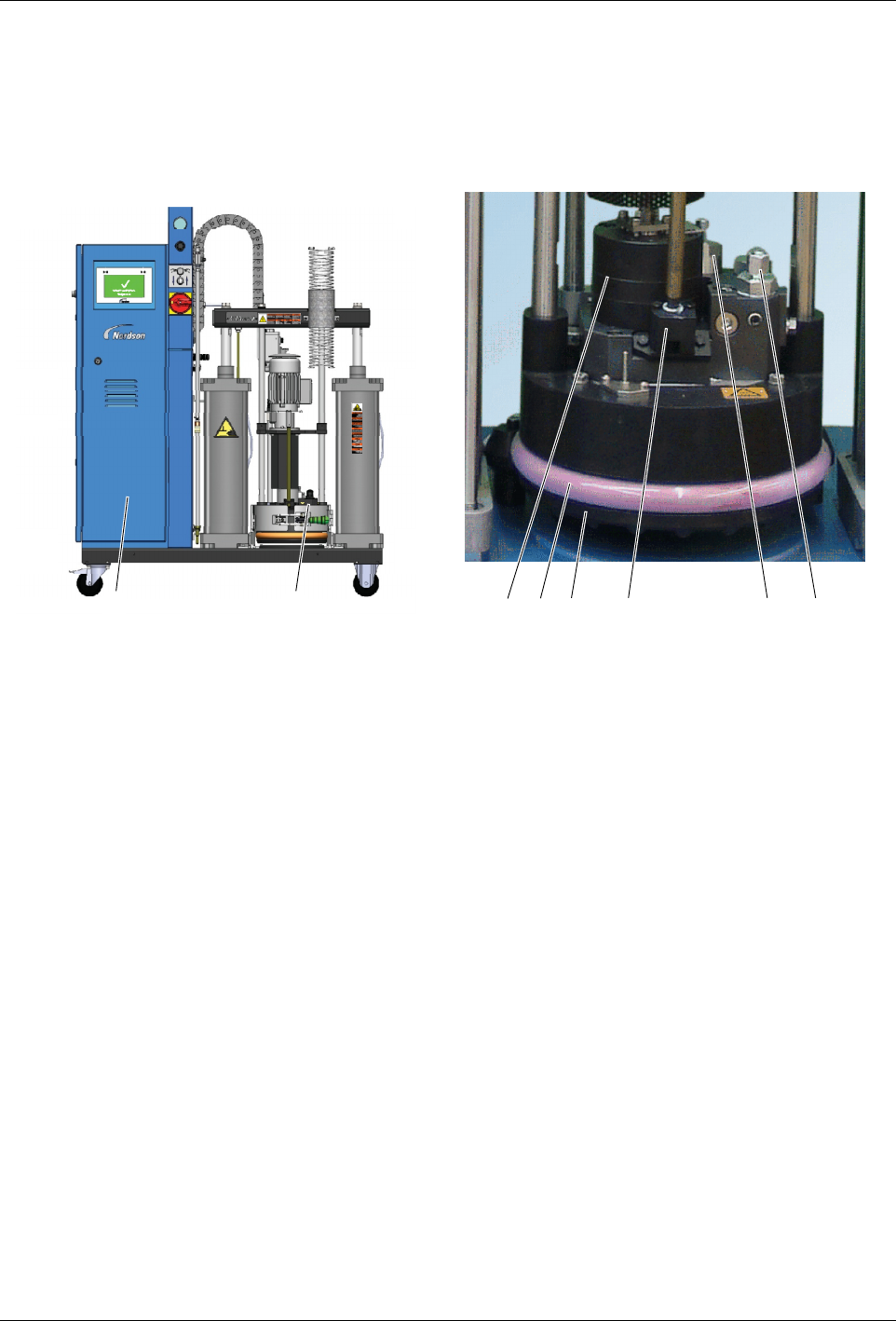

Description of the Bulk Melter

AltaPail bulk melters are designed to accommodate 20 liter containers.

3 4 5 6 87

1 2

Figure 2-1

1 Electrical cabinet

2 Platen

3 Pump

4 Sealing ring

5 Melting plate

6 Aeration and air relief valve

7 Pressure control valve Material

pressure

8 Hose fitting

Introduction

2-4

Part 1121836_03

E 11/2014 Nordson Corporation

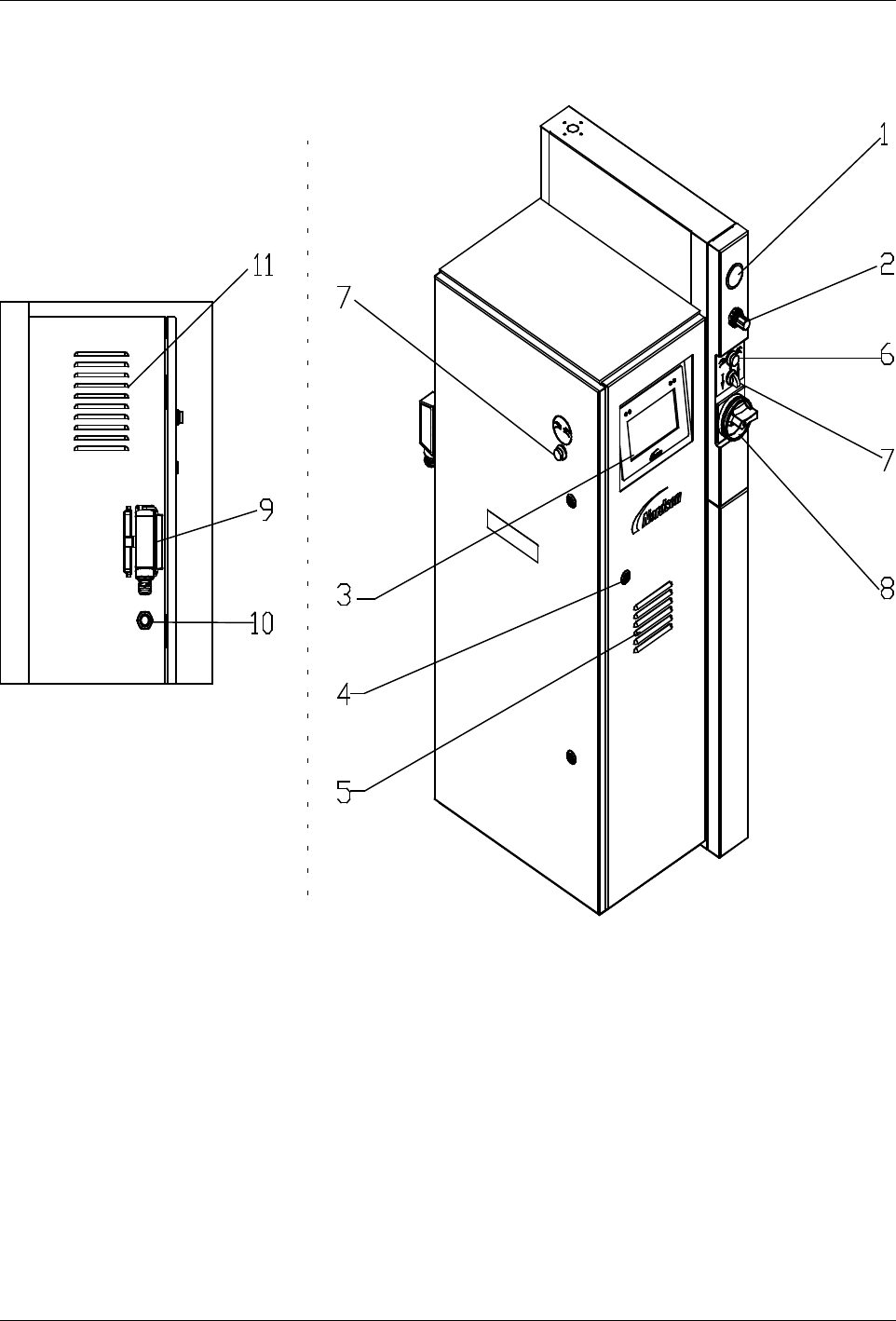

Electrical Cabinet

Back view of melter

Front/side

view of melter

Figure 2-2

1 Display Platen pressure

2 Pressure control valve Platen

pressure

3 Touch Screen Display

4 Door lock

5 Air filter / fan with filter

6 Button Two-hand control

7 Selector Raise/lower platen

8 Main switch

9 I/O Connector

10 Cable gland Inputs/outputs

11 Air Filter
