Parts 1 1 -40 Part 1121836_03 E 1 1/2014 Nordson Corporation Front Panel Figure 11-22

Parts

11-39

Part 1121836_03

E 11/2014 Nordson Corporation

This page intentionally left blank.

Parts

11-40

Part 1121836_03

E 11/2014 Nordson Corporation

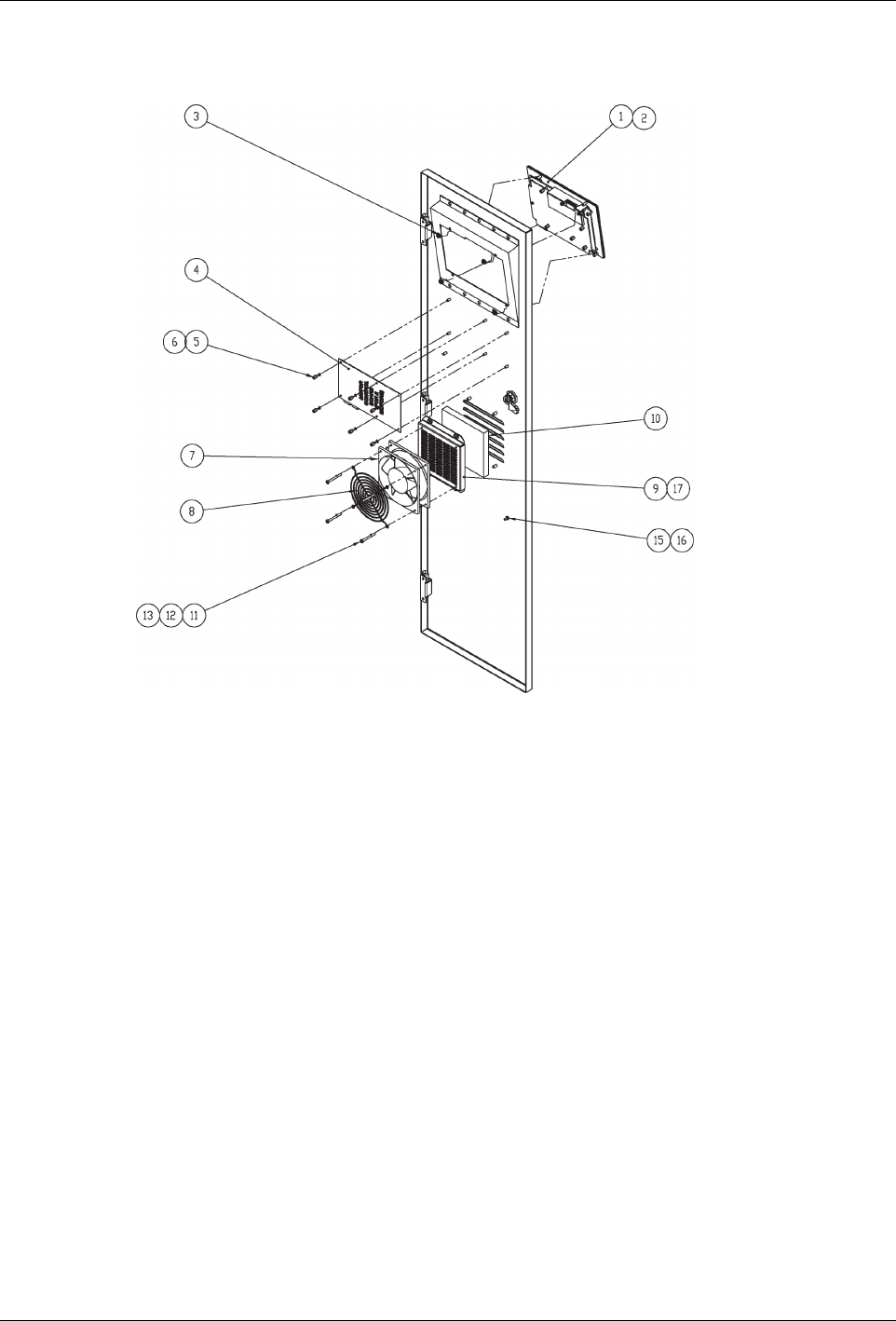

Front Panel

Figure 11-22

Parts

11-41

Part 1121836_03

E 11/2014 Nordson Corporation

Item Part Description Quantity Note

Melter

7407073 SERVICE KIT,LCD MODULE,ALTAPAIL II 1 7407039

7407040

7407041

7407042

7407668

7407669

7407683 SERVICE KIT,LCD MODULE, 232°C,ALTAPAIL II 1 7407664

7407665

7407666

7407667

7407670

7407671

2 1107260 BATTERY,COIN CELL,3.0V,24MM,LITHIUM 1

3 ------ HEXNUT,FLANGED,SERRATED,M5 4

4 7403315 Service Kit,PCA Motor Control, Touch 1

5 ------ THRDSPCRMM,MALE/FEM,SS,HEX,M3,8MMLG 6

6 ------ WASHER,LK,M,INT,M3,STL,ZN 6

------ 7407074 SERV KIT,FAN,DC24V,120x120x38mm,138CFM ------

7 ------ FAN,DC24V,120x120x38mm,138CFM 1

8 ------ PLASTIC FILTER GUARD SET,FAN,FOR 120MM 1

9 ------ PLASTIC GUARD,FAN,FOR 120MM 1

10 ------ SCR,FLT,SKT,M4X55,ZN,DIN7991 4

11 ------ WASHER, FLT, M4, ZP 4

12 ------ WASHER,LK,M,SPT,M4,STL,ZN 4

13 ------ NUT,HEX,M4,STL,ZN 4
