Parts 1 1 -29 Part 1121836_03 E 1 1/2014 Nordson Corporation Electrical Components " " " " STANDARD Wiring Diagram P/N 1000 0256 Outside Elec trical C abinet Figure 11-18
Parts
11-28
Part 1121836_03
E 11/2014 Nordson Corporation

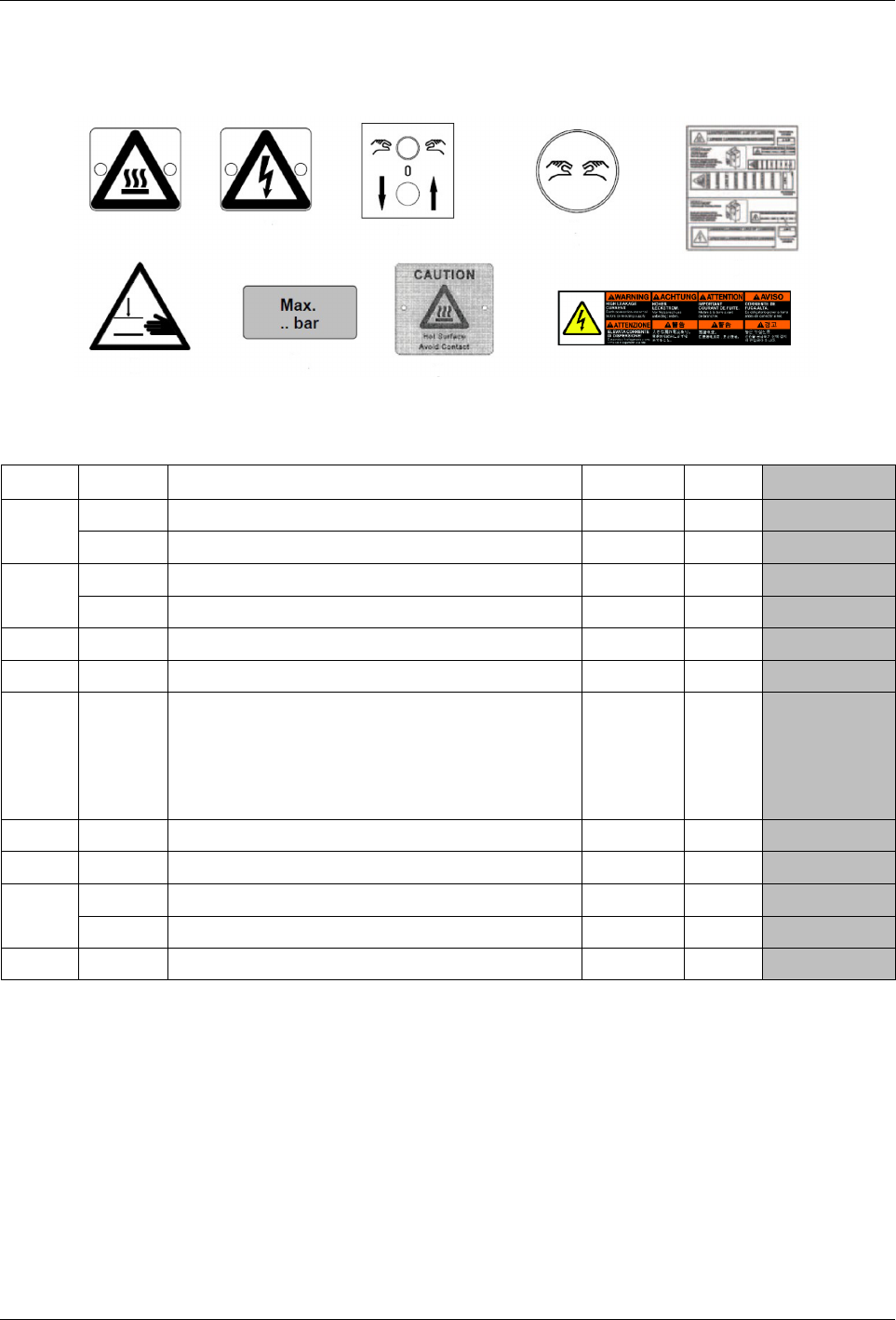

Warning Labels
98
7
6
4
3
21
5
Figure 11-17
Item Part Description Quantity Note Melter
1
408437 Sign, heat output,general 1
291387 Blind rivet cl.end 3,2x6,5 DIN7337 2
2
290083 Sign, dangerous voltage 1
291387 Blind rivet cl.end 3,2x6,5 DIN7337 2
3 7403851 Sign, lifting O lowering self−adhesive 1
4 7403937 Sign, two−hand control, self−adhesive 1
5
1100254
1024720
1025795
1059866
TAG, CAUTION, HOT SURFACE
TAG, WARNING, HOT ADHESIVE
TAG,WARNING,HAZARDOUS VOLTAGE
TAGS,SHEET OF ,VERSA/DURABLUE LG,CE
LANG
1
1
1
1
6 421460 Sign, warning hand injury 1
7 7140255 Sign ”Max. 8 bar” self adhesive 1
8
7150828 Sign,hot surface,general UL 1
255289 NOTCHED TAPER PIN 1,7x4 DIN1476 2
9 1120127 TAG, WARNING, HIGH LEAKAGE CURRENT 1
Parts
11-29
Part 1121836_03
E 11/2014 Nordson Corporation

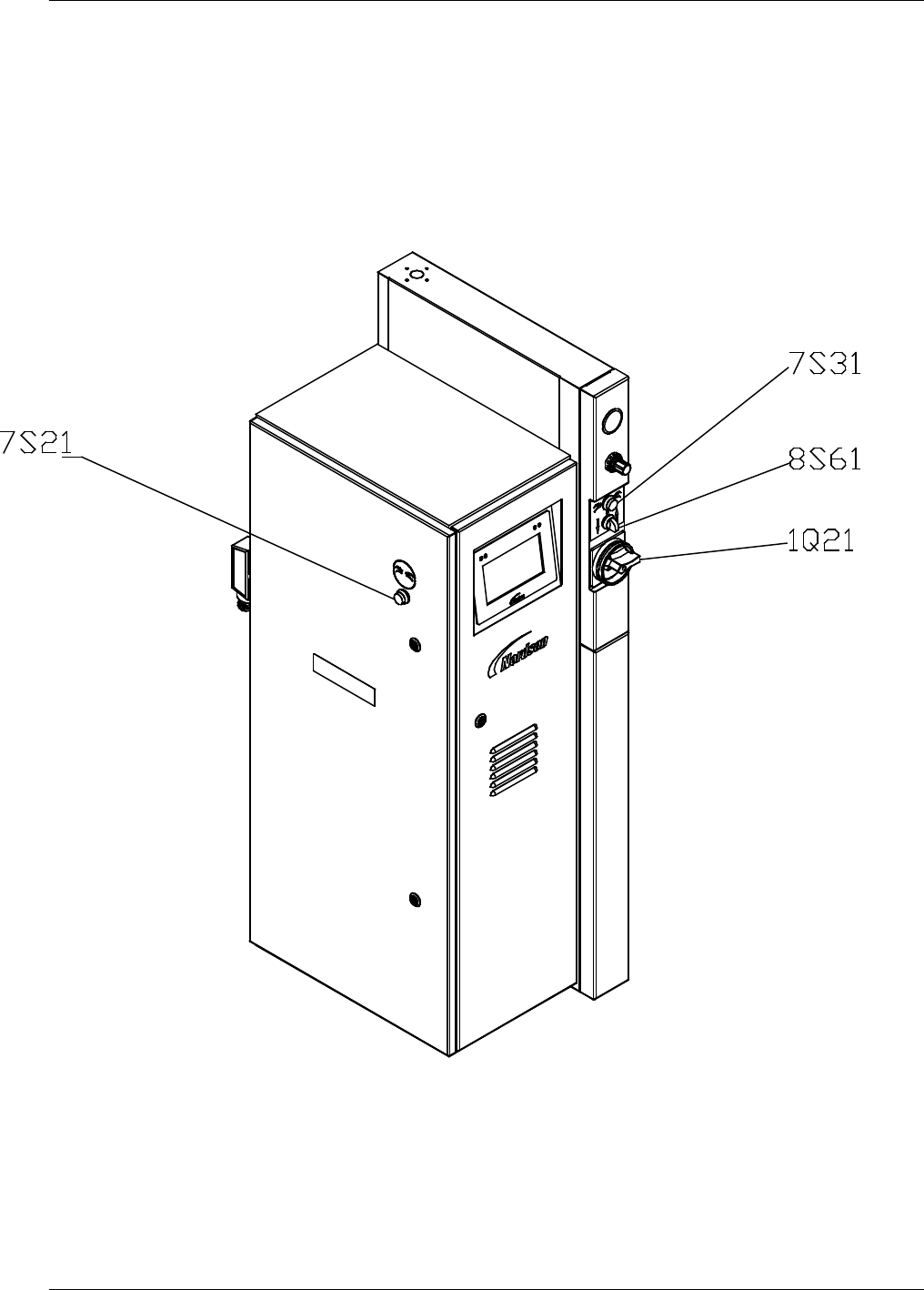

Electrical Components
"
""
" STANDARD Wiring Diagram P/N 10000256
Outside Electrical Cabinet
Figure 11-18
Parts
11-30
Part 1121836_03
E 11/2014 Nordson Corporation
Item Part Description Quantity Note Melter
7S21
7S31
7126179 push-button black M22-DH-S 1
460768 mounting adapter type:M22-A 1
460769 contact block type:M22CK10 1
460770 contact block type:M22CK01 1
8S61
207585 selector switch type:M22-WRLK3-G 1
460768 Mounting adapter type:M22-A 1
460769 contact block type:M22CK10 3
460770 Contact block type:M22CK01 2
1Q1 253639 Main switch 3x32A / red/yellow 1
