Basic Software Me lter Configuration 6 -9 Part 1121836_03 E 1 1/2014 Nordson Corporation Modifying Externa l Zone PID Types You would only change an external zone P ID Type associa tion if you make use of a dif ferent ha…
Basic Software Melter Configuration
6-8
Part 1121836_03
E 11/2014 Nordson Corporation

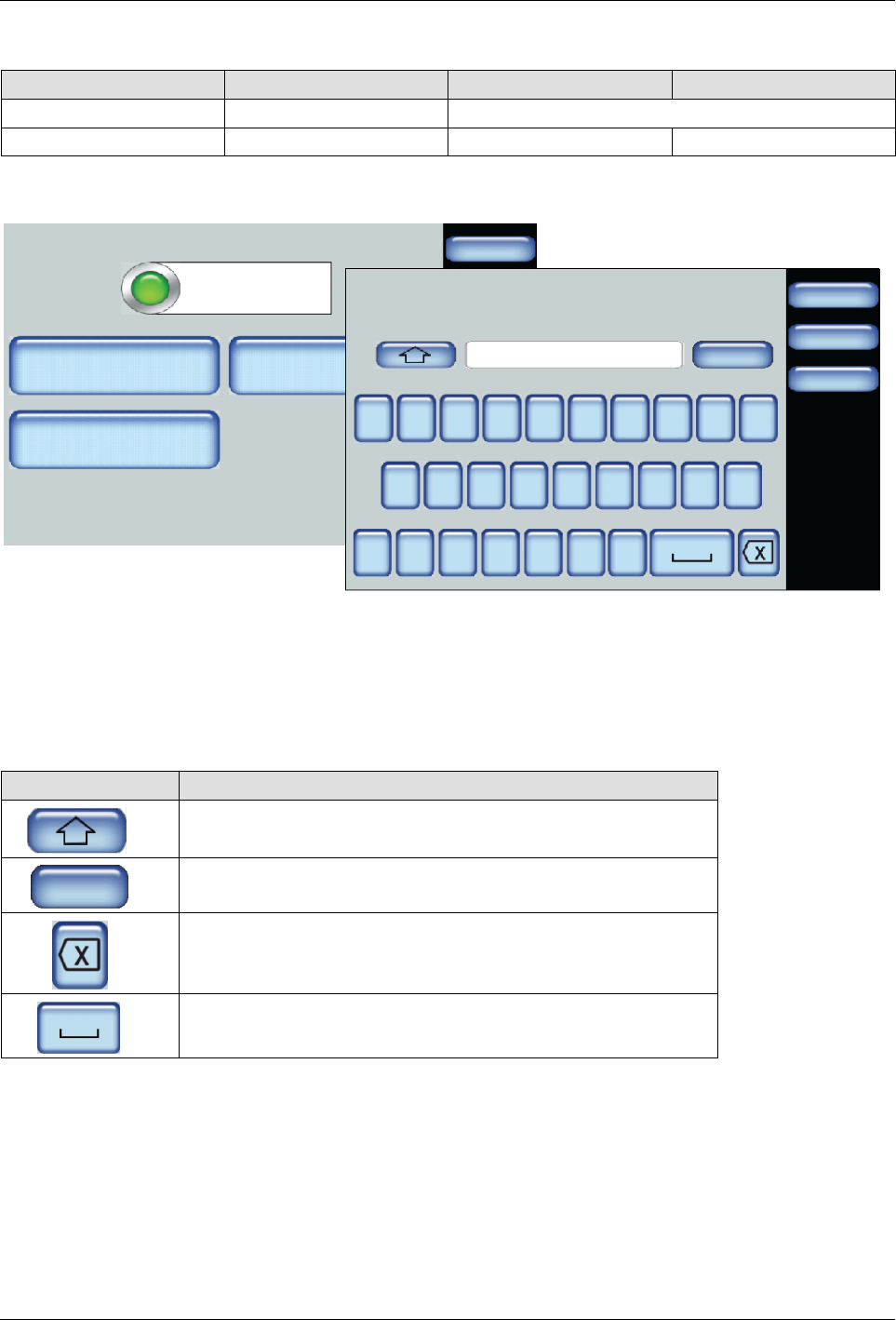

Modifying External Zone Names
Zone Default Minimum Maximum
Internal Zone Platen You cannot modify the name of the Platen
External Zones Zone [Number] [Letter] 1 character 10 characters
Zone 1A
Done
Zone State: Enabled
Adjust Set Point
Zone 1A
Change PID Type
Create/Modify Name
Hose
176_C
Zone 1A
Done
Cancel
Home
Q W E R T Y U I
A S D F G H J K
Z X C V B N
O P
L
M
123 …
1. Access the Home screen and touch an external zone that you want to
modify its name.
2. Touch Create/Modify Name and enter the name you want for this zone.
The name can be up to 10 characters long. Spaces, dashes, underscore
and numbers count as a single character.
3. Do the following to continue. When finished, touch Done.
Touch Description
Switch between upper and lower case letters.
123 …
Include numeric and extended special characters.
Delete a character.
Add space.
Basic Software Melter Configuration
6-9
Part 1121836_03
E 11/2014 Nordson Corporation

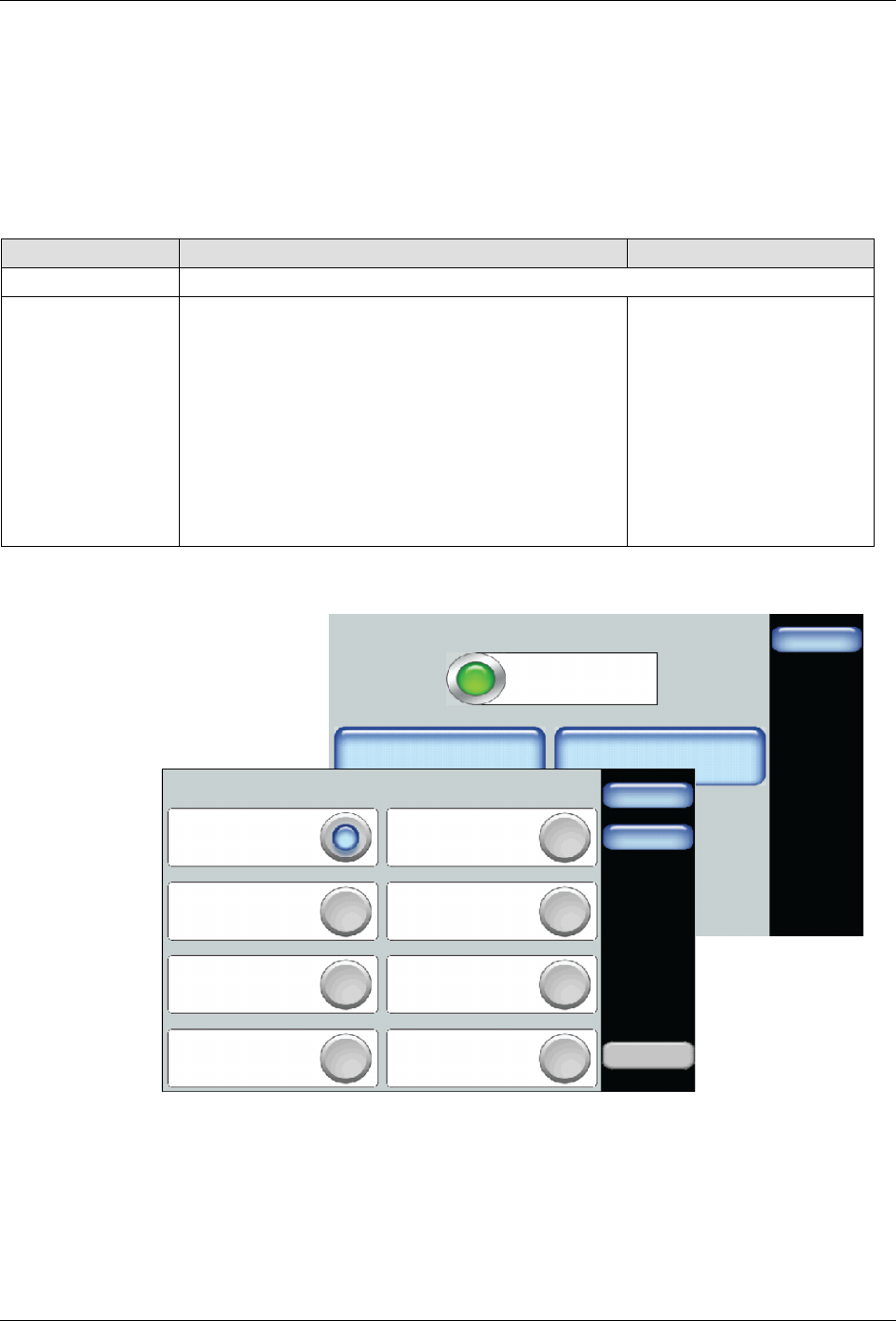

Modifying External Zone PID Types
You would only change an external zone PID Type association if you make
use of a different hardware component. Selecting the appropriate PID Type
provides optimum component performance.
NOTE: The Home screen displays the type of applicator this is currently
connected to the melter. The graphic does not change based on PID Type
selection.
Zone Default Options
Internal Zone You cannot modify the internal zone PID Type association.
External Zones
S
Zones ending with a letter A are associated with
a Hose
S
Zones ending with a letter B are associated with
a Standard Applicator
S
Hose
S
Large Hose
S
Standard applicator
S
Large applicator
S
Hand applicator
S
Air Heaters
S
Platen
S
Custom PID Values
Zone 1A
Done
Zone State: Enabled
Adjust Set Point
Zone 1A
Change PID Type
Create/Modify Name
Hose
176_C
Zone 1A
Standard Applicator Large Applicator
Hose Large Hose
Custom PID Values
Hand Applicator Air Heater
Custom
PID
Home
Done
Platen
1. Access the Home screen and touch the external zone that you want to
change its PID type.
2. Touch Change PID Type and select the appropriate button
corresponding to the installed component for the selected zone.
3. Touch Done.
Basic Software Melter Configuration
6-10
Part 1121836_03
E 11/2014 Nordson Corporation
NOTES:
S
It is recommended that you power down the melter when you change
external zone components.
S
You cannot mix handguns and automatic applicators.
S
Touch Custom PID to enter your own PID values. PID is an acronym
for Proportional, Integral, Derivative, which is a continuous feedback
loop that ensures optimum performance and accuracy. Refer to
textbooks or the Internet for proportional integral derivative or PID
Control for additional information
Term Description
P Controls how fast the system responds to changes.
I Controls the offset error between the set point and the actual.
D
Used
to
optimize
the
system
response
-
but
only
if
the
feedback signal is stable.
Note: Always leave the Derivative constant set to zero unless
the feedback signal is very stable and noise free; otherwise,
you
may
experience
unstable
system
response.
