Pneumatic plate Installation 3-7 Part 1121836_03 E 11/2014 Nordson Corporation Connecting Compressed Air Connect dry, clean an d non-lubricated compressed air to the compresse d air connection (1). D irt particles i n th…
1
32
1
Installation
3-6
Part 1121836_03
E 11/2014 Nordson Corporation

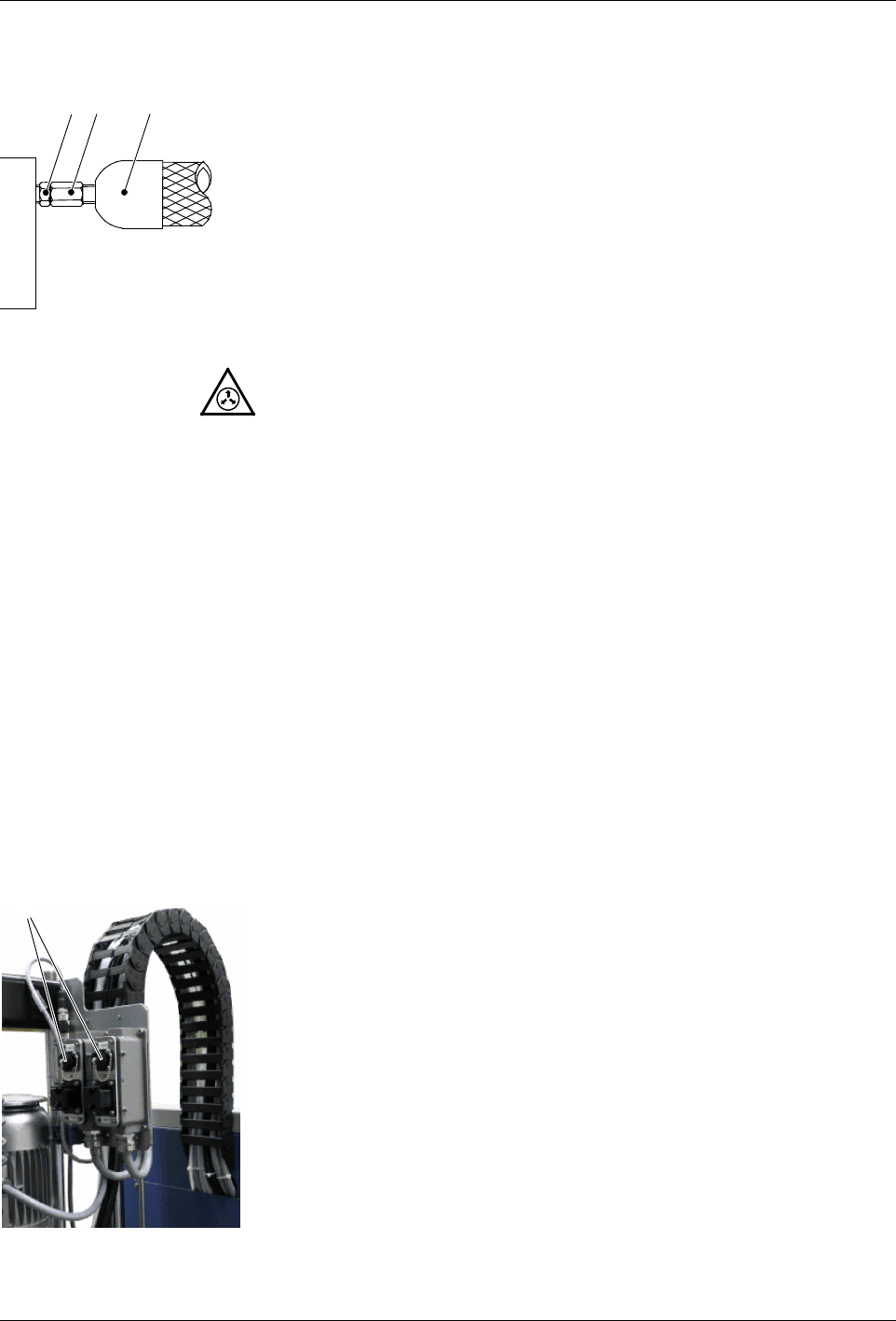

Connecting
If cold material can be found in the hose connection (1), the components
(2, 3) must be heated until the material softens (approx. 70 _C / 158 _F,
depending on material).
1. First connect the hose (3) electrically to the unit.
2. Heat the bulk melter and hose to approx. 70 _C / 158 _F.
3. Secure the hose to the unit.
NOTE: Close unused hose ports with Nordson port plugs.
Disconnecting
WARNING: To prevent serious burns, You MUST relieve the melter
pressure before disconnecting pressurized components, such as hoses, and
applicators/handguns.
Relieving pressure
1. Switch the pump Off.
2. Set selector Raise/lower platen to 0/stop.
3. Place a container under the nozzle(s) of the applicator or handgun
assembly.
4. Applicators/handguns: Activate the solenoid valve(s) electrically or
manually; or, pull the trigger on the handgun. Repeat this procedure until
no more material flows out.
5. Properly dispose of material according to local regulations.
Connecting Assembly Handguns
Connect the assembly handgun switches to receptacles Hose/Applicator 1
and Hose/Applicator 2.
When the assembly handgun is triggered (switch closed), the pump is
switched on.
Pneumatic
plate
Installation
3-7
Part 1121836_03
E 11/2014 Nordson Corporation

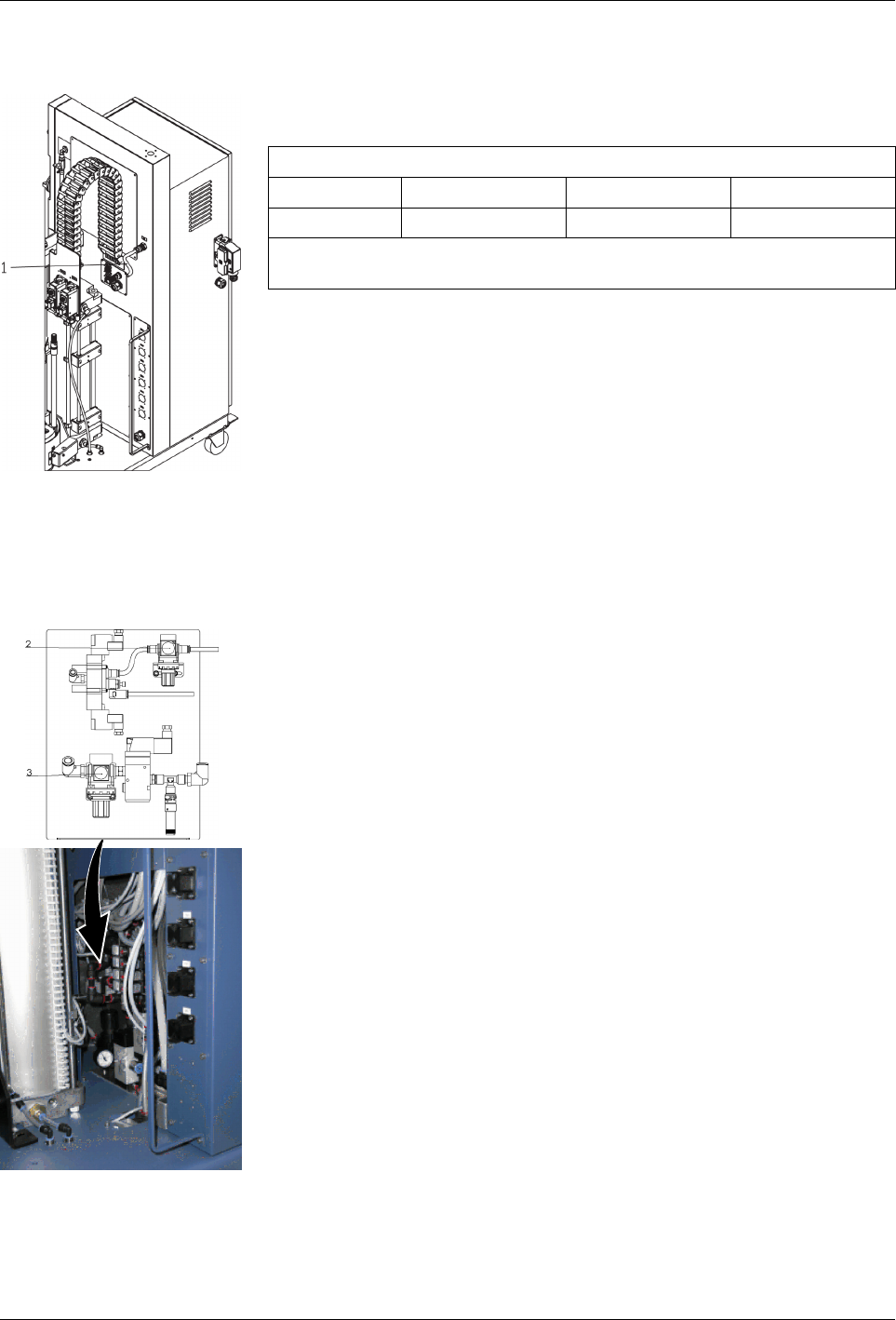

Connecting Compressed Air
Connect dry, clean and non-lubricated compressed air to the compressed air
connection (1). Dirt particles in the air may not exceed 30 m in size.
Air pressure
Min 3 bar 0.3 MPa 43.5 psi
Max 8 bar 0.8 MPa 116 psi
NOTE: A pressure restrictor valve behind the compressed air connection
limits the air pressure to 8 bar / 0.8 MPa / 116 psi
Pneumatic Plate
Also refer to pneumatics diagram.
Pressure Control Valves
CAUTION: Do not change the setting:
S
Raise pneumatic cylinder (2).
NOTE: Default pressure is 1.6 Bar / 0.16 Mpa / 23.2 PSI
S
Aerate container (3):
NOTES:
S
Default pressure is 1 Bar / 0.1 Mpa / 14.5 PSI
S
A lower pressure makes it difficult to raise the platen.
2
1
2mm
Installation
3-8
Part 1121836_03
E 11/2014 Nordson Corporation

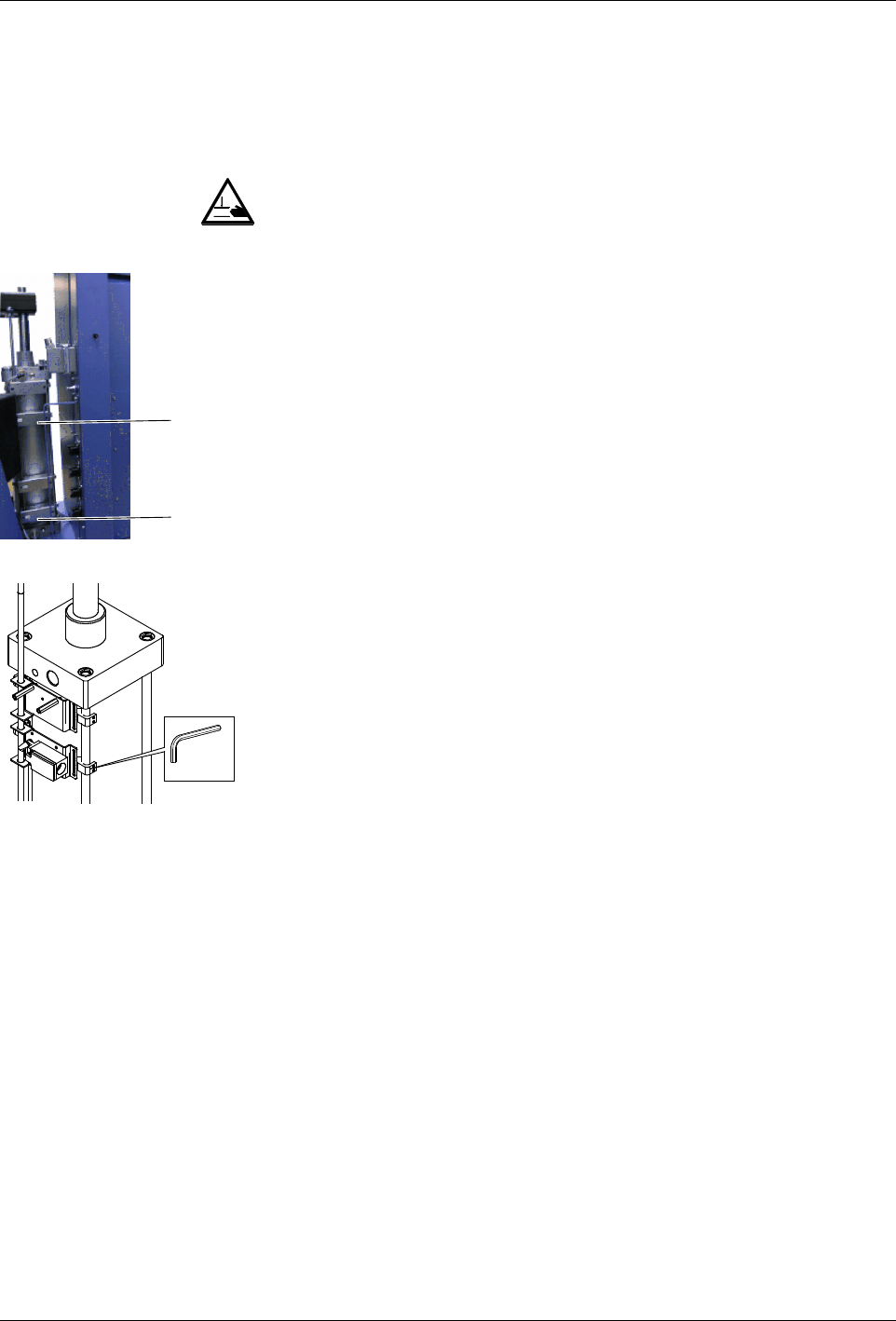

Adapting the Bulk Melter to the Container Used
Platen Position: Adjusting Switches
WARNING: Risk of squash! Make sure that switch 1 is not actuated until the
platen is inside the container.
A switch rod activates the two switches (1 and 2) one after the other,
triggering the following switching functions:
S
Switching functions when lowering:
S
Switches from two-hand lowering mode to normal lowering mode
when the platen sealing ring is completely submerged in the container
(switch 1)
S
Activates the Container empty indication (switch 2).
S
Switching functions when raising:
S
Switches off container aeration (switch 1).
