About the Touch Screen Display and User Interface
5-12
Part 1121836_03
E 11/2014 Nordson Corporation

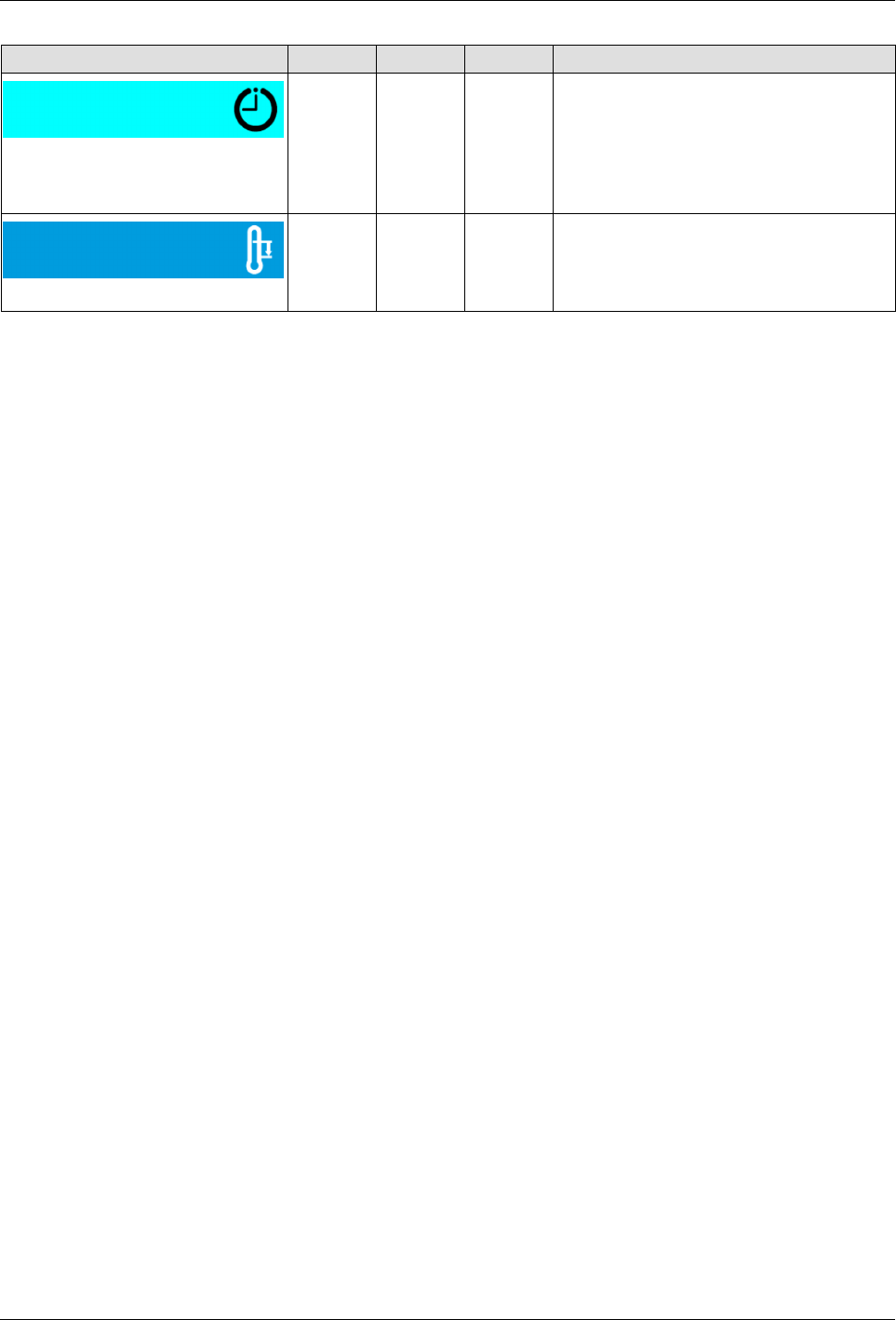

Button Color Heaters Pumps Description
System Status:
Ready Delay
Light
Blue
On Off Although all available and enabled
zones are at their set point
temperatures, the Ready\OK is
delayed until the user-defined time has
elapsed.
System Status:
Standby Mode
Blue On Off The system has been manually or
automatically placed into Standby
mode.
About the Touch Screen Display and User Interface
5-13
Part 1121836_03
E 11/2014 Nordson Corporation
Internal Zone - The Platen
The platen is a heated flat plate used to the melt the solid adhesive within the
container. While in production, the heated platen automatically lowers itself,
keeping contact with the solid adhesive in the container.
Pump: On
Heaters:On
Password: Disabled
Platen
System Status:
Ready/OK
Platen
176_C
176_C
Pump
GTL
32 RPM
Zone 1A
Pump: On
Heaters: On
Password: Disabled
Recipes:
Nothing Loaded
176_C
Zone 1B
176_C
Zone 2A
176_C
Zone 2B
Master
Controls
From the Home screen, you can view the state and status of the platen.
Touch the Platen button to do the following tasks:
S
Enable/Disable the Platen
S
Modify the Platen set point temperature
Notes:
S
Refer to Tables 5-1 and 5-2 for a detailed list and explanation of each
zone state and status.
S
Refer to Inserting and Replacing Containers for more information.
S
You cannot rename the Platen button.
S
A sensor is triggered, causing an warning message to appear, and for the
melter status indicator to display the following message/graphic.
System Status:
Ready Low Level
If you do not replace the container
within a predefined time (the default is 0 seconds), the warning is
upgraded to a fault. The pump stops running. Although the heaters
remain on, the zones cool to their Standby temperatures.
About the Touch Screen Display and User Interface
5-14
Part 1121836_03
E 11/2014 Nordson Corporation
The Pump
From the Home screen, you can view the state and status of the pump.
Pump
System Status:
Ready/OK
Platen
176_C
176_C
Pump
GTL
32 RPM
Zone 1A
Pump: On
Heaters: On
Password: Disabled
Recipes:
Nothing Loaded
176_C
Zone 1B
176_C
Zone 2A
176_C
Zone 2B
Master
Controls
Touch the Pump button to do the following tasks:
S
Enable\disable
S
Define Manual or Gear-to-Line pump operation mode
S
Manually define pump speed, or define Gear-to-Line settings
S
Access the following Advanced settings:
S
Enable\disable the Auto Pump feature
S
Define Pump Off Delay Settings when using hand applicators
S
Define the Container Low to Empty settings (Advanced)
NOTE: Figure 5-4 details what an enabled pump displays. Refer to Tables
5-3 for a detailed list and explanation of each pump state and status.
Real-time pump speed
Operation Mode
Pump
45 RPM
Manual
Figure 5-4 Pump button details
