Parts 1 1 -26 Part 1121836_03 E 1 1/2014 Nordson Corporation Item Part Description Quantity Page Melter 1 ------ INTALL PANEL,PNEUMATIC 1 2 7403910 SOLENOID VALVE,3/5WAYS 1 3 7403915 REGULATO R,0-1.0MPA,1/4" P ORT, …

Parts

11-25

Part 1121836_03

E 11/2014 Nordson Corporation

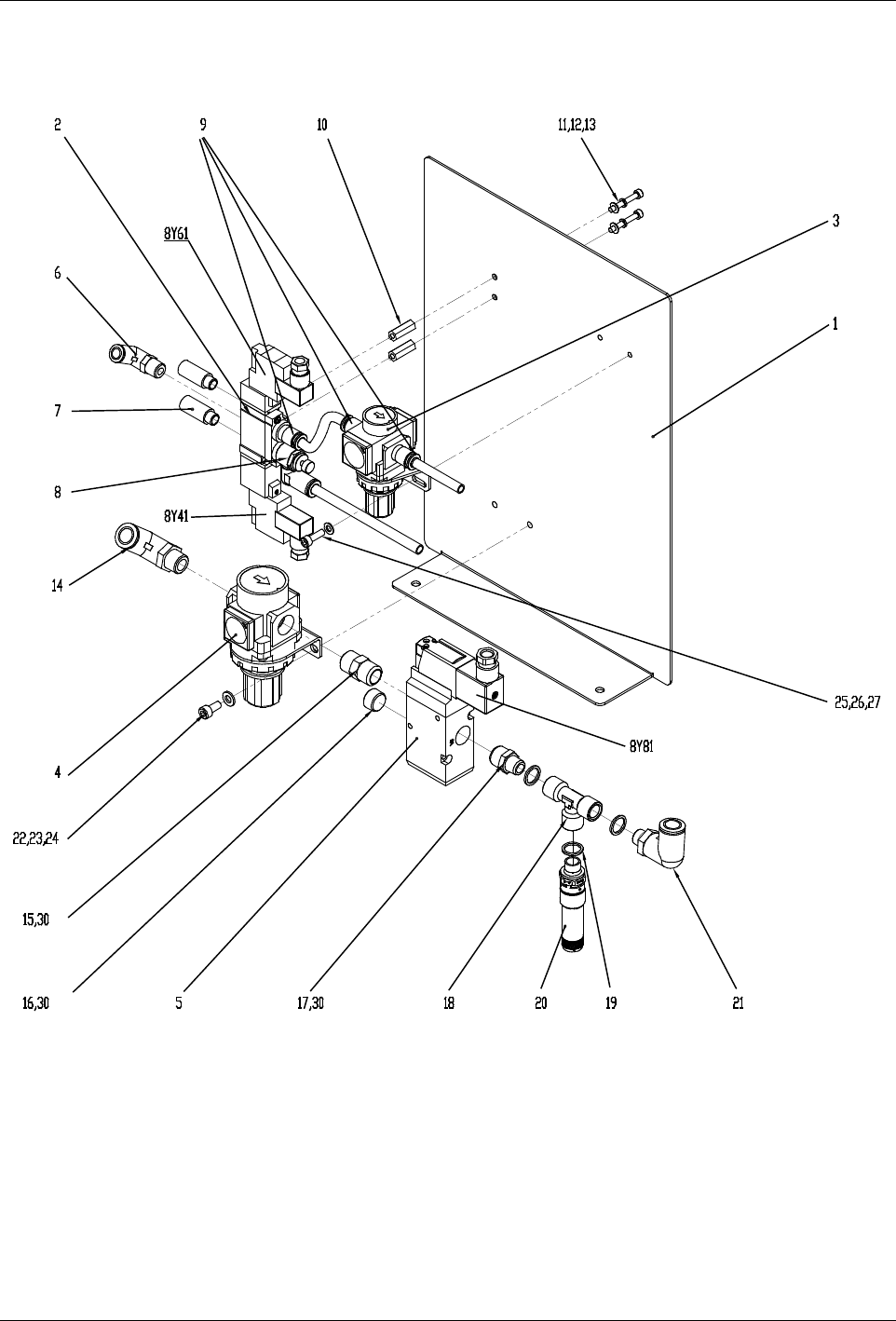

Pneumatic Panel - Pneumatic Component Designation

Figure 11-15

Parts

11-26

Part 1121836_03

E 11/2014 Nordson Corporation

Item Part Description Quantity Page Melter

1 ------ INTALL PANEL,PNEUMATIC 1

2 7403910 SOLENOID VALVE,3/5WAYS 1

3 7403915 REGULATOR,0-1.0MPA,1/4" PORT, W/GAUGE 1

4 7403912 REGULATOR,0-1.0MPA,3/8" PORT, W/GAUGE 1

5 7403911 SOLENOID VALVE,2/3WAYS 1

6 ------ ELBOW, 8MM X 1/4", BR-PVC 1

7 ------ SILENCER,R1/8 2

8 7403914 SPEED CONTROL VALVE,R1/4,D8 1

9 ------ FITTING,PUSH IN,MALE,QS-1/4-8-I 3

10 ------ SPACER,8mmHEX,M5X22mmLG,STL,THRU THD. 2

11 ------ SCR,SKT,M4X30,BL 2

12 ------ WASHER, FLT, M4, ZP 2

13 ------ WASHER,LK,M,SPT,M4,STL,ZN 2

14 ------ ELBOW,12MM X 3/8",BR - PVC 1

15 ------ NIPPLE,ZG3/8",MALE - ZG3/8",MALE,SS 1

16 ------ PLUG,HEX SOCKET,3/8" 1

17 ------ NIPPLE,ZG3/8",MALE - ZG1/4",MALE,SS 1

18 ------ T-piece 3xiRp1/4 1

19 ------ sealing ring R1/4 type:PDR-14 3

20 785733 safety valve 1,0bar 1/4 1

21 ------ PUSH IN FITTING,QSL-1/4-12 1

22 ------ SCR,HEX,M6X12,STL,ZN,GR8.8,GB5783-2000 2

23 ------ WASHER,LK,M,INT,M6,STL,ZN 2

24 ------ WASHER,FLT,M,REG,M6,STL,ZN 2

25 ------ SCR,SKT,M5X16,BL 2

26 ------ WASHER,FLT,M,REG,5,STL,ZN 2

27 ------ WASHER,LK,M,SPT,M4,STL,ZN 2

28 ------ air-operated hose D8,0 d6,0 PU blue

Parts

11-27

Part 1121836_03

E 11/2014 Nordson Corporation

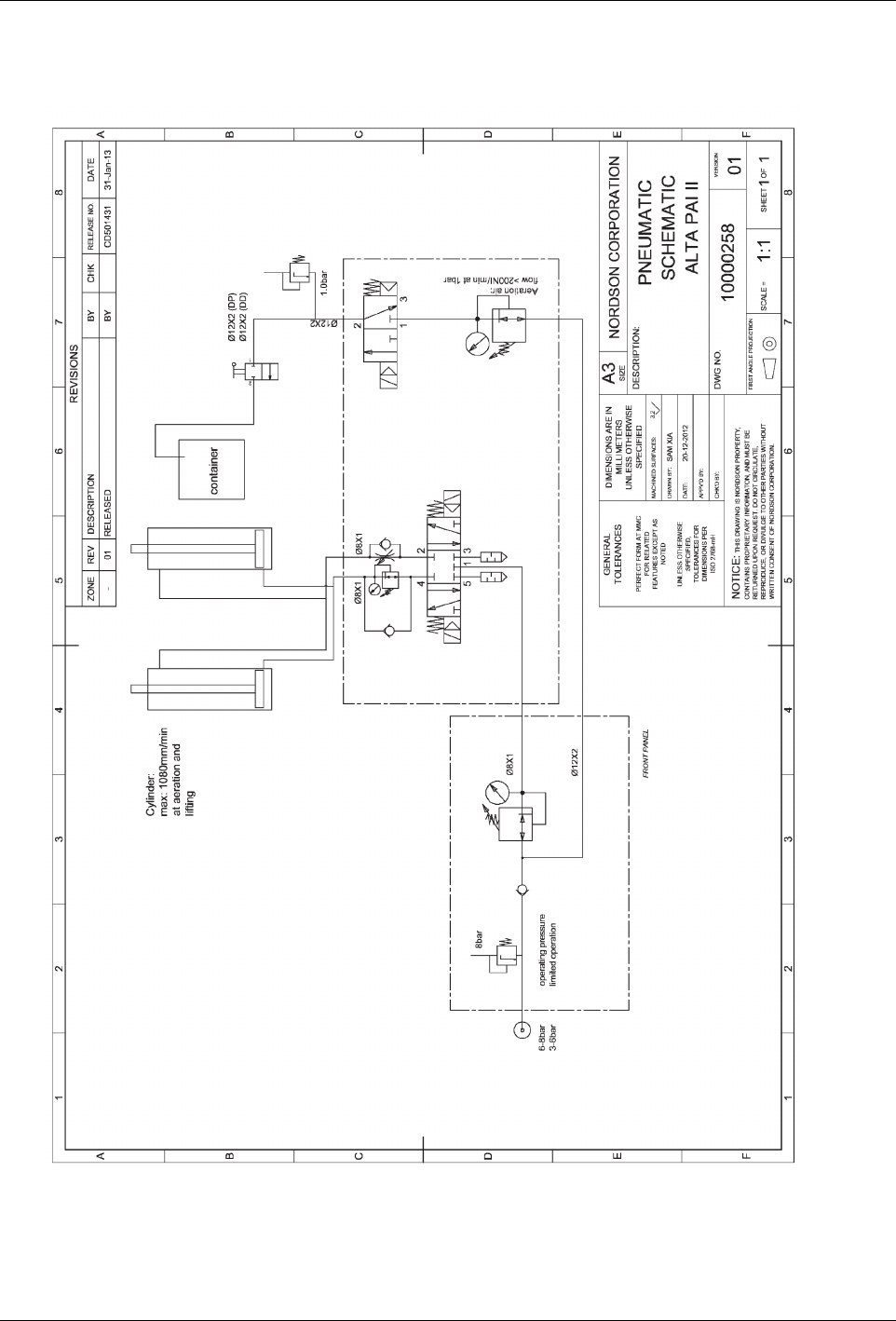

Pneumatic Schematic

Figure 11-16 Based on 7140614
