Basic Software Melter Configuration
6-16
Part 1121836_03
E 11/2014 Nordson Corporation
Adjusting Pump Speed (RPM)
You can adjust the speed (RPM) of the pump whether it is configured for
Manual or Gear-to-Line pump operation.
1. Access the Home screen, then touch the Pump.
2. Touch Adjust Speed and enter the required information.
S
Refer to Figure 6-4
S
Refer to Figure 6-5
3. Touch Done.
Pump
Done
Pump: On
Adjust Speed
Pump Control
Operation Mode
85 RPM
Advanced
MAN
Done
Cancel
%
7 8 9
4 5 6
1 2 3
0
Pump 1\ Gear-to-Line
100
% Line Speed
Desired Pump RPM
Min Pump Speed
RPM
RPM
94
0
Home
Figure 6-4 Configuring and adjusting Gear-to-Line mode
Basic Software Melter Configuration
6-17
Part 1121836_03
E 11/2014 Nordson Corporation
Pump
Done
Adjust Speed
Pump Control
85 RPM
Advanced
Pump: On
Operation Mode
MAN
Done
Cancel
7 8 9
4 5 6
1 2 3
0
Pump 1\ Pump Speed (RPM)
0
Home
RPM
Figure 6-5 Configuring and adjusting Manual mode
Advanced Software Melter Configuration
7-1
Part 1121836_03
E 11/2014 Nordson Corporation
Section 7
Advanced Software Melter Configuration
WARNING! Allow only qualified personnel to perform the following tasks.
Follow the safety instructions in this document and all other related
documentation.
Overview
The melter is shipped from the factory with most temperature, pump and
melter (system) settings pre-configured and ready to use. However, there are
some settings that you must configure and fine-tune to best fit your
manufacturing process.

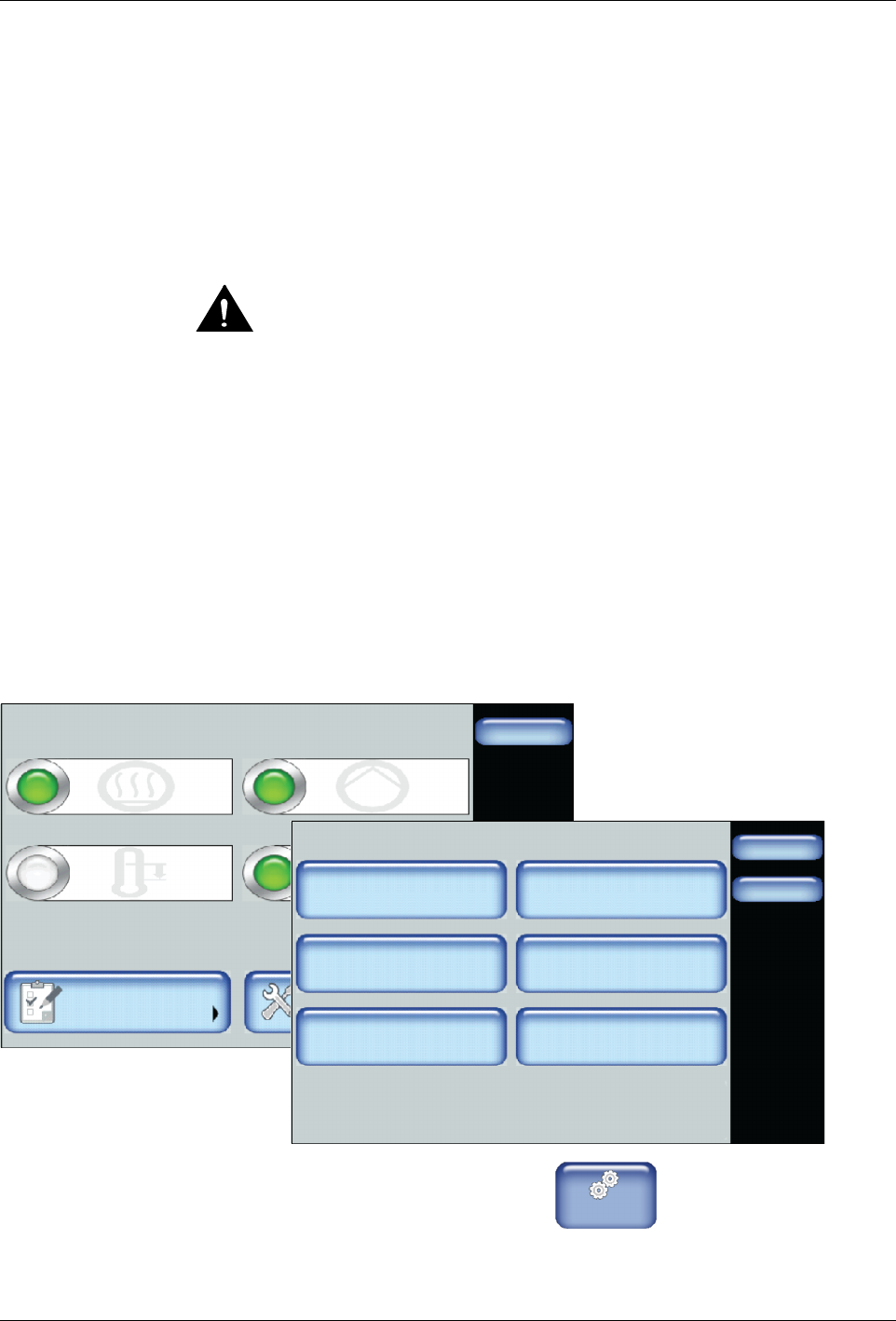

Accessing the Settings Screen
Done
Scheduler
Pump ControlHeater Control
Standby
Settings System
Master Controls
Scheduler: Off
Pump: OnHeaters: On
Standby: Off
Settings
Done
Home
Temperature
Input
Ready Delay
Standby
Output Pump
S
From the Home Display touch
Master
Controls
then touch Settings.
