About the Touch Screen Display and User Interface
5-13
Part 1121836_03
E 11/2014 Nordson Corporation
Internal Zone - The Platen
The platen is a heated flat plate used to the melt the solid adhesive within the
container. While in production, the heated platen automatically lowers itself,
keeping contact with the solid adhesive in the container.
Pump: On
Heaters:On
Password: Disabled
Platen
System Status:
Ready/OK
Platen
176_C
176_C
Pump
GTL
32 RPM
Zone 1A
Pump: On
Heaters: On
Password: Disabled
Recipes:
Nothing Loaded
176_C
Zone 1B
176_C
Zone 2A
176_C
Zone 2B
Master
Controls

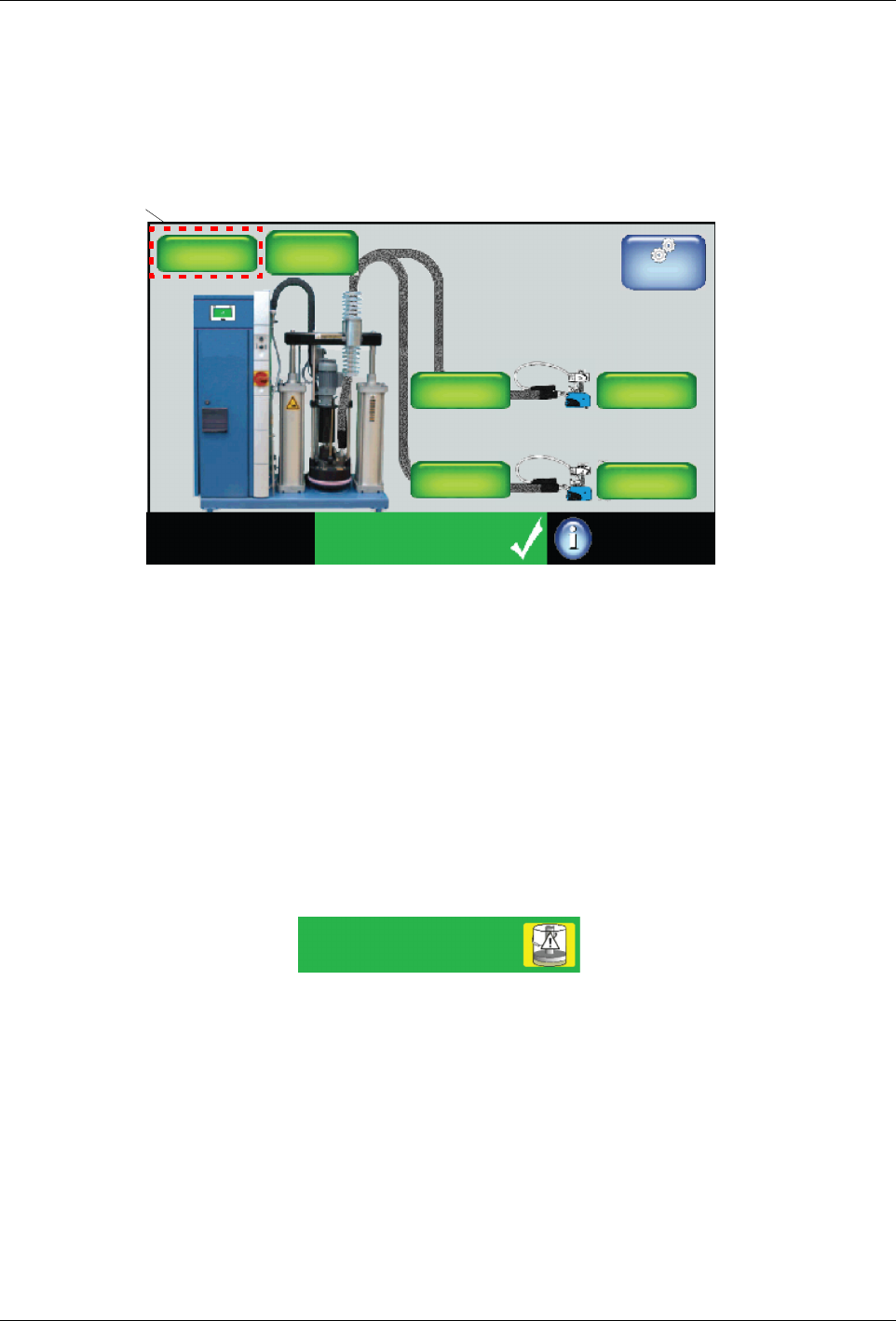

From the Home screen, you can view the state and status of the platen.
Touch the Platen button to do the following tasks:
S
Enable/Disable the Platen
S
Modify the Platen set point temperature
Notes:
S
Refer to Tables 5-1 and 5-2 for a detailed list and explanation of each
zone state and status.
S
Refer to Inserting and Replacing Containers for more information.
S
You cannot rename the Platen button.
S
A sensor is triggered, causing an warning message to appear, and for the
melter status indicator to display the following message/graphic.
System Status:
Ready Low Level
If you do not replace the container
within a predefined time (the default is 0 seconds), the warning is
upgraded to a fault. The pump stops running. Although the heaters
remain on, the zones cool to their Standby temperatures.
About the Touch Screen Display and User Interface
5-14
Part 1121836_03
E 11/2014 Nordson Corporation
The Pump
From the Home screen, you can view the state and status of the pump.
Pump
System Status:
Ready/OK
Platen
176_C
176_C
Pump
GTL
32 RPM
Zone 1A
Pump: On
Heaters: On
Password: Disabled
Recipes:
Nothing Loaded
176_C
Zone 1B
176_C
Zone 2A
176_C
Zone 2B
Master
Controls
Touch the Pump button to do the following tasks:
S
Enable\disable
S
Define Manual or Gear-to-Line pump operation mode
S
Manually define pump speed, or define Gear-to-Line settings
S
Access the following Advanced settings:
S
Enable\disable the Auto Pump feature
S
Define Pump Off Delay Settings when using hand applicators
S
Define the Container Low to Empty settings (Advanced)
NOTE: Figure 5-4 details what an enabled pump displays. Refer to Tables
5-3 for a detailed list and explanation of each pump state and status.
Real-time pump speed
Operation Mode
Pump
45 RPM
Manual
Figure 5-4 Pump button details
About the Touch Screen Display and User Interface
5-15
Part 1121836_03
E 11/2014 Nordson Corporation
What the Pump Statuses Indicate
The following table details the pump status messages.
Table 5-3 Pump State Color Reference
Pump States
Button Color State Notes
Disabled
Pump
White Disabled The pump is available, but disabled.
Pump
Unavailable
Gray Unavailable The system cannot detect the pump.
Pump Status
Button Color State Notes
Pump
Manual
24 RPM
Dark green Ready/OK The pump is enabled and has reached its set point speed.
Pump
Manual
24 RPM
Light green Waiting for
Ready
The pump is enabled and…
S
is waiting for the melter to reach its Ready/OK status
before you can manually switch On the master Pump
Control.
S
Auto Pump is enabled and is waiting for the melter to
reach its Ready/OK status before automatically
switching On the Master Pump Control.
S
The system is in either Standby or Ready Delay mode.
S
A zone or pump is in an alert or fault condition.
S
The system itself is in an alert or fault condition.
Pump
Alert
Yellow Alert The pump is enabled, but the system has detected an
alert condition. Touch the pump with the alert to view
system message.
NOTE: In an alert condition, both the master Heater
and Pump controls remain On.
Fault
Pump
Red Fault The Pump is enabled, but the system has detected a fault
condition. Touch the pump with the alert to view system
message.
NOTE: In a fault condition, both the master Heater
and Pump controls are switched Off.
