Parts 1 1 -31 Part 1121836_03 E 1 1/2014 Nordson Corporation Electrical Enclosure panel Assemblies Back Panel Closed Back Vie w Open Status Figure 11-19
Parts
11-30
Part 1121836_03
E 11/2014 Nordson Corporation
Item Part Description Quantity Note Melter
7S21
7S31
7126179 push-button black M22-DH-S 1
460768 mounting adapter type:M22-A 1
460769 contact block type:M22CK10 1
460770 contact block type:M22CK01 1
8S61
207585 selector switch type:M22-WRLK3-G 1
460768 Mounting adapter type:M22-A 1
460769 contact block type:M22CK10 3
460770 Contact block type:M22CK01 2
1Q1 253639 Main switch 3x32A / red/yellow 1
Parts
11-31
Part 1121836_03
E 11/2014 Nordson Corporation

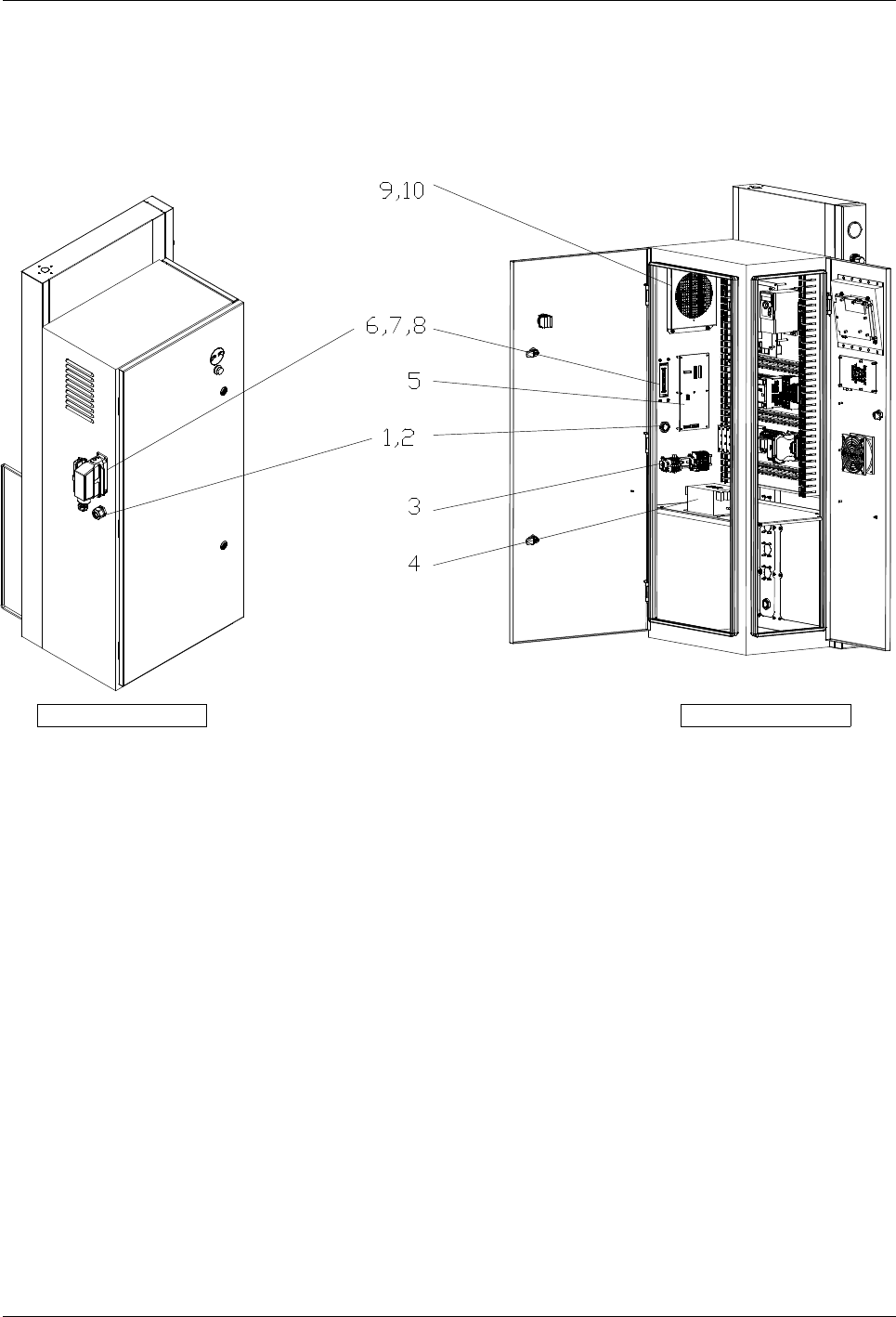

Electrical Enclosure panel Assemblies
Back Panel
Closed Back View Open Status
Figure 11-19
Parts
11-32
Part 1121836_03
E 11/2014 Nordson Corporation
Item Part Description Quantity Note
Melter
1 7403833 STRAIN RELIEF,CABLE,M25x1,5,PA,BLACK 1
2 7403834 NUT,CABLE GLANDE,M25x1,5,BLACK 2
3 ------ TEMINAL BLOCK 1
4
7403803 MAIN FILTER,440VAC,36A,3P+N+PE 1 7407039
7407040
7407041
7407042
7407664
7407665
7407666
7407667
7407682 MAIN FILTER,480VAC,30A,3P+PE 1 7407668
7407669
7407670
7407671
5 1031201 SVCE KIT,DURABLUE,EXPANSION PCA 1
6 7403798 CONNECTOR,SOCKET,24 PIN,W/COVER 1
7 7403799 CONNECTOR,INSERT,24 PIN,MALE 1
8 7403800 CONNECTOR PLUG,24 PIN,3 IN 1 1
9 ------ PANEL,COVER,FILTER 1
10 7401321 SERVICE KIT,FILTER,FAN,ELECT.CAB 1
